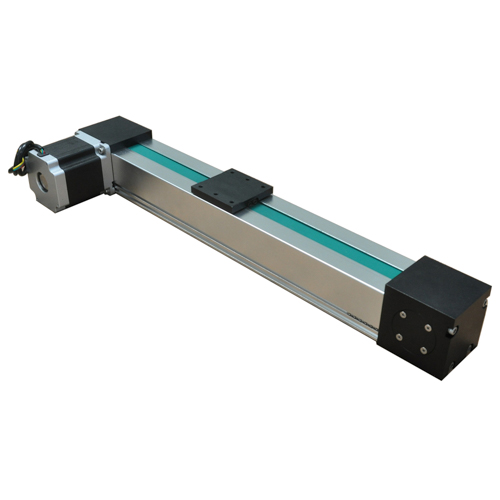

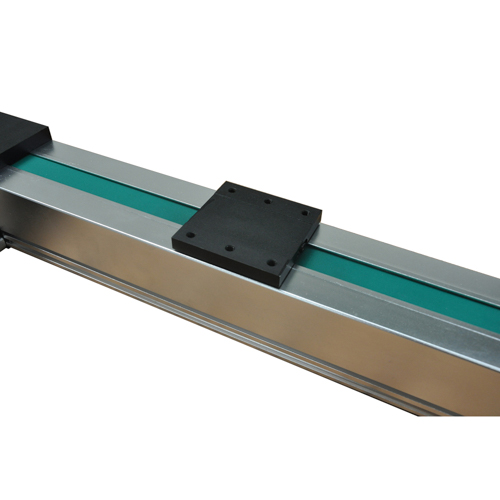

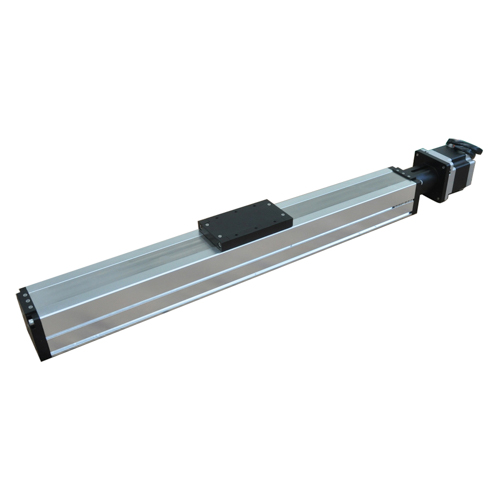

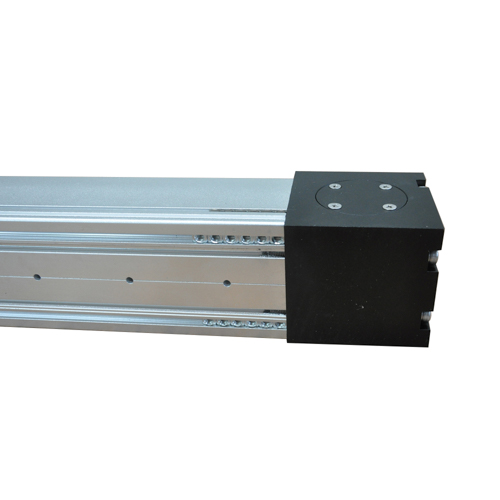

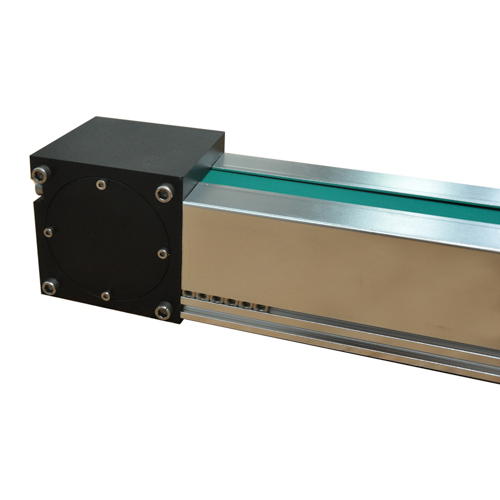

Belt Driven Linear Guide

Product in stock

Price

$0.00

Loading Updating cart...

Belt Driven Linear Guide

Product Description

General Parameters

Pls email us for the price

Stroke500~3000mm

Belt model.HTD-5M

Repeatibility±1mm

Profile Width80mm

Moving Speed0~1300mm/s

Position accuracy: ±1mm

Horizontal Load0~40kg

Profile size: 80mm x 70

Type of belt: HTD-5M

Stroke length L [mm]: 500 - 3000mm

Overall length [mm] L+272

Overall height [mm] 86

NEMA34 Motor Parameters

Number of phases: 3

Flange Size: NEMA34

Motor Length: 98mm

Holding Torque: 5 N.m

Current: 3 Amps

Number of leads: 3

Weight: 2.8kg
