2200W (3HP) Air Cooling CNC Milling Spindle ( Round)
Sale!

2200W (3HP) Air Cooling CNC Milling Spindle ( Round)

Product in stock

Price

$329.00 $287.00

You save: $42.00! (12.77%)

Loading Updating cart...

2200W (3HP) Air Cooling CNC Milling Spindle ( Round)

Product Description

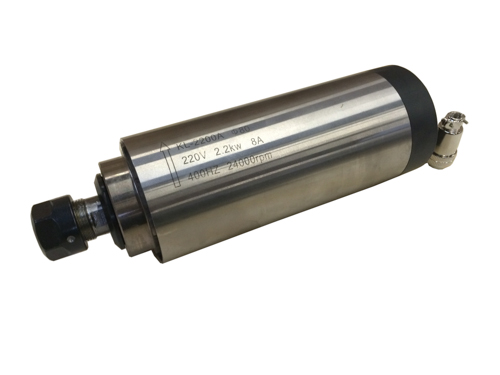

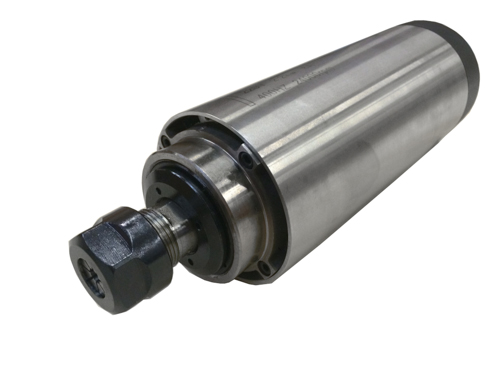

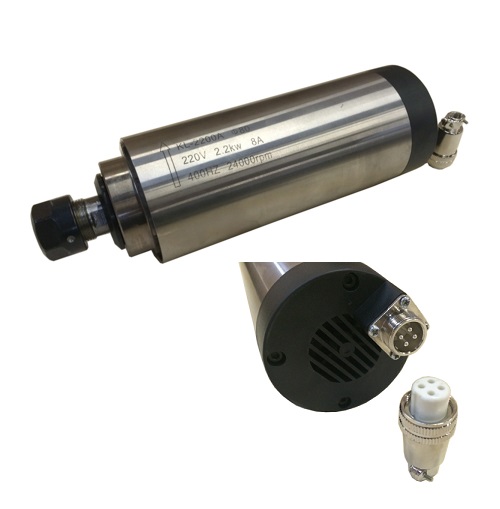

2.2KW AIR-COOLING HIGH SPEED HIGH PRECISION SPINDLE

NUMERICAL ENGRAVING/GRINDING/MILLING

FOUR BEARING

OD=80 mm

Length =215 mm

Input Voltage: 220V  Single Phase or 3 Phase

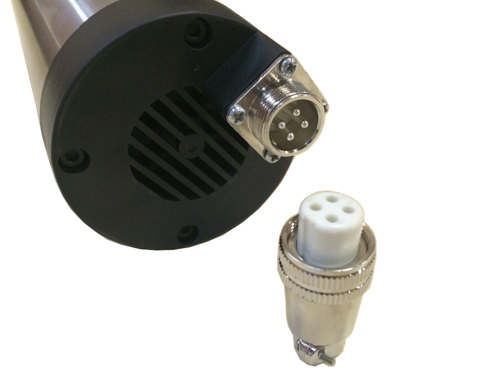

Output:  U,V, W, 1 to  U,  2 to V, 3 to W

Speed: 8000-24000 R/min

Power: 2200 W (3HP),

Frequency: 400 Hz

Air Cooling,

ER20 collet chuck.

Grease Lubrication,

Runout off: less than 0.005mm

1 to  U,  2 to V, 3 to W

weight: 12 ibs

Use this VFD:

2.2KW (3HP) VFD for Spindle (KL-VFD22) 220VAC Input

Manuals & Downloads

KL-2200A Datasheet (263 downloads)

KL-2200A Torque Curve (174 downloads)

KL-2200A 3D File (150 downloads)

Is your spindle running the right direction, if the fan is going the wrong way it will not cool the spindle correctly
