2.2KW (3HP) VFD for Spindle (KL-VFD22) 220VAC Input

Product in stock

Price

$159.00

Loading Updating cart...

2.2KW (3HP) VFD for Spindle (KL-VFD22) 220VAC Input

Product Description



Product Specification:

Input: 220VAC ±15%  1 or 3 Phase (R,S or R, T or S,T)    50/60Hz

Output: 220VAC 3 Phase (U,V,W)   2.2Kw

(U,V,W) Frequency Range: 0.1-400Hz

0-10V Analog interface capability

Variable speed

PD000=0 for Parameter unlock ( 1 ) for Parameter Lock

PD001=0 (1 For Remote Control)

PD002=0 ( 1 For 0-10v Terminal Control or Remote Trim Pot Control )

( J1 Also Needs to be set for Terminal Control)

PD003=400

PD004=400

PD005=400

PD007=20

PD008=220 (Motor Rated Voltage, If you have 120v spindle then set to 120v )

PD009=15

PD010=8

PD011=120 ( 100 Minimum Setting with Quality VFD, 120 is Safe)

PD13= 08 is for Factory reset, Only use this to set VFD to Factory Default SettingsPD014

Acceleration = 12 ( Adjust to suit)

PD015 Deceleration=12 (Adjust to suit) ( PD15 is ignored IF PD26=1 Then the Spindle will

Coast to a Stop)

PD141=220 ( Motor Rated Voltage ) (120 for VFD Rated for 120v )

PD142= ( Motor Max Amps) PD142=( 220vSet for your motor Amp Rating 2.2Kw Spindle

9 amp )

PD142=( 220VSet for your motor Amp Rating 1.5Kw Spindle 7 amp )

PD142=( 220v Set for your motor Amps Rating 800w Spindle 4 amps )

PD142=( 120v Set for your motor Amp Rating 800w Spindle 7 amp )

PD143=2 ( Motor Number of Poles)

PD144=3000 (Max Motor RPM) =3,000= (24,000)

PD70=0 ( This may need to be set to 1 if Control Voltage is 0-5v )

PD72=400

PD73=120 ( 100 Minimum Setting )

If you have E. Lv. S error code alarm

Pls set

PD200=65535

PD209=70

Weight: 3.3IBs

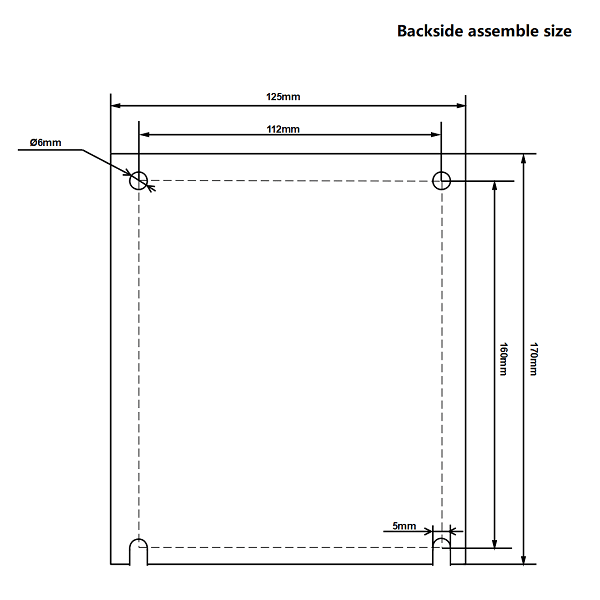

Width 5" X Length 6.75" Height: 6.375"

Manuals & Downloads

VFD User Manual (2213 downloads)
