Product Description

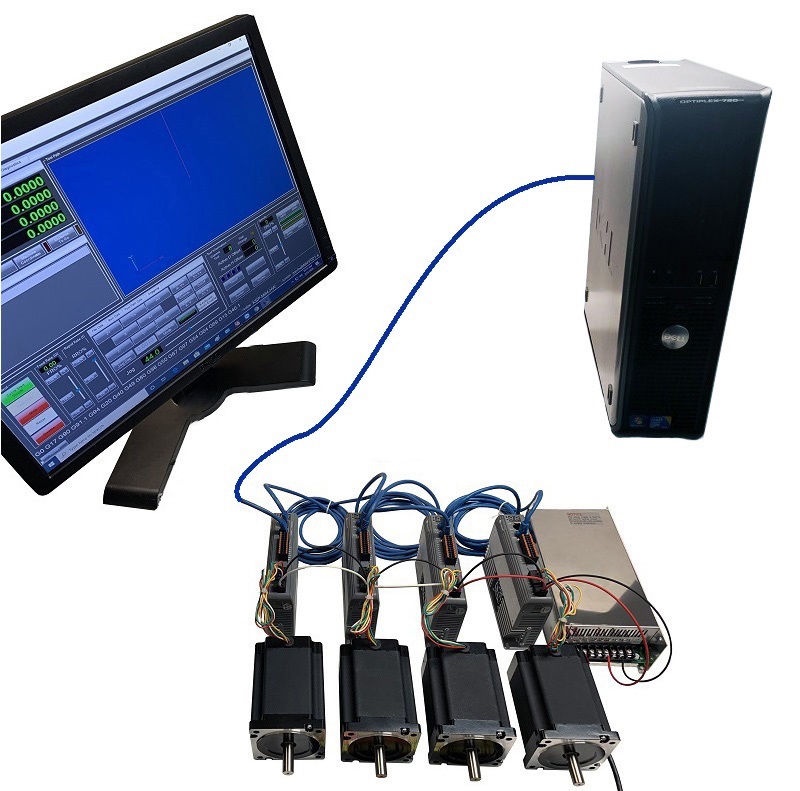

4 Axis EtherCAT NEMA34 CNC Control System with Mach4

We worked with Newfangled Solutions and KINGSTAR, built this new CNC EtherCAT Motion Control System. It is fully Pre-Wired, tested and configured with Computer. So you do not need any Breakout Board, Ethernet board. You do not need to wire them any more.

Following items are included:

-- 1 Pcs Rebuilt Computer with 19 inch Monitor: 8GB of RAM,  500 GB Hard Drive, Windows 10 Pro x64

-- 1 Pcs Mach4 CNC EtherCAT Software, License is included( You can choose different Mach4 Screen) from Artsoft software

-- 1 Pcs Kingstar’s RTX64 Runtime License and KINGSTAR EtherCAT License is included ( You do not need any Breakout Board, Ethernet board any more) from KINGSTAR

• Kingstar SoftMotion

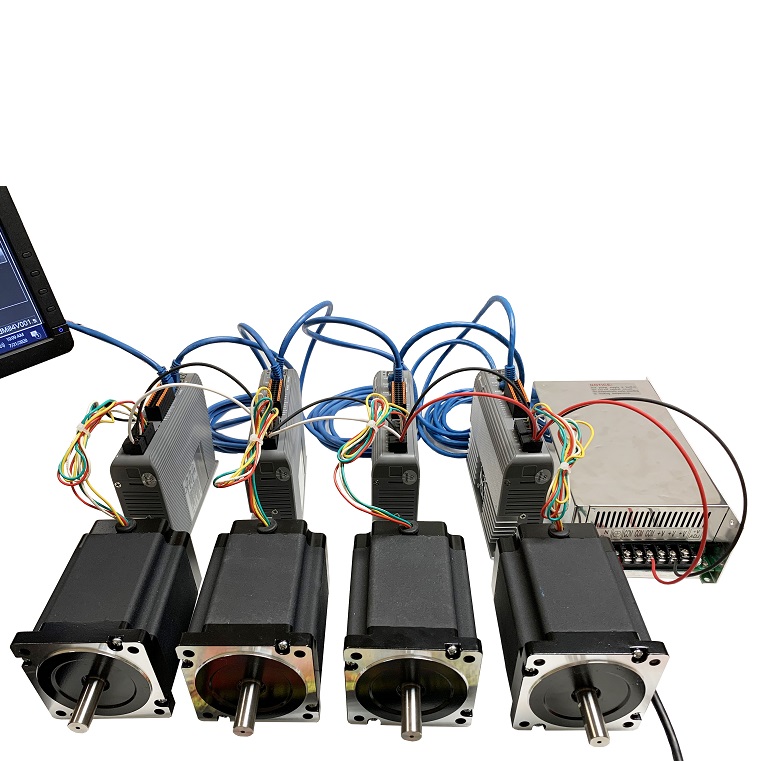

-- 4 Pcs EtherCAT Stepper Driver KL-8082E-C

• EtherCAT KL-8082E-C

-- 4 Pcs NEMA34 Stepper Motor 1200 oz/in 6A  KL34H2120-60-4A

• KL34H2120-60-4A

– 1Pcs 48VDC/20A Switching CNC Power Supply

48V/20A Switching CNC Power Supply (KL-1000-48)

We can change from 1.5-meter cable to other Length as you need

XML File for EM3E Series Driver (435 downloads)
