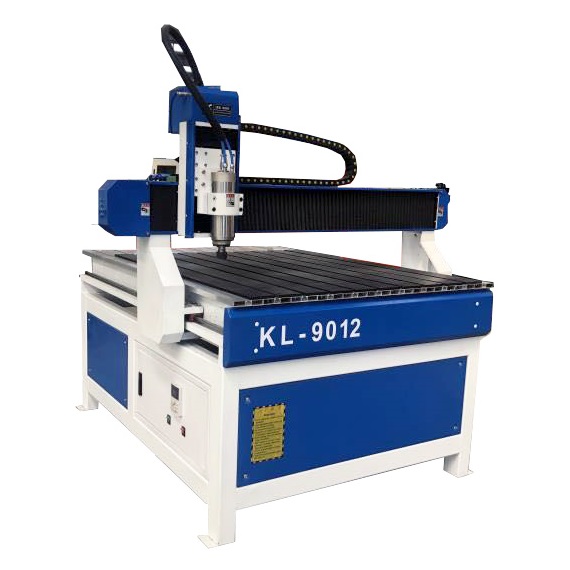

KL-9012 36″ x 48 ” CNC Router with Spindle and Relay Control,

UC100 USB Control, Controller is under the table

Voltage: AC220V

Certification: CE

Travel (X Axis)(mm): 900 mm (36″)

Travel (Y Axis)(mm): 1200 mm (48 ” )

Table Size(mm):

900mm x 1200mm (36″ x 48 ” )

Working Area:

900*1200* 200 mm (36″ x 48" x 6” )

Resolution: about 0.05 mm (X, Y, Z)

Repeatability: 0.02 mm

It has the ball screw, and shaft support

Gantry:

Cast aluminum

Structure:

Cast iron

Max velocity:

8m/min

Max Working Speed:

6m/min

NEMA 34 Stepper Motor and Driver, 495 oz-in

2.2KW Water Cooled Spindle speed:

8000-24000 rmp

Single Gross Weight:

300.0 kg

Package Type: Packaging Details: Wooden case

Weight (KG): 350 ( 770 IBS)

Wood Packing Dimension: 80" x 66" x 57"You can run the router at

110VAC with a step-up transformer, it is not included

• 3000 WATT VOLTAGE CONVERTER TRANSFORMER

1: If you need us to help you to set up the machine, do Mach3 Training, add the training fee: $200 we will use using the TeamViewer

• Click here for Setup Service

Mach3 training Video

2: if you need a MPG,  check here

• Mach3 Wireless MPG

3: if you need a mach3 license and Computer , check here

I5 CNC Computer with 19" monitor, Refurbished

• Mach3 license

Start Up Procedure:

KL-Series CNC Manual (5102 downloads)

KL-6090wiring (2255 downloads)

You can add mach3, Mach4 or Computer

Fully Licensed Mach3 (Authorized), Email you license file

Fully Licensed versions of Mach4, Email you the license.

I5 CNC Computer with 19" monitor, Refurbished
