Industrial Fiber Laser Engraver, Fiber Marking Machine, We use all authentic parts

Product in stock

Price

from $2,999.00

Loading Updating cart...

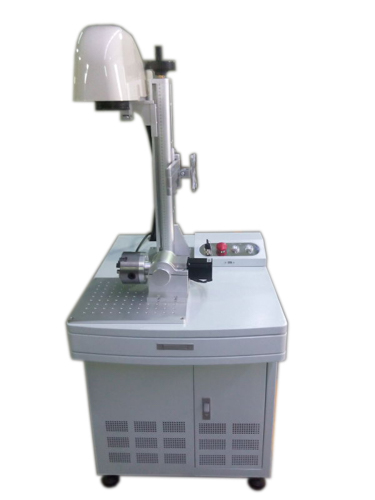

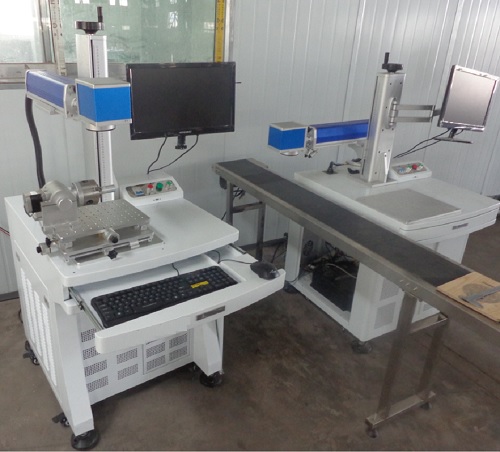

Industrial Fiber Laser Engraver, Fiber Marking Machine, We use all authentic parts

Product Description



We use all authentic parts

Software are all included works on 32bits or 64 Bits Computer

Fiber Laser Machine: 200mm x 200mm area

The machine come with a user-friendly software. It is compatible to CorelDraw, AutoCad, and Photoshop if you need handle more complicated art work. It's an excellent candidate for bar code printing and stainless steel engraving.

(1):Raycus fiber laser module, life time is more than 100,000 hours for 30W and 50W fiber laser Machine, 200*200mm

 (2):Scanning Mirrors;

(3):NORTH-SMITH field lens from America;

(4):Control system: JСZ, software: EzCad, WinXP, Win7, Win 8 , Win 10 , 32 or 64 bits

Systems are supported;

(5): Easy-focusing device;

(6): Air Cooling;

(7) if you need 300*300mm working area, we can make it for you too by changing field lens

Machine Size: 60x 22 x 52cm

Package Size: 91x83x163 cm

Net Weight: 65 kg around

Gross Weight: 85kgs

 Main specification:

Laser Source Fiber Laser,  Raycus
Output Power  30W, 50W
Wavelength 1060nm
Beam Quality < 2
Repeat Frequency 10khz--- 100khz
Pulse Energy 2 mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution 18μ
Repeatability 50μ
Marking Scope 150*150mm
Linear Speed 800 character/ s
Marking Linear Speed 12,000mm/s
Marking Depth 0.01 to 0.5mm according material
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy ±0.003mm
Input Power 0.5kw
Electrical Source 110V 50/60Hz /4A

Fiber Laser Software & Manual:

Fiber Laser Software Manual (866 downloads)

Ezcad software

Downloads:

Fiber Marking Machine Wiring Diagram (311 downloads)

Raycus Fiber Laser Manual (273 downloads)

20W-50W Fiber Laser Engrave Parameters (328 downloads)

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts, Plastic & Paper Materials, The Electron, Hardware which with high request for depth, smooth, accuracy such as horologe, Mould, bitmap marking etc.

if you need a Rotary Device, add $500

Fiber Marking Machine Rotational Device
