PM-30MV Mounting Kit With DOUBLE BALL NUT

Product not in stock

Price

$979.00

This product has sold out.

PM-30MV Mounting Kit With DOUBLE BALL NUT

Product Description

PM-30MV Mounting Kit With DOUBLE BALL NUT

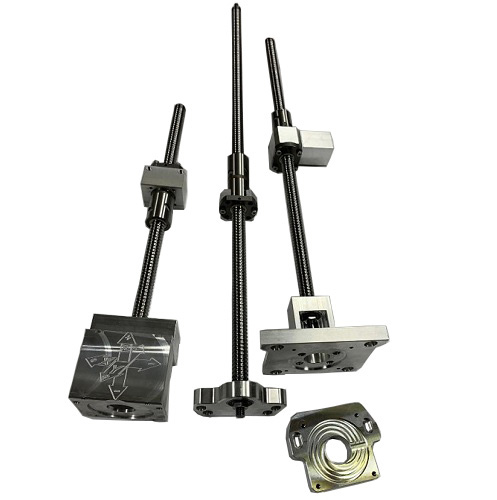

This kit includes:

3 ball screws. 20mm X 5mm pitch

3 ball nuts. Preloaded for minimal backlash.

X axis motor mount for Nema 34 motor, 1/2" coupling

X axis ball nut block and bearing block

Y motor mount for Nema 34 motor, 1/2" coupling

Y axis ball nut block

X, Y Stepper Motor

NEMA34 Stepper Motor–1200oz/in 6A Single Shaft (KL34H2120-42-8A )with key

Z motor mount for Nema 34 motor, 1/2" coupling

Z  axis ball nut block & bearing block

Z Stepper Motor

NEMA34 1805oz/in 8.8A Stepper Motor (KL34H2160-62-8A with key)

Zero backlash helical couplings for X, Y & Z axis

Stainless steel cap screws for mounting motors, and other hardware as needed

New Thrust bearing for all 3 axis'

All 6061 aluminum parts anodized to be scratch and corrosion resistant.

Machine will need modifications to fit ball nut for X axis.

The table will need to have about .1" removed from the bottom side

Pictures and dimensions shown in instructions

One year warranty

Installation Manuel download

PM30MVinstruction (405 downloads)

You can add the stepper Driver

KL-8070D Digital Bipolar Stepper Motor Driver-32 bit DSP Based

Power Supply

48V/20A Switching CNC Power Supply (KL-1000-48)

Mach4

Fully Licensed versions of Mach4, Email you the license.

or any ESS board

6 Axis Ethernet SmoothStepper Motion Board for Mach3 and Mach4, with C11G, Relay and Spindle control
