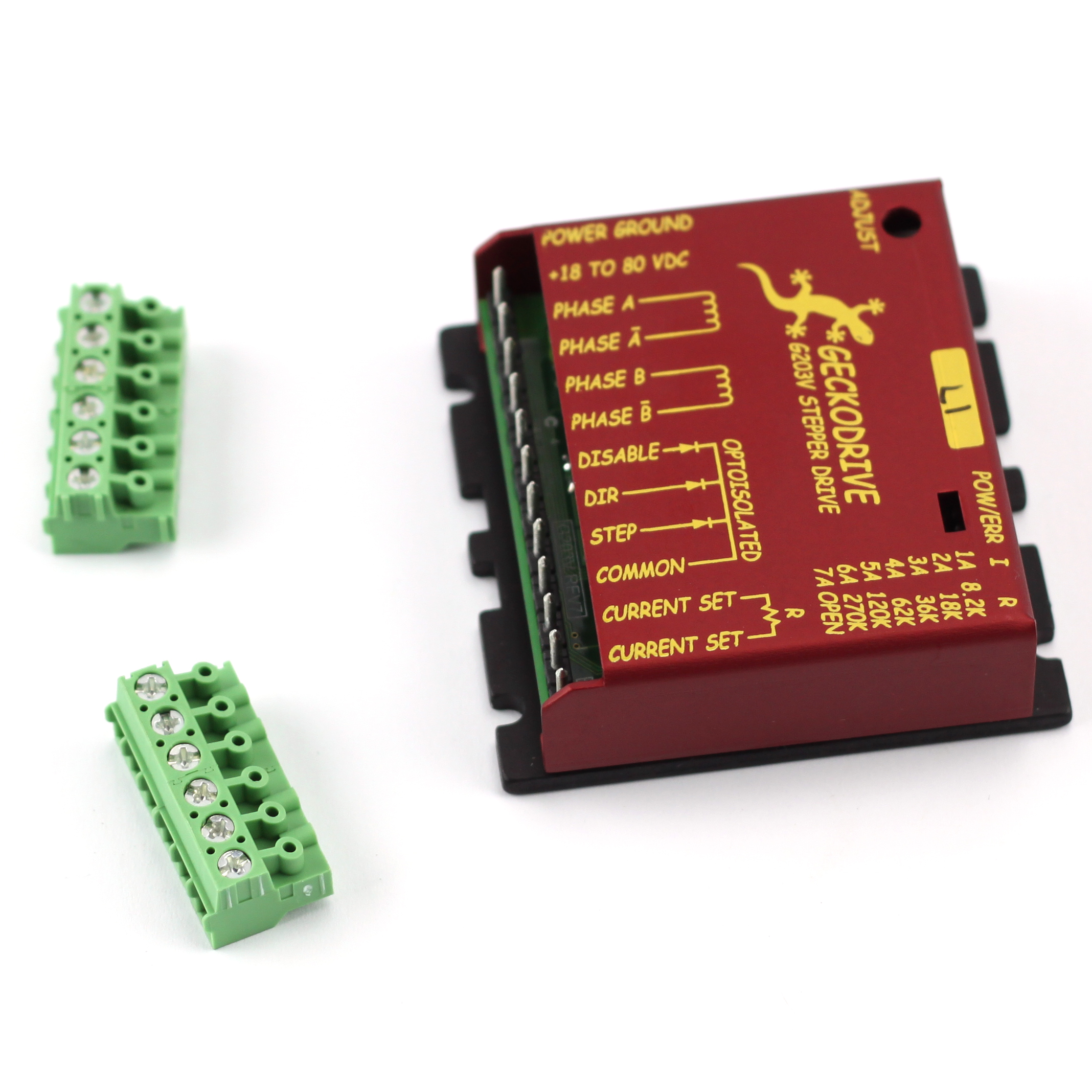

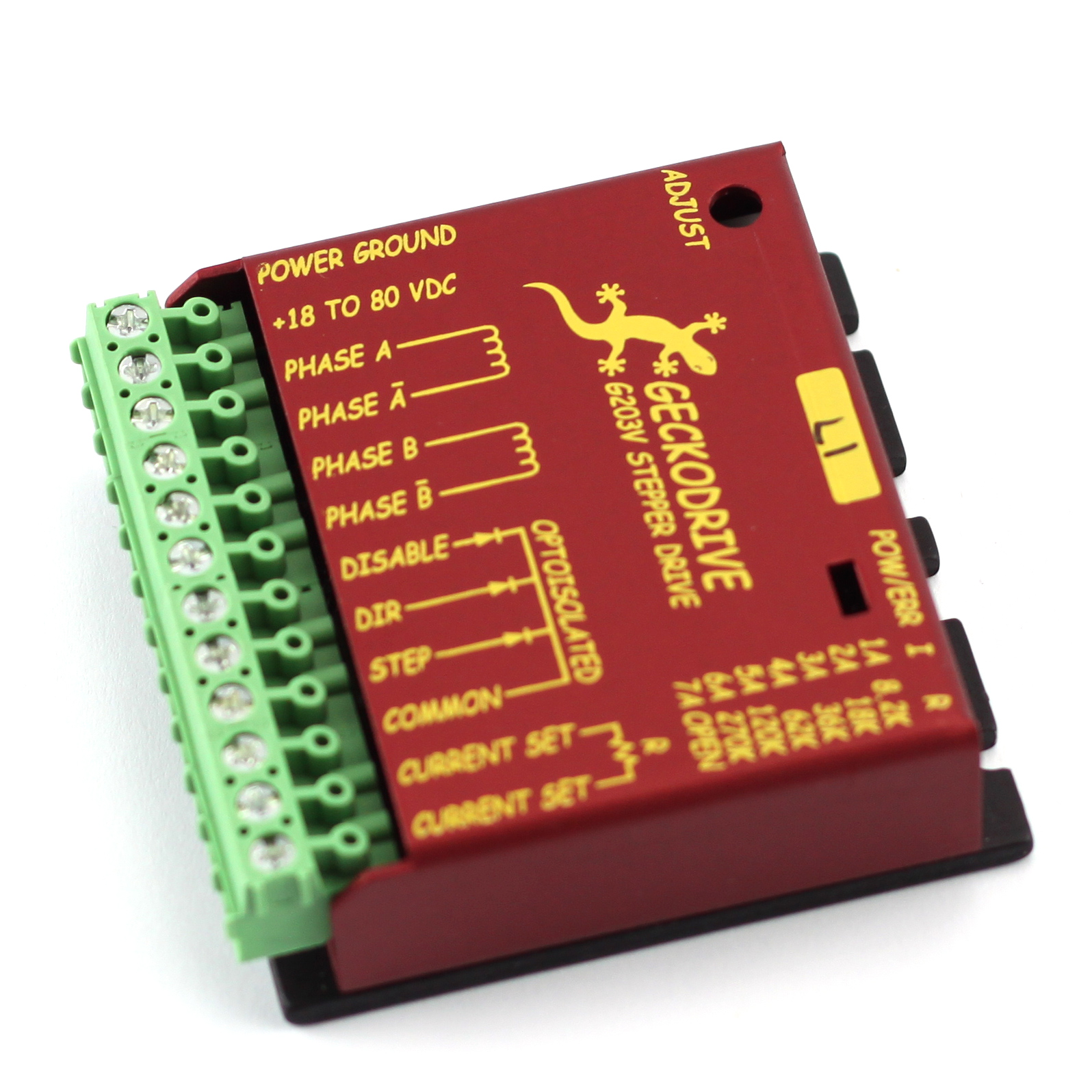

Gecko Stepper Driver G203V 80V,7A

Product in stock

The G203V is Geckodrive's toughest drive. Designed with the intention of creating an indestructible stepper controller, no protection was left out of the production model. Where most other drives would be damaged or potentially destroyed the G203V will survive. Read more bellow!

Price

$145.00

Loading Updating cart...

Gecko Stepper Driver G203V 80V,7A

Product Description

The G203V is Geckodrive's toughest drive and was designed with the intention of creating an indestructible stepper controller. It has short circuit protection on the motor outputs, reversed power supply polarity protection, over-voltage and under-voltage protection and is internally fused. Where most other drives would be damaged or potentially destroyed the G203V will survive. Because of its CPLD architecture we can offer three different versions of the drive, all with the same level of protection



    • 7A 80VDC 10-Microstep Drive
    • Mid-band resonance damping
    • Short-circuit protection
    • Reversed-polarity protection
    • Over-temperature protection
    • Over-voltage protection
    • Optoisolated STEP, DIRECTION and DISABLE inputs
    • Optoisolator COMMON is ground
    • 2.5V, 3.3V and 5V logic compatible inputs
    • Recirculate mode while motor is stopped
    • 350 kHz maximum Step pulse frequency
    • Top settable adjust trimpot
    • Power and error LED indicators
    • No user settable jumpers inside
    • Internal socketed fuse
    • Power-on reset
    • 20 kHz switching frequency
    • Same size and terminal pin-out as the G201

More Documents

Wiring Diagram & Downloads

G203Vwiring (1751 downloads)

G203WithDB25 (541 downloads)

G203WithC10 (549 downloads)
