CO2 Laser Cutter and Engraver With Auto Focus, 90W, RECI CO2 Glass Tube, Auto Focus, 36 inch x 24 inch (690-90W)

Product in stock

Price

$5,999.00

Loading Updating cart...

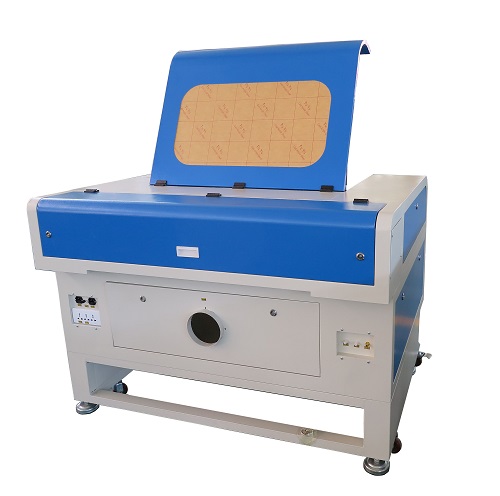

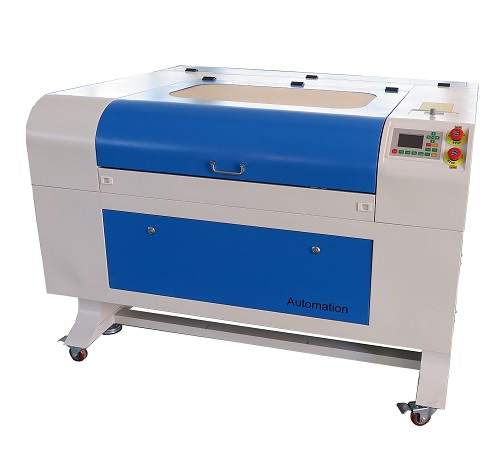

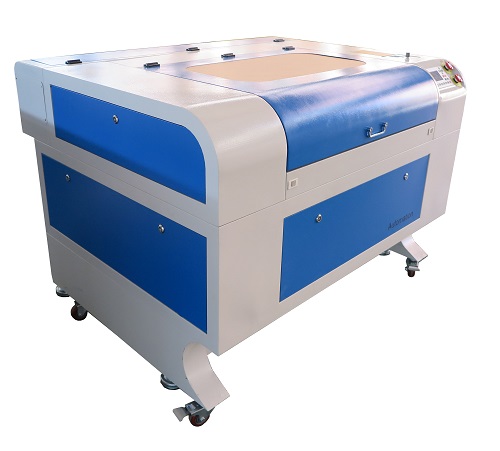

CO2 Laser Cutter and Engraver With Auto Focus, 90W, RECI CO2 Glass Tube, Auto Focus, 36 inch x 24 inch (690-90W)

Product Description

690-90W, Brand New Laser Engraving Machine, You can come to our show room to check in Chicago

or call me at 847-984-0882

Following Item are included

1: Honeycomb Table

2:Water Chiller, CW3000

3: Exhaust Fan

4: Air Assist with Compressor

5: Auto Focus

6: Automatic Z Table, Full up/down table

7: Red Dot Point

8: Ruida 6442G Controller

Ruida 6442G Controller

RDwork, compatible with Lightburn

Specifications:

Laser Power: 90W,  Min 80W, Max 100W

Work Area: 890 mm x 610mm, 36”x24”

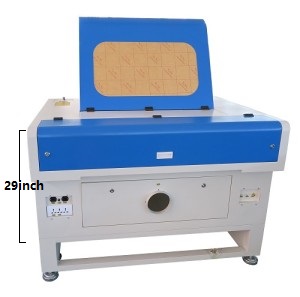

Full Machine Size: 1480 x1060 x 1080 mm, 59”x 42”x 43”

Driving System: Stepper Drives

Vertical Z Travel of Table:  about 8 inch

Cooling Mode: Water Cooling with Flow Protection

Controlling Software: DSP Control System, LaserWork

Compatible Software: CorelDraw, AutoCAD, Photoshop

Supported Graphic Format: BMP, JPG, PLT, DXF, AI

Engraving Speed: 0-54,000mm/min

Working Voltage: 110VAC

Net Weight: 185kg/410lbs

Packing size: 65" x 54" x 54"

Are the steppers 2 phase or 3: They are 3 phase

Which series Reci tube is used in your machine: W2 Series

How many watts is the exhaust fan: 550W

Is the Z axis a stepper motor or DC: 2 phase stepper motor

Color Blue

One Years USA Part Warranty

3 Month co2 laser tube warranty

1. Applicable materials:

Cloth, leather, fur, acrylic, plexiglass, wooden board, plastic, rubber, bamboo, product, resin and other non-metal

2. Applicable industries:

The machine is suitable to cutting of garment and leather, package and

printing, advertisement decoration, building upholster art gift, computer embroidery, paper product, acrylic board etc.

Connect the machine to ground, do not forget

We will charge the actual shipping fee because the website can not calculate

We will send you a PayPal request for shipping fee difference

Machine color or style may vary.

Machine Wiring:

80w-Machine-Tube-and-Software-installation (1729 downloads)

Installation-of-Laser-Tube (1147 downloads)

Laser-Tube-Usage (1205 downloads)

RDCAM-Software-SetUp-Manual (2305 downloads)

Connection Settings with your Desktop/Laptop:

Machine Wiring:

Laserwiring (1482 downloads)

USB or Ethernet Connection:

Laser Machine Connection Setup (1167 downloads)

Laserwork Software

Check out the video below if there is no fire from the laser tube

(Be careful and protect yourself from the high voltage while testing!!)

Some common products include CerMark, Enduramark, and LaserBond – allow it to dry, and then perform the engraving as normal. The heat from the laser bonds the solution to the metal, resulting in a permanent black, silver, or sparkle-type mark from a CO2 laser machine.
