Main Panel and Controller for CO2 Laser Cutting Engraving Machine
Sale!

Main Panel and Controller for CO2 Laser Cutting Engraving Machine

Product in stock

Price

$399.95 $329.95

You save: $70.00! (17.50%)

Loading Updating cart...

Main Panel and Controller for CO2 Laser Cutting Engraving Machine

Product Description

Main Panel and Controller for CO2 Laser Cutting Engraving Machine:

Description:

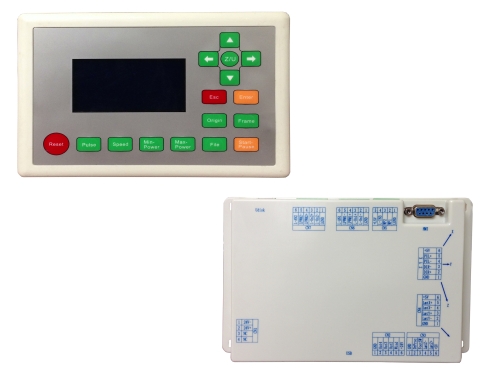

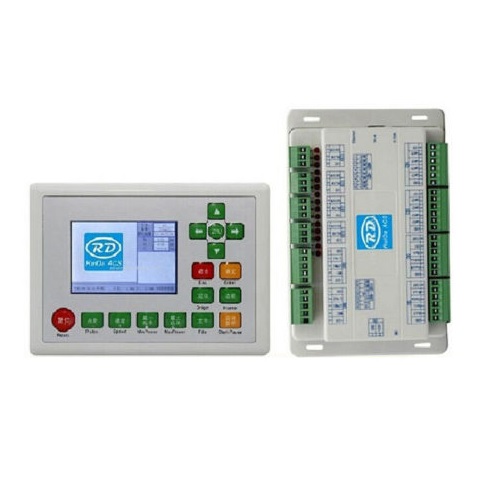

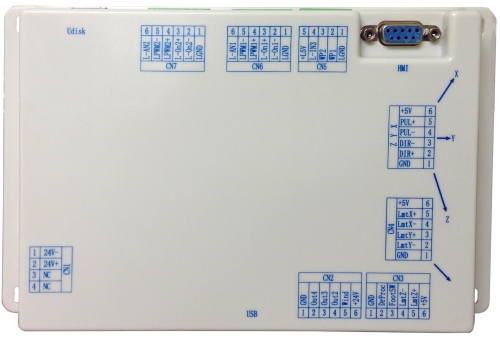

RuiDa Laser Cutting engraving control system RDC6442G
RDC644XG Core Technology Development System is the latest generation of laser engraving

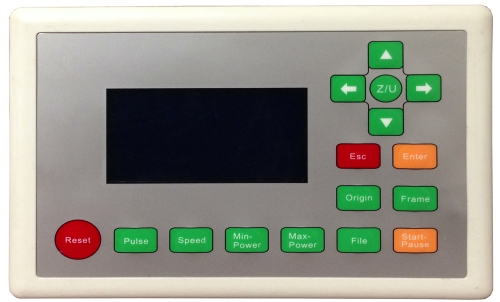

/ cutting control system, the control system has better hardware stability, better resistance to high pressure, static interference characteristics. 3.5-inch color screen based HMI operating system has a more friendly user interface and more powerful. The controller includes better and more superior motion control functions , large file storage , compatibility stronger dual independently adjustable laser power control interface , compatibility stronger U disk driver , multiple generic / private IO control , communication with PC supports Ethernet communications and automatic optional USB communication and so on.

Application:


RDC6442G can be widely used in laser cutting,

laser engraving, laser welding, etc.


Specification:
The sixth generation controller
Controller version number
4 axis card
Display Type (1: TTF character screen; 2:3.5 inch color screen; 3:5.7 inch color screen; 4:7 -inch touch screen.)
Standard functions

Features:


1, Digital laser control signal
(1) TTL level output, 50mA drive capability
(2) PWM Adjustable Frequency 2K ~ 50K
(3) PWM duty cycle of 1% to 99% adjustable
2, OC motor control signal output, 300mA drive capability
3, Maximum motor control pulse frequency 500KHZ
4, The maximum transfer rate of USB 12M, the longest distance 5 m
5, Line / circle / B -spine interpolation accuracy + / -0.5 pulse
6, 4 -way universal optical isolation OC gate output, maximum 500mA drive capability (with freewheeling protection)
7, 4 Universal opt-isolated inputs, compatible logic levels 5V/12V/24V

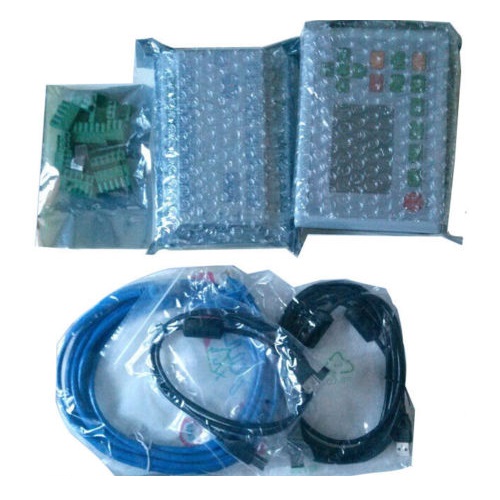

Package list:


1 Controller, 1 Control Panel,

1 USB cable, 1 wire cable

Cutting Software LASER WORK RDCAM6.0 (12684)

RDCAM-Software-SetUp-Manual (1337)

50Wor80Wlasermanual (4549)
