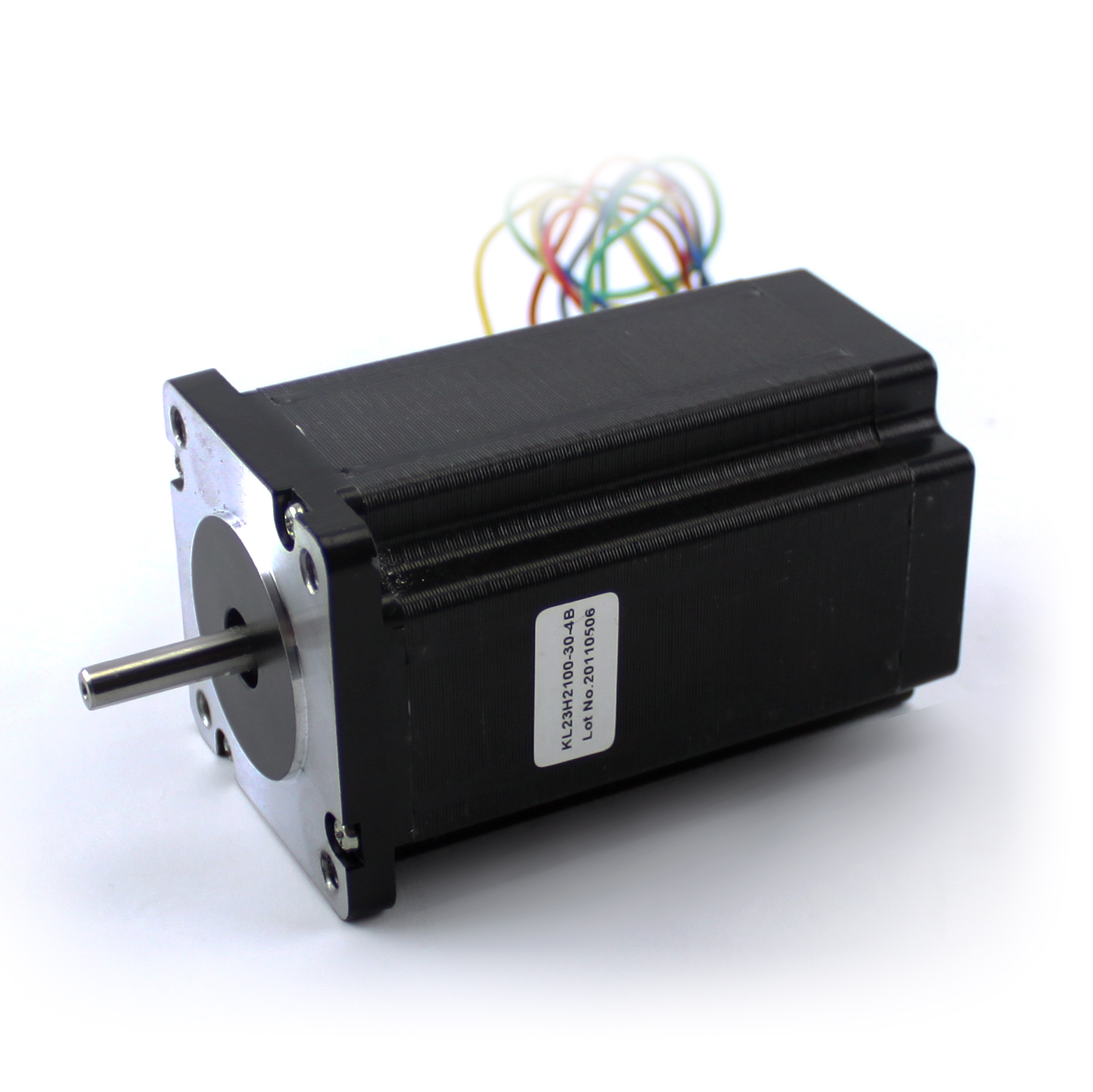

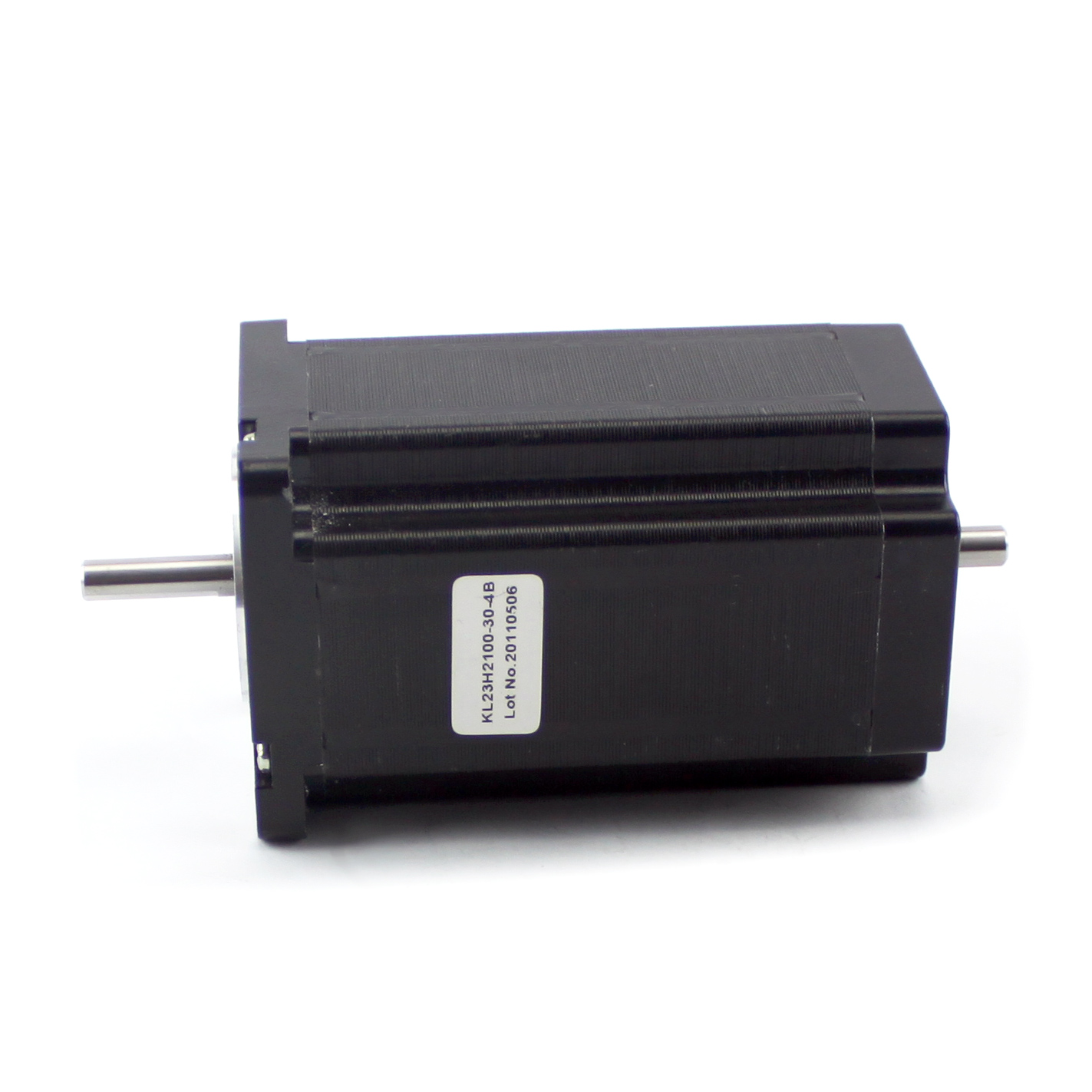

NEMA23 382oz/in 3.0A Stepper Motor 1/4 Dual shaft (KL23H2100-30-4B)
Product in stock
This 382oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.
Price
$49.00
$39.95
You save: $9.05! (18.47%)
NEMA23 382oz/in 3.0A Stepper Motor 1/4 Dual shaft (KL23H2100-30-4B)
Product Description
Specification:
NEMA 23 Frame
4-wire Bi-polar
Holding torque 382 oz-in
Hybrid Stepper Motor
1.8°/200 Steps Per Rev.
3.0 Amps Current Per Phase
Inductance: 7.0 mH
0.25" shaft diameter with a ground flat
Drawing:
