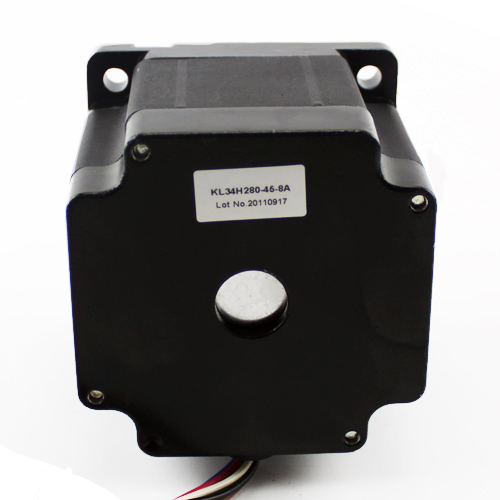

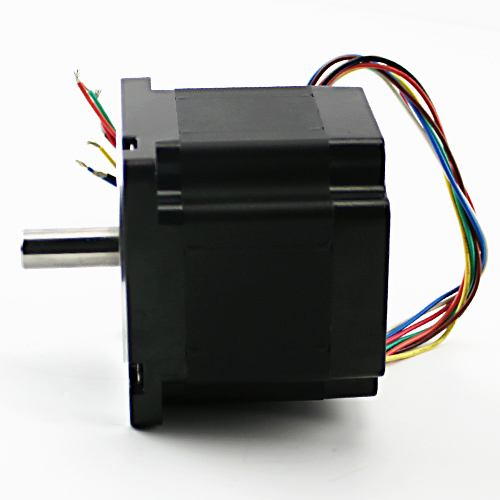

NEMA 34 640 oz-in Stepper Motor (KL34H280-45-8A)

Product in stock

This large and powerful NEMA34 stepper motor can move a lot of weight at 640 oz/in and 6.3 amps current draw per phase. 8 wires can be wired for unipolar or bi-polar operation

Price

$69.00

Loading Updating cart...

NEMA 34 640 oz-in Stepper Motor (KL34H280-45-8A)

Product Description

Stepper Motor

KL34H280-45-8A (1/2" single Shaft)

640 oz-in

1.8° /200 Steps Per Rev.

6.3 Amps Current Per Phase ( Bipolar Parallel)

8-Wire Bi-Polar or Uni polar,

NEMA 34 Frame


Wiring:

Bipolar parallel:

  • Blue/Yellow to A+
  • Red/Green A-
  • Brown/Orange B+
  • Black/White B-

Bipolar Series:

  • Blue to A+
  • Red connected to Yellow
  • Green to A-
  • Brown to B+
  • Black connected to Orange
  • White to B-

Manual:

KL34H280-45-8A (5153 downloads)

Torque Curve:

KL34H280-45-8ATC (1500 downloads)
