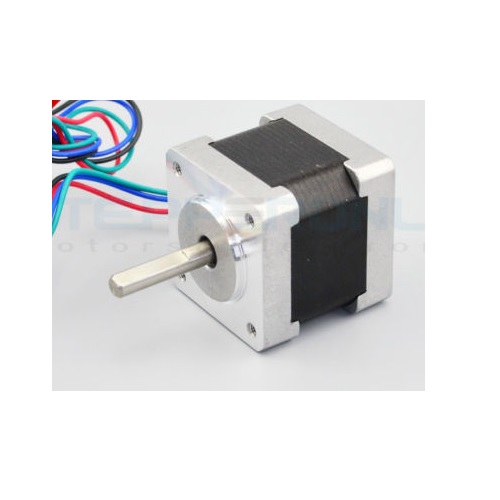

NEMA14 Stepper Motor (KL14H234-08-4A) (5mm shaft with a flat) 28 oz in. Hybrid

Product in stock

Price

$15.00

Loading Updating cart...

NEMA14 Stepper Motor (KL14H234-08-4A) (5mm shaft with a flat) 28 oz in. Hybrid

Product Description

NEMA14 Stepper Motor (KL14H234-08-4A) (5mm shaft with a flat) 28 oz in.

Might need to ship from our China warehouse, the shipping fee will differ.

Specifications:

Shaft: 5mm diameter with flat
Current Per Phase: 0.8A
Holding Torque: 20 N.cm  (28 oz-in)
Rated Voltage: 5.4V
NO.of Phase: 2
Step Angle: 1.8° ± 5%
Resistance Per Phase: 6.8Ω± 10%
Inductance Per Phase: 8.5mH± 20%
Insulation Class: Class B
Dielectric Strength: 100Mohm
Operation Temp Range: -20 ~ +40° C
 Lead Wire: 24AWG /400mm with connector to stepper motor driver
BLK-       A+
Green-    A-
Red-        B+
Blue-       B-

Manuals & Downloads
KL14H234-08-4A (3758)
