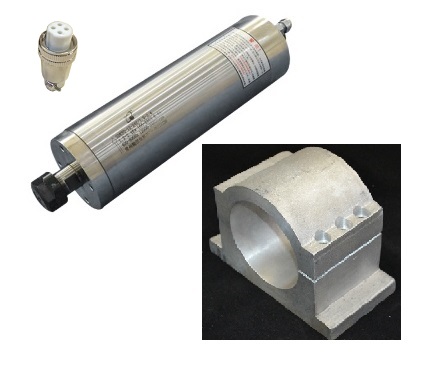

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200T, for Metal and Aluminum, with 85 mm Mount Bracket Clamp

Product in stock

Price

$599.00

Loading Updating cart...

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200T, for Metal and Aluminum, with 85 mm Mount Bracket Clamp

Product Description

2200w 3HP Water Cooled CNC Milling Spindle, KL-2200T

Constant Torque Spindle:  CONSTANT TORQUE electric spindles suit application where maximum cutting power is required near maximum spindle speed. Their torque is constant, so power increases steadily from zero at zero speed to full power at full speed.

This Spindle is used for Metal and Aluminum

  • Product name: KL-2200T,
  • Diameter:85mm ( 85 mm Mount Bracket Clamp is included)
  • Rotating speed: -12000-24000RPM
  • Rated power: 2.2KW
  • Torque: 0.88Nm
  • Voltage: 220 V
  • Current: 7.6A
  • Frequency: 400HZ
  • Number of poles: 2P
  • Connection of spindle end: ER20
  • Cooling: Water-cooled
  • Lubrication: Grease
  • Bearing No.: 4 bearing,  2X7005C P4, 2X7002C P4
  • Weight: 10Kg
  • One year warranty
  • ER20 collet chuck. (But tool is not included: you can use 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" ) or (1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)
  • Runout off: less than 0.005mm
  • Water cooling about 20-26 gal/hr
  • about 15 ibscolombo-Spindles-Power-Curve
