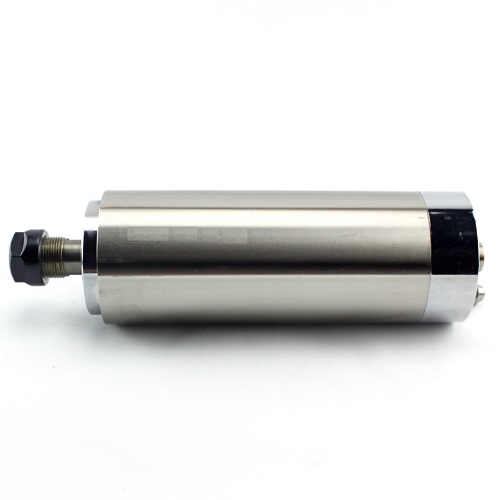

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200 (Round) 220V
Sale!

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200 (Round) 220V

Product in stock

This water cooled 2200 watt CNC spindle is powerful enough to get the job done. With an 8000-24000 RPM range, ER20 collet chuck, and runout of less than 0.005mm, the KL-2200 spindle is ideal for routing, and other similar applications

Price

$319.00 $279.00

You save: $40.00! (12.54%)

Loading Updating cart...

2200W 3HP Water Cooled CNC Milling Spindle, KL-2200 (Round) 220V

Product Description

KL-2200 spindle with 4 Bearings

OD=80 mm

Length =215 mm

Voltage:  220V

Speed: 8000-24000 R/min ( run speed at 60% or less than 80% of rated Max spindle)

Power: 2200 W (3HP)

Frequency: 400 Hz

Water Cooling,

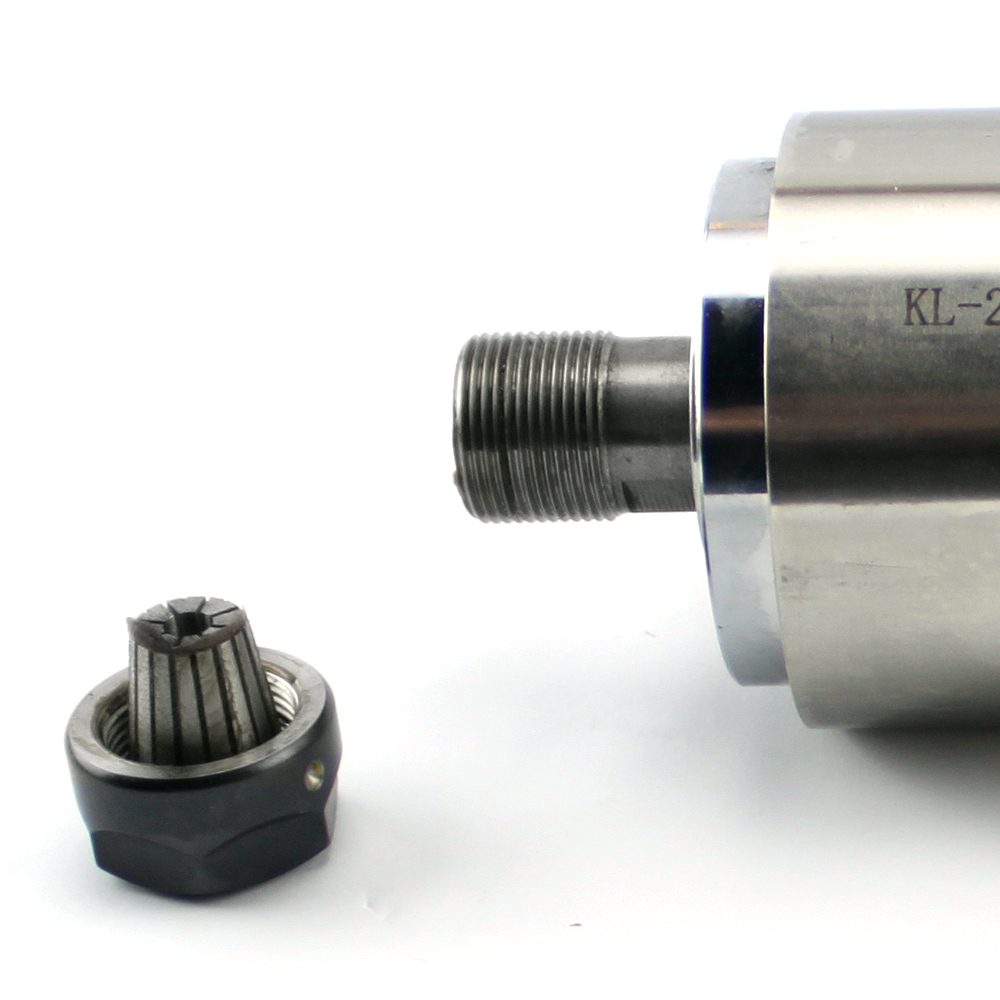

ER20 Collet chuck. (But tool is not included: you can use 1/16", 3/32", 1/8", 3/16", 7/32", 1/4", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2" )

Grease Lubrication,

Runout off: less than 0.005mm

Water cooling about 20-26 gal/hr

about 15 ibs

One year manufacture warranty

Use this VFD:

2.2KW (3HP) VFD for Spindle (KL-VFD22) 220VAC Input  for 220V spindle

You can use this water pump and tube for the spindle:

Water pump for spindle

PVC tube for spindle

Manuals & Downloads

KL-2200 (9185 downloads)

KL-2200 Spindle Performance Curve Sheet (392 downloads)
