Digital Stepper Driver KL-3022 0.3-2.2A 18-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor

Product Description

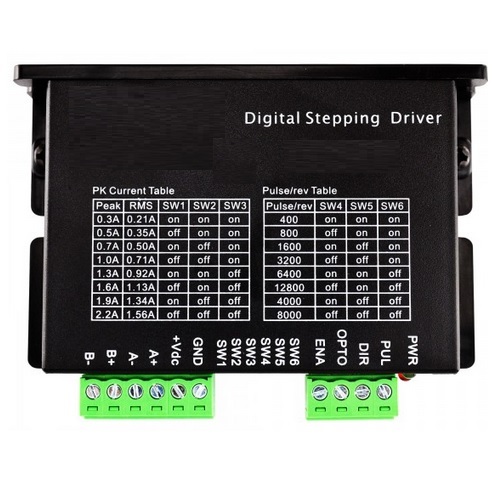

This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phase motors (from Nema 8 ~ Nema 17 size) smoothly with less heat and noise. It works with 18-30VDC voltage and can provide max 2.2A peak current. You can set the DIP switches to get the current and microsteps you need.

Key Features:

  • Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
  • Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
  • Step & direction (PUL/DIR) control
  • Multi-Stepping for smooth motor movement
  • Optically isolated inputs
  • Input voltage 18-30VDC

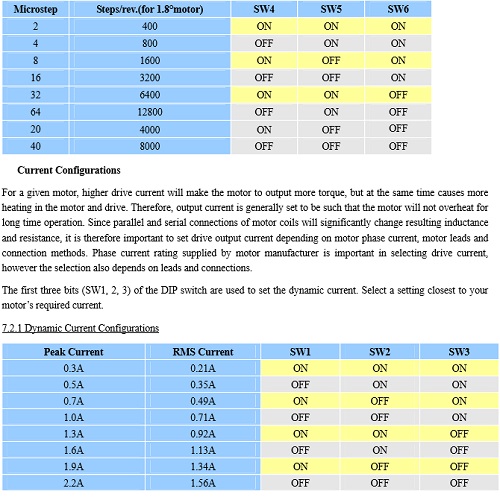

  • 8 Selectable micro-step resolutions of 400-12800 via DIP switches
  • 8 Selectable output current settings of 0.3 – 2.2A via DIP switches
  • Soft-start with no “jump” when powered on
  • Pulse input frequency up to 60 KHz
  • Automatic idle-current reduction
  • Protections for over-voltage and over-current

Electrical Specifications:

  • Output Peak Current: 0.3~2.2A (1.6 RMS)
  • Input Voltage: +18~30VDC
  • Logic Signal Current: 7~16mA (Typical 10mA)
  • Pulse Input Frequency: 0~60kHz
  • Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0℃ - 65℃
  • Humidity: 40%RH-90%RH
  • Operating Temperature: 50℃ MAX
  • Vibration: 10-50Hz / 0.15mm
  • Storage Temperature: -20℃ - 65℃
  • Weight: Approx.90g (3.5oz)
