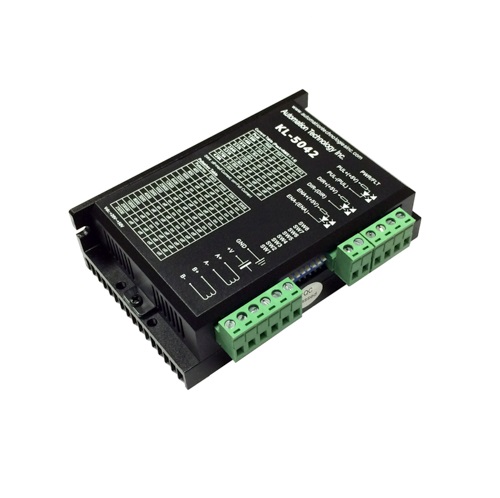

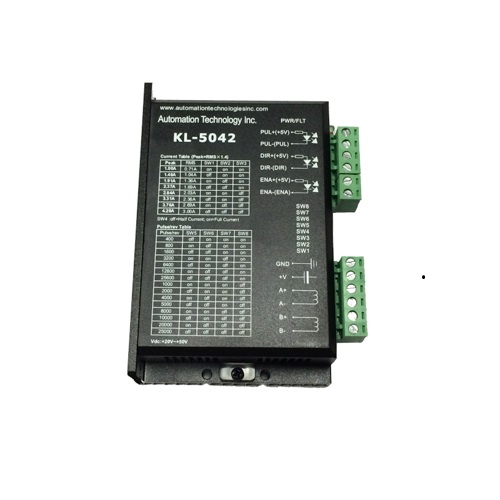

KL-5042 4.2A 24-50VDC Digital Stepper Motor Driver – 32 bit DSP Based
This driver is suitable for a wide range of stepping motors; Nema 17, 23 and 34, and usable for various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices. Optical isolation helps protect valuable and delicate equipment.
Price
KL-5042 4.2A 24-50VDC Digital Stepper Motor Driver – 32 bit DSP Based
Product Description
KL-5042 4.2A 24-50VDC Digital Stepper Motor Driver - 32 bit DSP Based
Heat Sink is included.
Features of this driver
1: Supply Voltage 24 up to 50 V DC
2: Current: 1.0,1.46, 1.91,2.37,2.84,3.31,3.76,4.2A
3: Micro Step: 2,4,8,16,32,64,128,5,10,20,25,40,50,100,125
4: DIP Switches,Suitable for 4,6,8 wire motors
5: Full or Half Current Mode: Sw4: Off= Half Current
6: TTL compatible and Optically Isolated Signal I/O
7: Short-voltage, over-voltage, over-current and over temperature
protection
8: Pulse input frequency up to 400 Khz
9: Support PUL/DIR
One Year Warrenty
Manual:
Similar Wiring:
KL-5056WithDB25 (4547 downloads)
KL-5056WithC10 (7493 downloads)
Digitaldriverwiring (18927 downloads)
