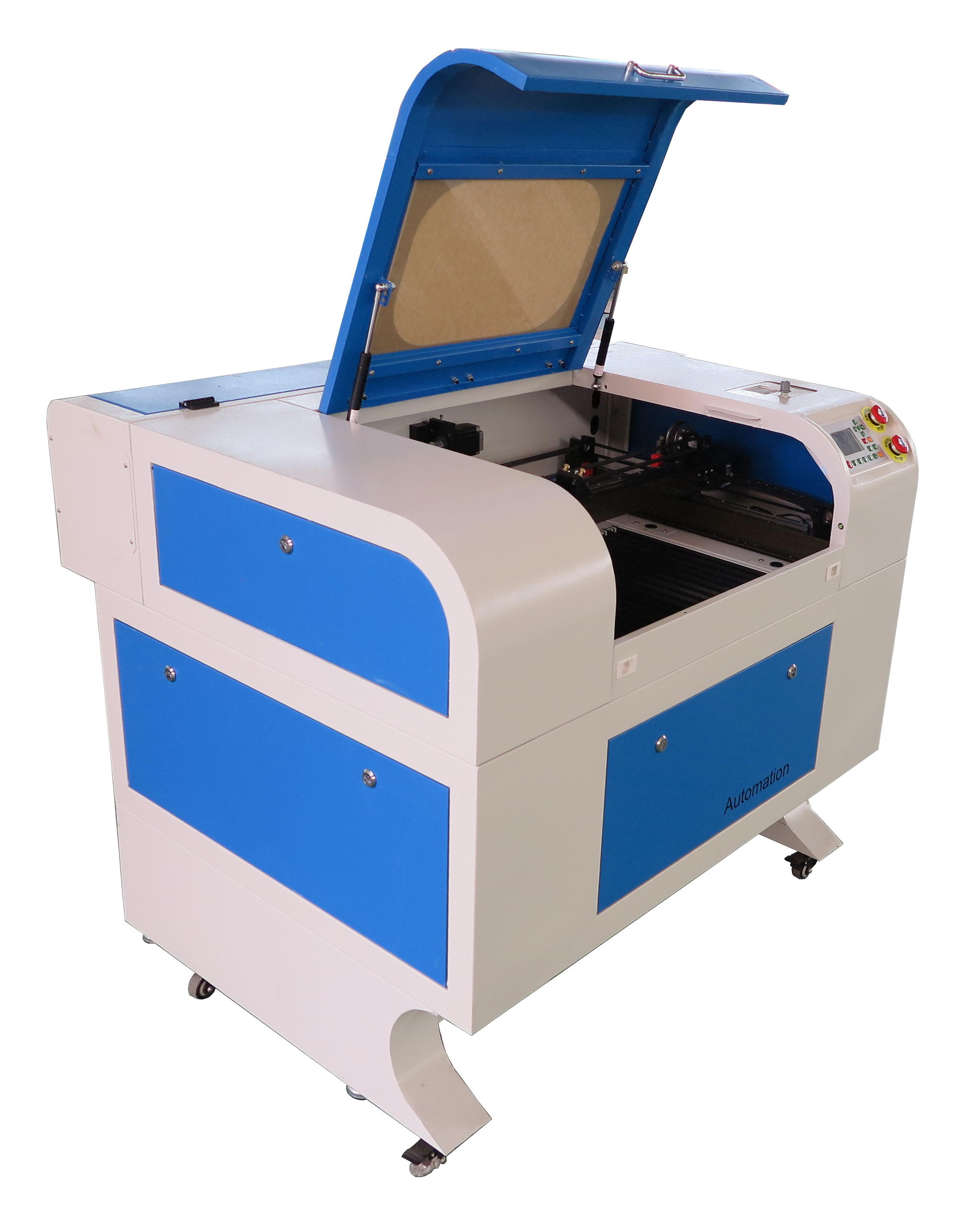

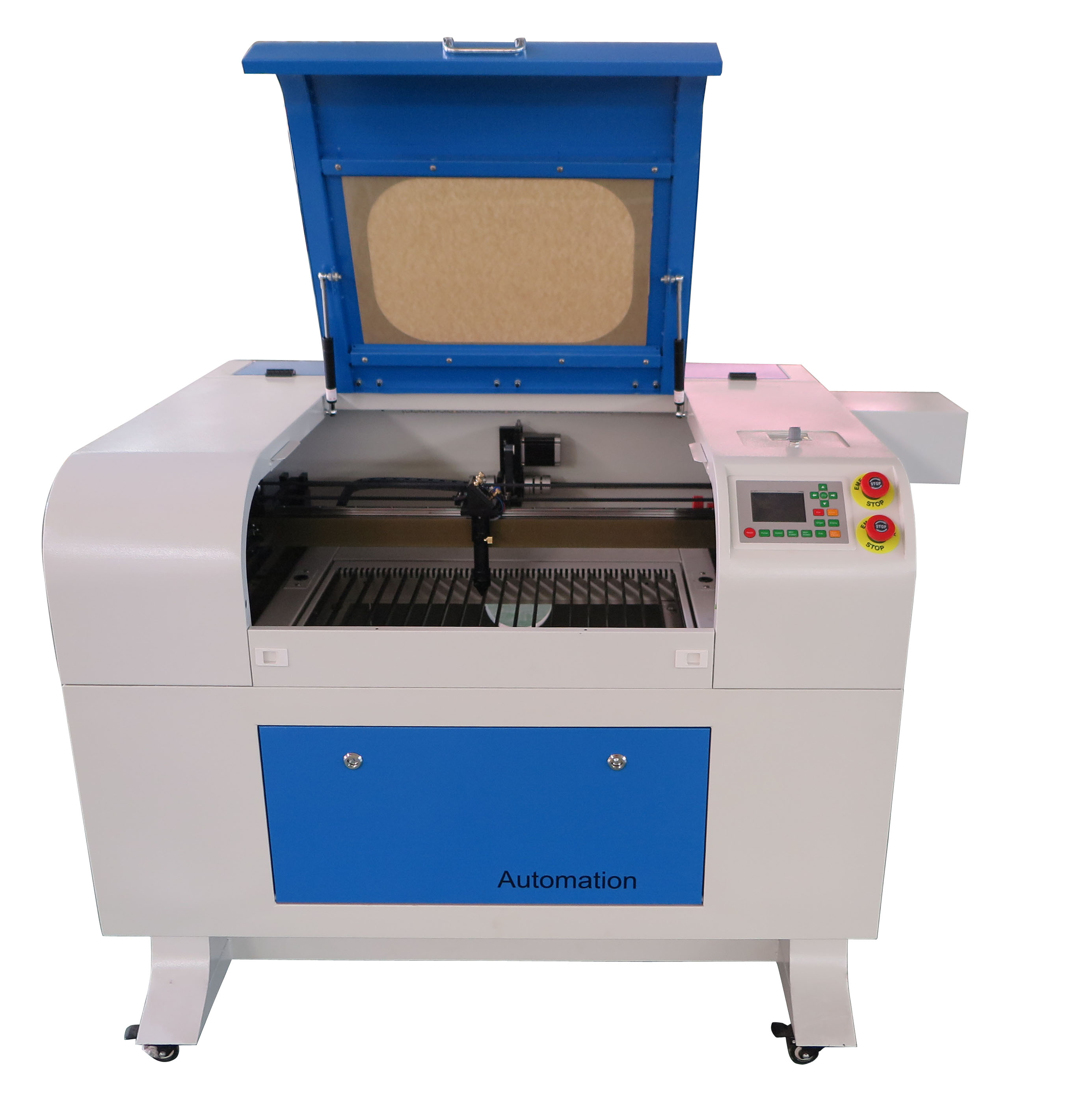

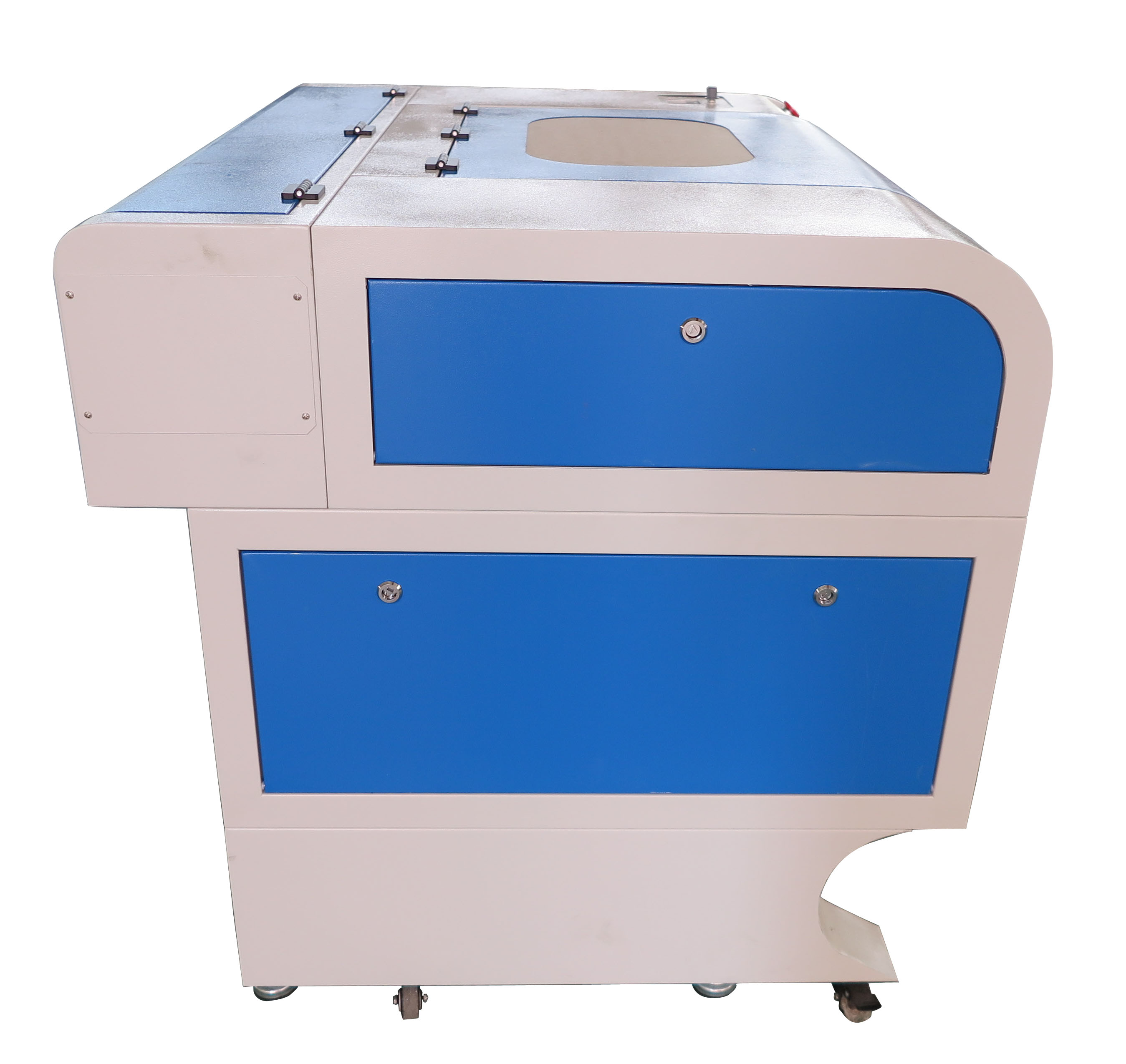

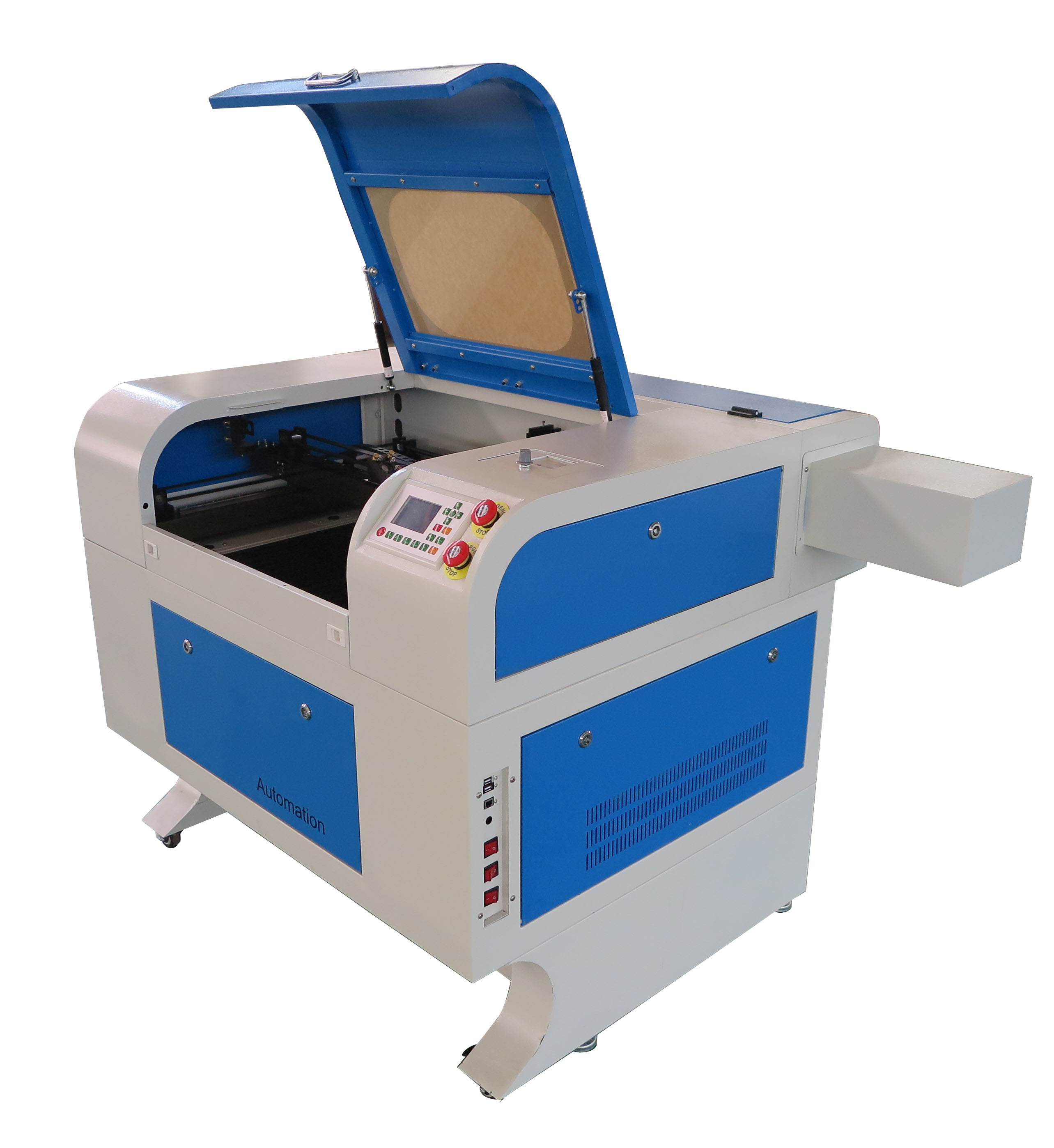

60W CO2 Laser Engraving Machine, auto focus 24 X 16 inch

Product in stock

Price

$4,299.00

Loading Updating cart...

60W CO2 Laser Engraving Machine, auto focus 24 X 16 inch

Product Description

460d-60W, Brand New CO2 Laser Engraving Machine, 60W, you can come to our show room to check in Chicago,

One Year USA support and one year part warranty

3 month co2 laser tube warranty

Add $600 if you need 2 year warranty

Click to Apply Financing

Specification:

Laser- type: Sealed CO2 laser tube, 2 inch focus lens

Laser power: 60W

Engraving area:600 x 400mm, 24" X 16"

Whole machine size:1,360x 850 x 950mm

Engraving speed:0 - 54,000mm/min

Resetting position accuracy: ±0.05mm

Working voltage : AC 110 V±10%, 50 - 60Hz

Gross power; 1000W

Operating temperature: 0 - 45℃

Operating humidity: 5- 95%

Minimum shaping character: English 1 x 1mm

Graphic format supported: BMP,PLT, DST, DXF, and AI

Driving system: stepper motor and driver

Cooling mode: water-cooling and protection system

Auxiliary equipments:Exhaust-fans, air-exhaust pipe

Controlling software : DSP control system, Laserwork Software

Compatible Software: CorelDraw, AutoCAD, Photoshop

Net Weight:about 130 kg

Woodbox: 25 x 40 x 43 inch

About 300 ibs

Following Items are  included

1: Honeycomb
2: Water Chiller 3000W
3: Air Assist w/ Compressor Included
4: Exhaust fan
5: Auto Z up and down ( about 8 inch)
6: Auto focus
7: Red Point
8:  Laser Software license included, RDwork, compatible with Lightburn
9: Ruida 6442G Controller
Ruida 6442G Controller

This machine adopts imported linear guide and DSP system control software. The machine has stable performance and applicable for different industries.  It is the ideal choice for non-metal processing industry. It is Compatible with Rotary attachment (Bottles and rounded objects, Max. to 4")

Applicable materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries: AAdvertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.



We will charge the actual shipping fee because the website can not calculate

We will send you a paypal request for shipping fee difference

pls Connect the machine to ground, do not forget

Laserwork Software



Machine Wiring:

Laserwiring (1482 downloads)

USB or Ethernet Connection:

Laser Machine Connection Setup (1167 downloads)
