Portable Fiber Laser ENGRAVER, Fiber Marking Machine, 20W with Computer
Sale!

Portable Fiber Laser ENGRAVER, Fiber Marking Machine, 20W with Computer

Product in stock

Price

$7,990.00 $5,999.00

You save: $1,991.00! (24.92%)

Loading Updating cart...

Portable Fiber Laser ENGRAVER, Fiber Marking Machine, 20W with Computer

Product Description

Fiber Laser ENGRAVER Machine , Software, Computer are all included

If you need a Rotary Device, add $500

If you need a 30W fiber laser, add $1000

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts,Plastic&Paper Materials, The Electron,Hardware which with high request for depth,smooth, accuracy such as horologe, Mould, bitmap marking etc.

The machine come with a user-friendly software. It is compatible to CorelDraw, AutoCad,

and Photoshop if you need handle more complicated art work. It's an excellent candidate

for bar code printing and stainless steel engraving.

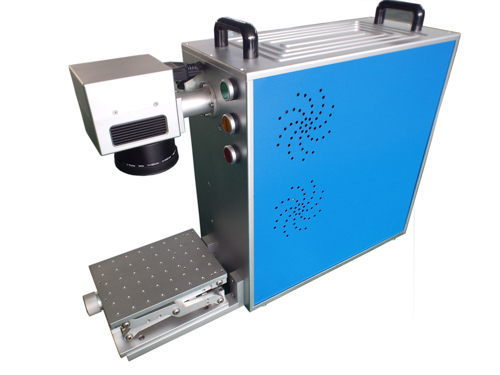

Fiber Laser ENGRAVER Machine:

(1): Maxphotonics fiber laser module, life time is more than 100,000 hours;

(2): Scanning mirrors

(3): NORTH-SMITH field lens from America;

(4): Control system: JСZ, software: EzCad, WinXP, Win7, Win8 Computer Systems are supported;

(5): Easy-focusing device;

(6): Air Cooling;

(7): Protective cover (Optional)

(8): Laptop Computer is included. Software is installed and tested

Packing information of  fiber laser marking machine :

Machine Size: 60x 22x52cm

Package Size: 91x83x163 cm

Net Weight: 30kg

Gross Weight: 50kgs

Main specification:

Laser Source Fiber Laser
Output Power  20, 30W
Wavelength 1060nm
Beam Quality < 2
Repeat Frequency 10khz--- 100khz
Pulse Energy 2 mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution 18μ
Repeatability 50μ
Marking Scope 110mmx 110mm/ 175mmx 175mm (optional)
Linear Speed 800 character/ s
Marking Linear Speed ≤12,000mm/s
Marking Depth 0.01 to 0.5mm according material
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy ±0.003mm
Input Power 0.5kw
Electrical Source 110V or 220V / Single-Phase Circuit / 50/60Hz /4A
