6 axis USB MOTION CONTROLLER for Mach3, UC100

6 axis USB MOTION CONTROLLER for Mach3, UC100

Product in stock


$129.00 $119.00

You save: $10.00! (7.75%)

Loading Updating cart...

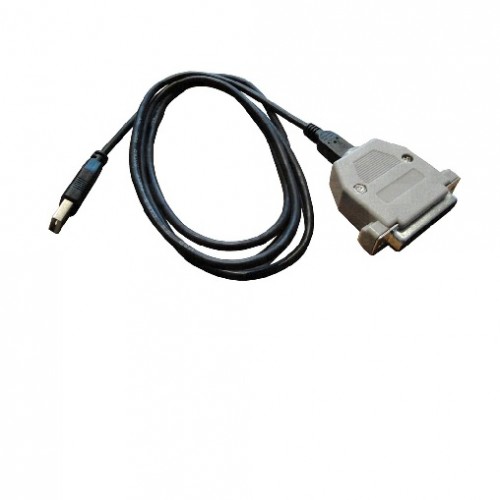

6 axis USB MOTION CONTROLLER for Mach3, UC100

Product Description

Windows 2000, Windows XP, Windows Vista, or Windows 7 Operating System will be ok
Include: 1pcs UC-100, 1pcs USB cable, 1pcs Gender changer

USB cable: 1.8 meter  long


- Very Easy to connect to the existing mach3 DB25 Breakout board or any new DB25 breakout Board.

- Controls up to 6-axis simultaneously.

- Works with Mach3 software via plugin.

- Upto 100kHz operation.

- USB connection from your PC to DB25 controller.

- Same pinout as a standard LPT port.

- Fast communication with data buffer for robust and stabile operation.

- Comes with a DB25 gender changer, so it connects to Male or Female DB25 connectors.

- Automatic firmware checking and firmware update.
- Motion control on upto 6-axis (X, Y, Z, A, B, C).
- Configurable maximum stepping frequency, the options are 25kHz(with 20usec pulse length), 50kHz(with 10usec pulse length), 100kHz(with 5usec pulse length).
- On the fly configurable 12 pieces of 5Volt (TTL level) buffered outputs. The current sink/source capability is 20mA max. per output.
- On the fly configurable 5 pieces of 5V (TTL level) schmitt triggered and filtered inputs. The input internal pullup resistance to 5Volts is 4.7kOhms.
- About 1 second long communication buffer.
- 100% LPT port compatible pinout.


- Reference inputs.
- E-stop input.
- Softlimits.
- Limit switch inputs.
- Limits override.
- Index input (extended function supports multi slot sensors).
- Spindle speed PWM control output.
- Step and direction spindle control output.
- Spindle and coolant relay control.
- Charge pump safety signal output (configurable to active/inactive when in E-stop).
- Charge pump adjustable frequency (12.50kHz in normal or 5kHz in laser mode).
- All signals configurable to active High/Low.
- General purpose I/O signals handling.
- Offline mode.
- MPG1 and MPG2 support.
- Slave axis.
- Backlash compensation.
- Digit/probe input.
- THC control inputs.
Product Manual& Downloads
Userguider (4197)

Additional Details

Currently the automatic installer is working under the following operating systems:

Windows XP

Windows 7 32bit and 64bit versions.

Windows 8 32bit and 64bit versions.

Windows 8.1 32bit and 64bit versions

or more later
