Product Description

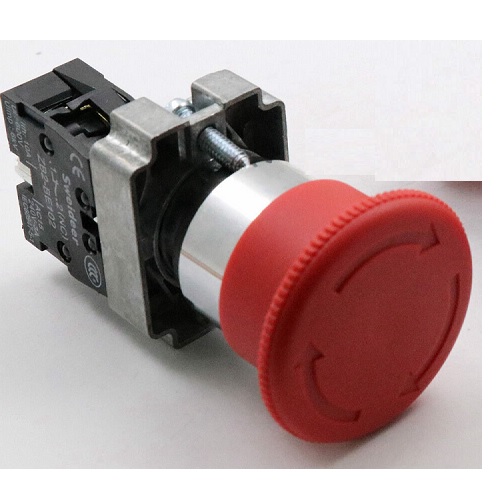

E-Stop Button: Panel Mount Hole = 22.mm

Brand New and High Quality.

1 NC N/C Twist release switch B2-BS542

Specifications:

• Working environment temperature:-25 - +70℃
• Storage temperrature:-40 - +70℃
• Contact Type: 1 N/C (One Normal Close)
• Protection grade:IP65
• Limit height: ≤2000 meter
• Standard: EN 60947 GB14048.5
• Rated insulation voltage:600V
• Rated thermal current 10A
• Mounting hole:22mm
• Switch rating AC-15 Ue:380V/250V,Ie=4.5A
• DC-13 Ue:220V/110V,Ie=0.6A
• Contact resistance≤50mA
• Recommended torque min 1x0.5mm2, Max 2x1.5mm2 or 1x2.5mm2
• Mechanical Life: Pushbutton ≥300 x 104 times;
• Selector Switch≥1004 times;

• Electrical Life：≥ 30x104 times
• Limit voltage 0.8Ue≤U≤1.15Ue

• UL certified (US)
• CSA certified (Canada)
• CQC certiied (China)
