EtherCAT NEMA 34 Motion Control System with Mach4

Product in stock

Price

$3,095.00

Loading Updating cart...

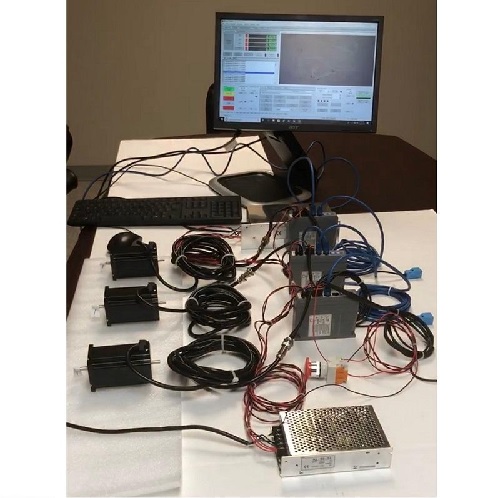

EtherCAT NEMA 34 Motion Control System with Mach4

Product Description

We worked with Newfangled Solutions and KINGSTAR, built this new CNC EtherCAT Motion Control System. It is fully pre-wired, tested and configured with Computer. So you do not need any Breakout Board, Ethernet board. You do not need to wire them any more

-- 1 Pcs Rebuilt Computer with 19 inch Monitor: 8GB of RAM,  500 GB Hard Drive, Windows 10 Pro x64

-- 1 Pcs Mach4 CNC EtherCAT Software, License ( You can choose different Mach4 Screen) from Artsoft software

-- 1 Pcs Kingstar’s RTX64 Runtime License and KINGSTAR EtherCAT  License ( You do not need any Breakout Board, Ethernet board any more) from KINGSTAR

--3 Pcs Stepper Motors (1805 Oz-in) with 1.5 Meter Cable

NEMA34 1805oz/in 8.8A Stepper Motor (KL34H2160-62-8A with key)

-- 3 Pcs EtherCAT Stepper Driver, click the following link: EtherCAT Stepper Driver, EM3E-870E

EtherCAT Stepper Driver, EM3E-870E

-- 2 pcs  60VDC 10A Power Supply

60VDC/10A Switching CNC Power Supply (110VAC/220VAC), KL-600-60

-- 3 Pcs Proximity Switch with 1.5 Meter Cable

Inductive Proximity Switch,NPN

-- 1 Pcs E - Stop with 1.5 Meter Cable

E-stop Switch

-- 1PCS 12Vdv Power Supply for the limit switch

Switching Power 12V/5A 110V/220VAC

We can configure 4 Axis, 5 Axis, 6 Axis ..... to N axis

We can change from 1.5-meter cable to other Lenth as you need

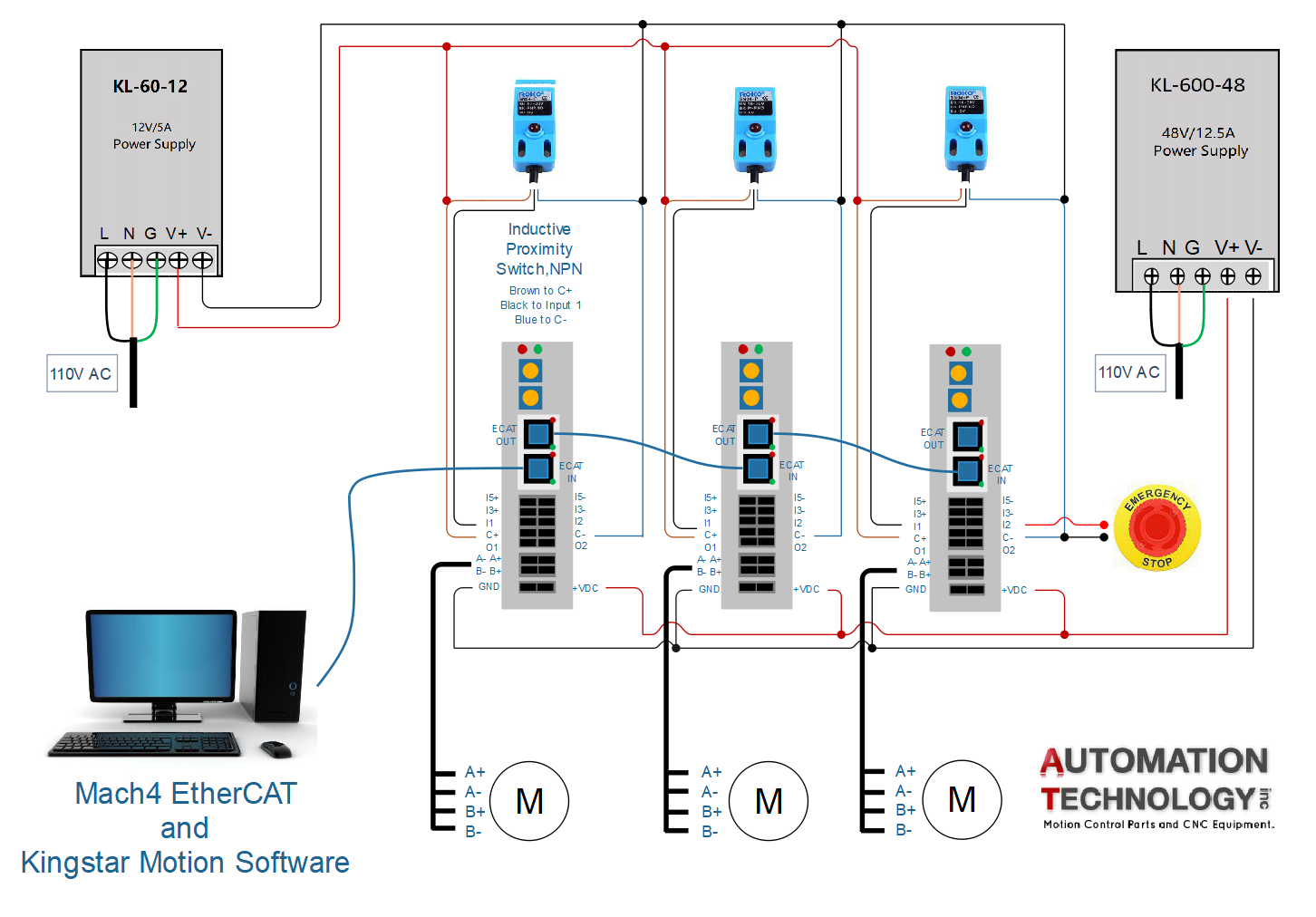

Wiring Diagram & Downloads
EtherCAT kits Wiring Diagram (599 downloads)

Testing Video:
