G0704,BF20L, PM25MV Controller with Stepper Motors and Acorn Ethernet Board

Product in stock

Price

$1,398.00

Loading Updating cart...

G0704,BF20L, PM25MV Controller with Stepper Motors and Acorn Ethernet Board

Product Description

This Controller is G0704 or  BF20L, PM-25MV  mill machines, or other machine

It is assembled and tested with Acorn Ethernet Board and Free Centroid  Software. it will work for sure

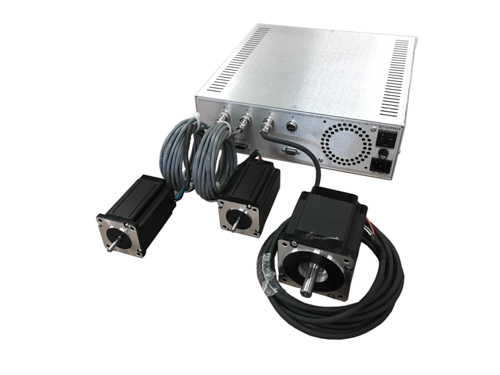

Digital Stepper Control Box  and  X and Y , Z  Stepper Motor.

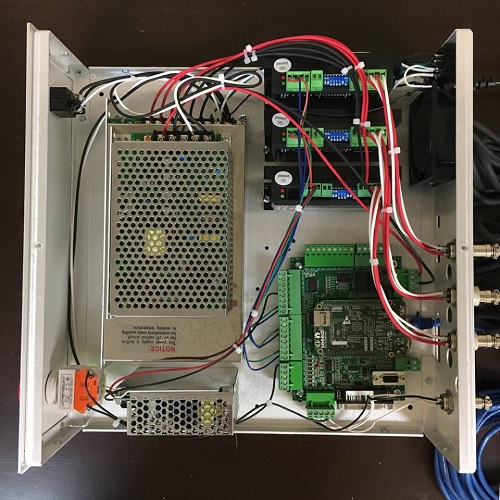

  • 1:  Control Box

Aluminum Box (up to 6 axis) (Aluminum Box without Connectors)

2 Digital Stepper Drivers KL-5056E for X, Y Motors,

KL-5056E Digital Stepper Driver-32 bit DSP Based

3 Digital Stepper Drivers KL-8070D for Z motor

KL-8070D Digital Bipolar Stepper Motor Driver-32 bit DSP Based

4: Power Supply: 48V/12.5A power supply

48VDC/12.5A Switching CNC Power Supply, KL-600-48

5V/3A Switching Power Supply Unit (KL-15-5)

5: Acorn CNC Controller with Ethernet, Free Centroid  Software

Acorn CNC Controller with Ethernet Connection, Free Centroid Software

6: X,Y Stepper Motors, 570 oz-in, 5A, 3/8" Shaft,

X, Y Stepper Motor

7: Z Stepper Motor, 1200 oz-in, 6A, 1/2 inch shaft with 12 feet cable

Z Stepper Motor

  • One Year USA Parts Warranty

check this video

CNC G0704 Part 2 - Assembling the Control Box

CNC G0704 Part 3 - Teardown

CNC G0704 Part 4 - Y Axis Installation

CNC G0704 Part 5 - X Axis Installation

CNC G0704 Part 6 - Z Axis & Done
