3 Phase Hybrid Step motor for NEMA23 212 oz-in KL23H378-49-3A

Product in stock

Price

$89.95

Loading Updating cart...

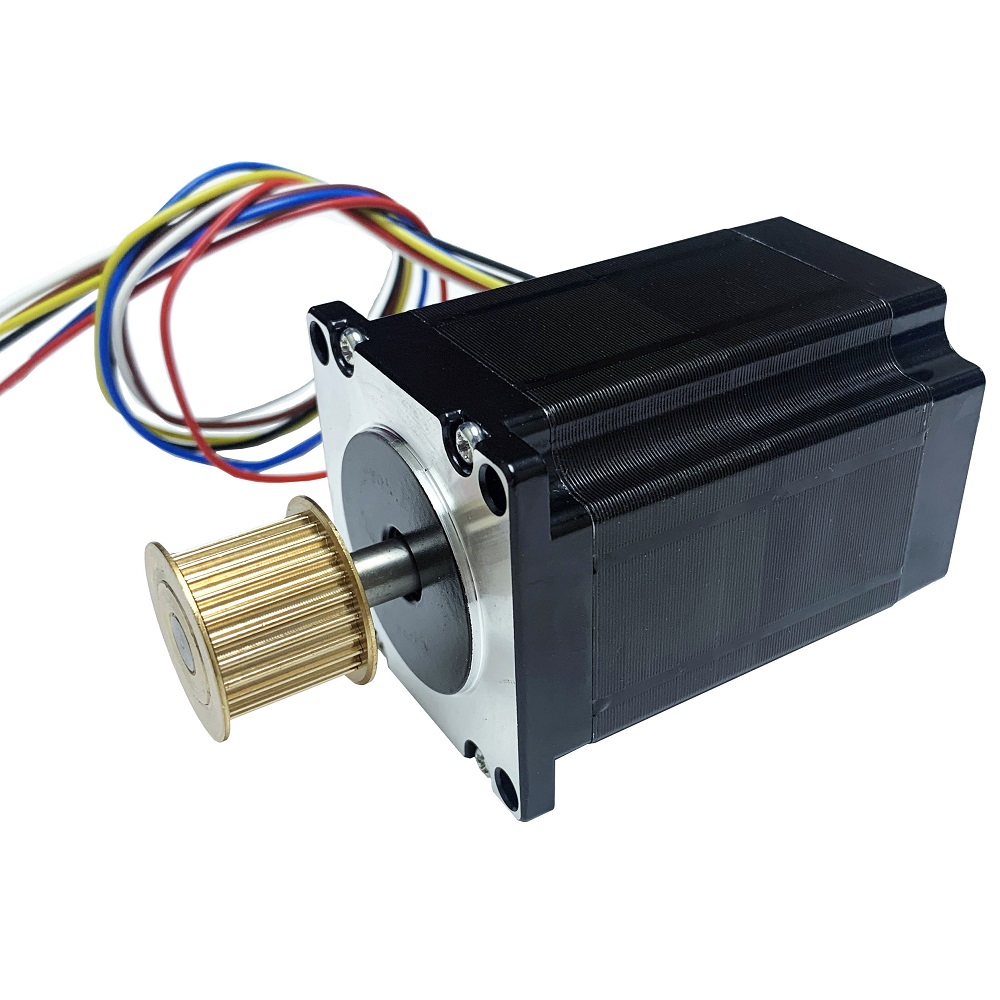

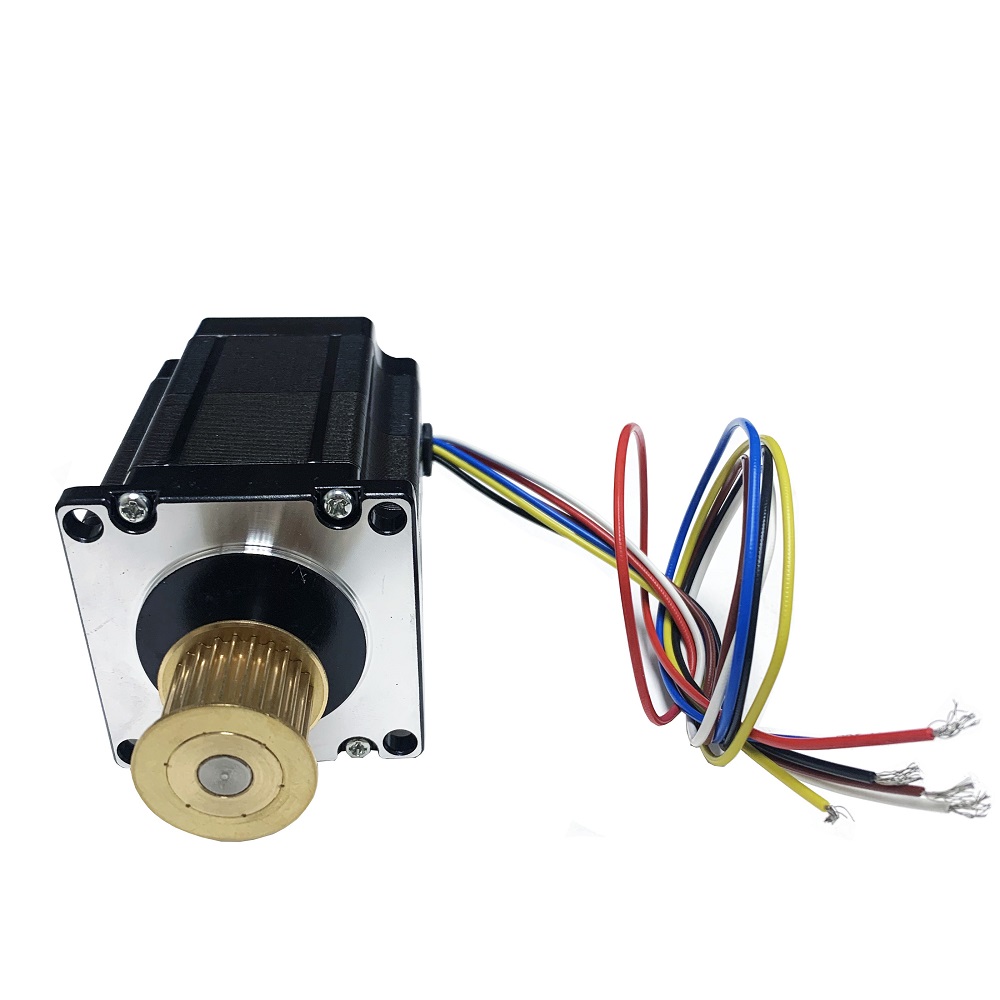

3 Phase Hybrid Step motor for NEMA23 212 oz-in KL23H378-49-3A

Product Description



NEMA 23 3 Phase Stepper Motor, it is used on the Laser machine

Replace 573S15 Stepper Motor

Less heat and smooth Movement


3-phase Hybrid Step for NEMA23 1.5 N.m ( 212 oz-in):

Number of Phase: 3

Step Angle: 1.2° ± 5%

Holding Torque: 1.5 N.m 212 oz-in

Current/Phase: 4.9 A

Inductance/Phase: 1.35 mH

Resistance/Phase: 0.7 Ω

Motor Length: 78 mm


Wiring:

Delta Connection

  • YEL & BLK to U
  • WHT & BLU to V
  • RED & BRN to W

or Y Connection

  • YEL to U
  • BLU to V
  • BRN to W
  • Wire WHT & BLK & RED together

Downloads:

KL23H378-49-3A Datasheet (134 downloads)

Stepper Driver to use for this motor in Laser machine:

3 Phase 3DM580 8A Stepping Motor Driver

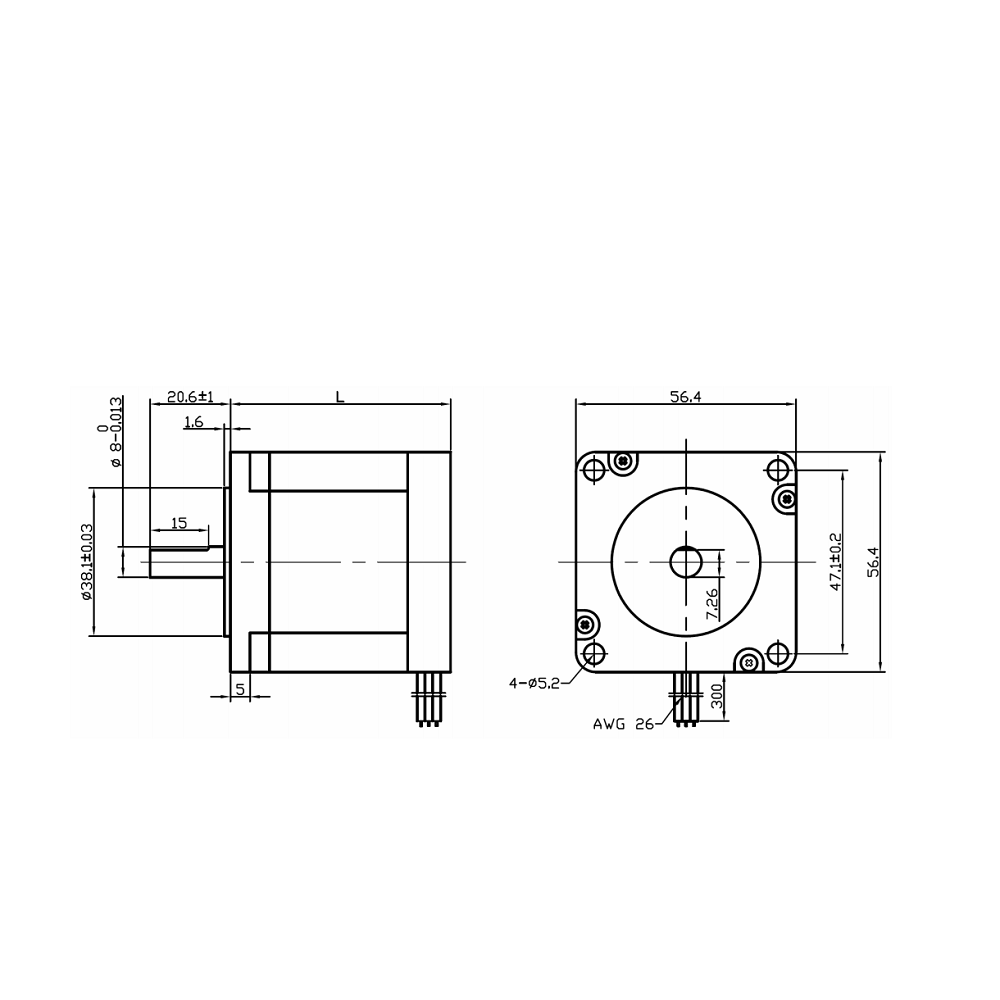

Motor Drawing:

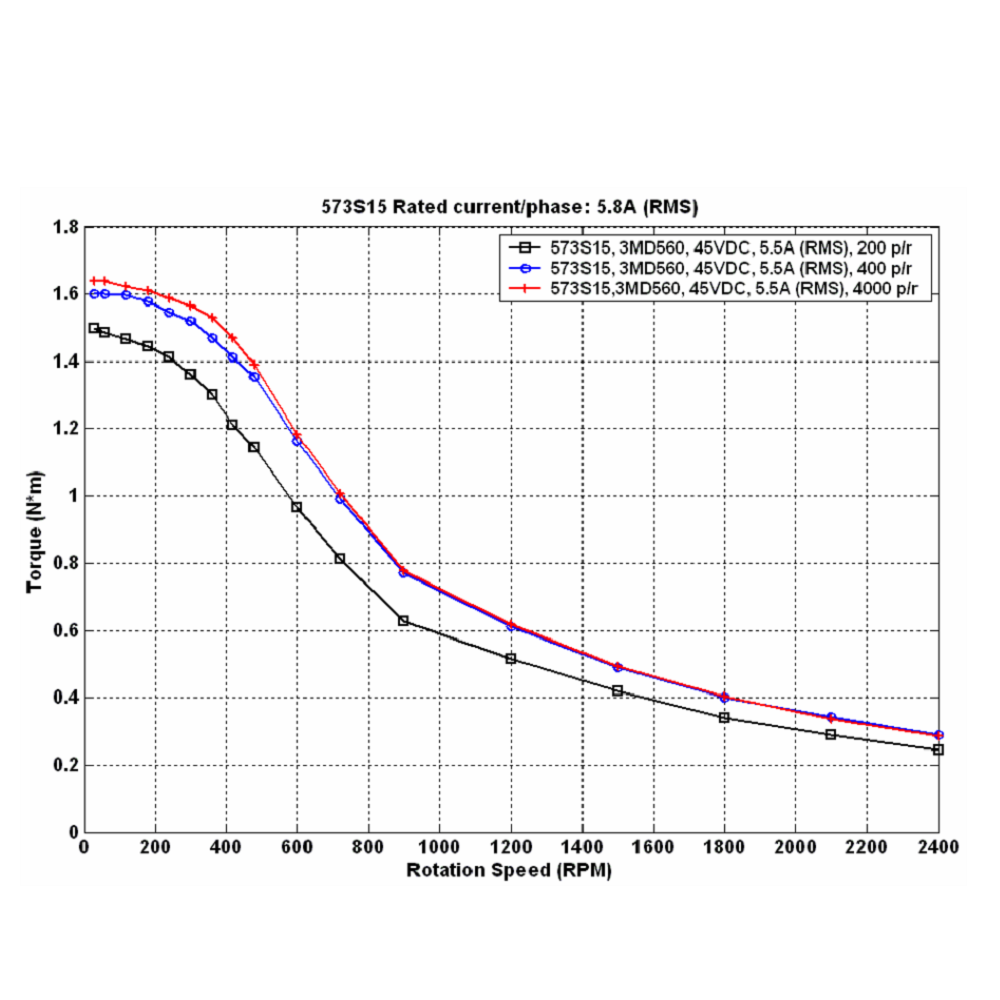

Torque Curve:
