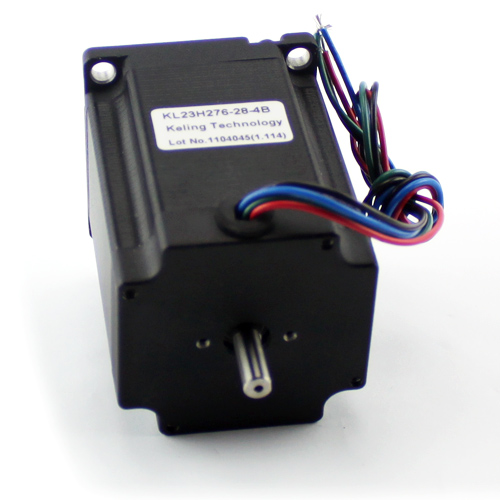

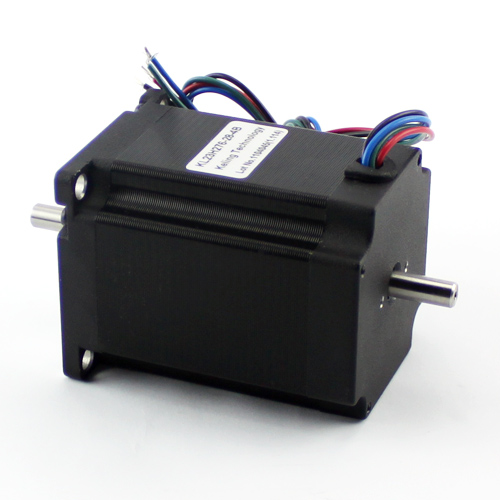

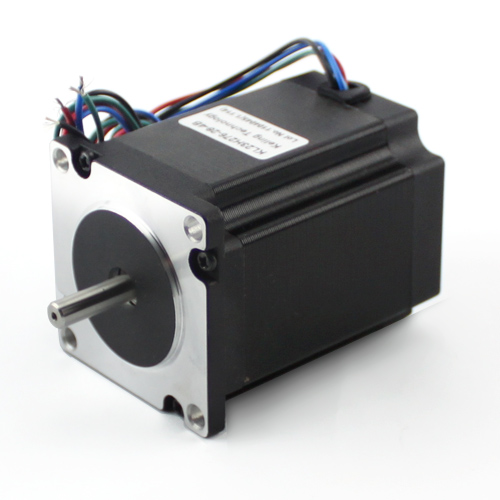

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)
Sale!

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)

Product in stock

This 270oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.

Price

$32.00 $27.95

You save: $4.05! (12.66%)

Loading Updating cart...

NEMA23 270oz/in 2.8A 1/4″ Dual Shaft Stepper Motor (KL23H276-28-4B)

Product Description

Specification:

KL23H276-28-4B

NEMA 23

Number Of Phase: 2<

Step Angle: 1.8 deg

Holding Torque: 270 oz.in

Rated Current/phase: 2.8 A

Phase Resistance: 1.13 ohms± 10%

Inductance: 3.6 mH ± 20% (1KHz)

Frame Size: 56.4 x 56.4 mm

Body Length: 76 mm

Shaft Diameter: Φ 1/4"

Shaft Length: 20.6 mm


Stepper Driver to control:

KL-5056 20-50VDC 5.6A Digital Bipolar Stepper Motor Driver -32 bit DSP Based


Connection:

A+

A-

B+

B-

BLK

GRN

RED

BLU




Drawing:

KL23H276-28-4B (6546 downloads)

Torque Curve:

KL23H276-30-8AT (1317 downloads)
