NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4B)
Product in stock
This 570oz/in NEMA23 stepper motor is well suited to medium sized motion control projects of all types.
Price
$54.95
$49.95
You save: $5.00! (9.10%)

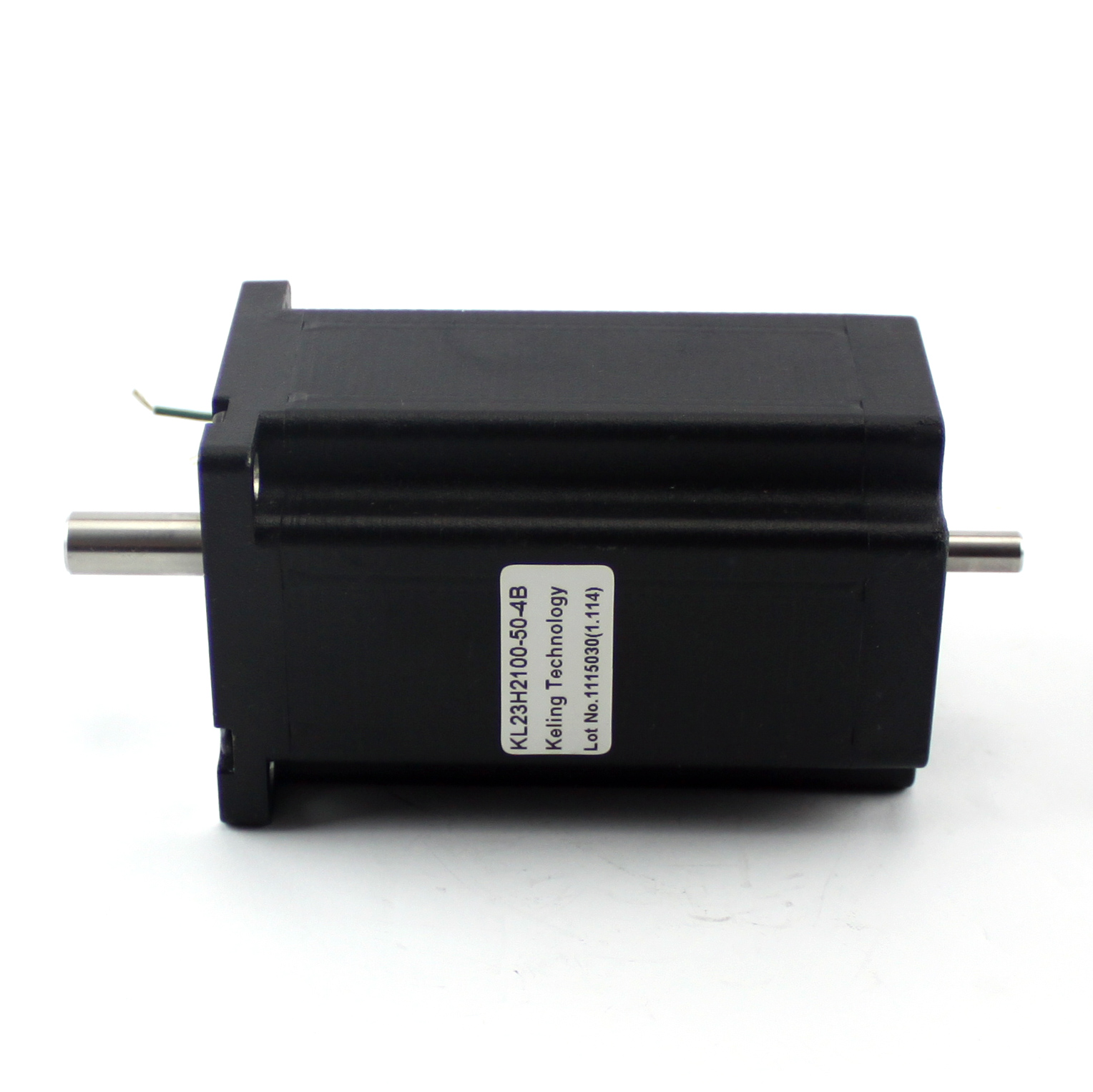

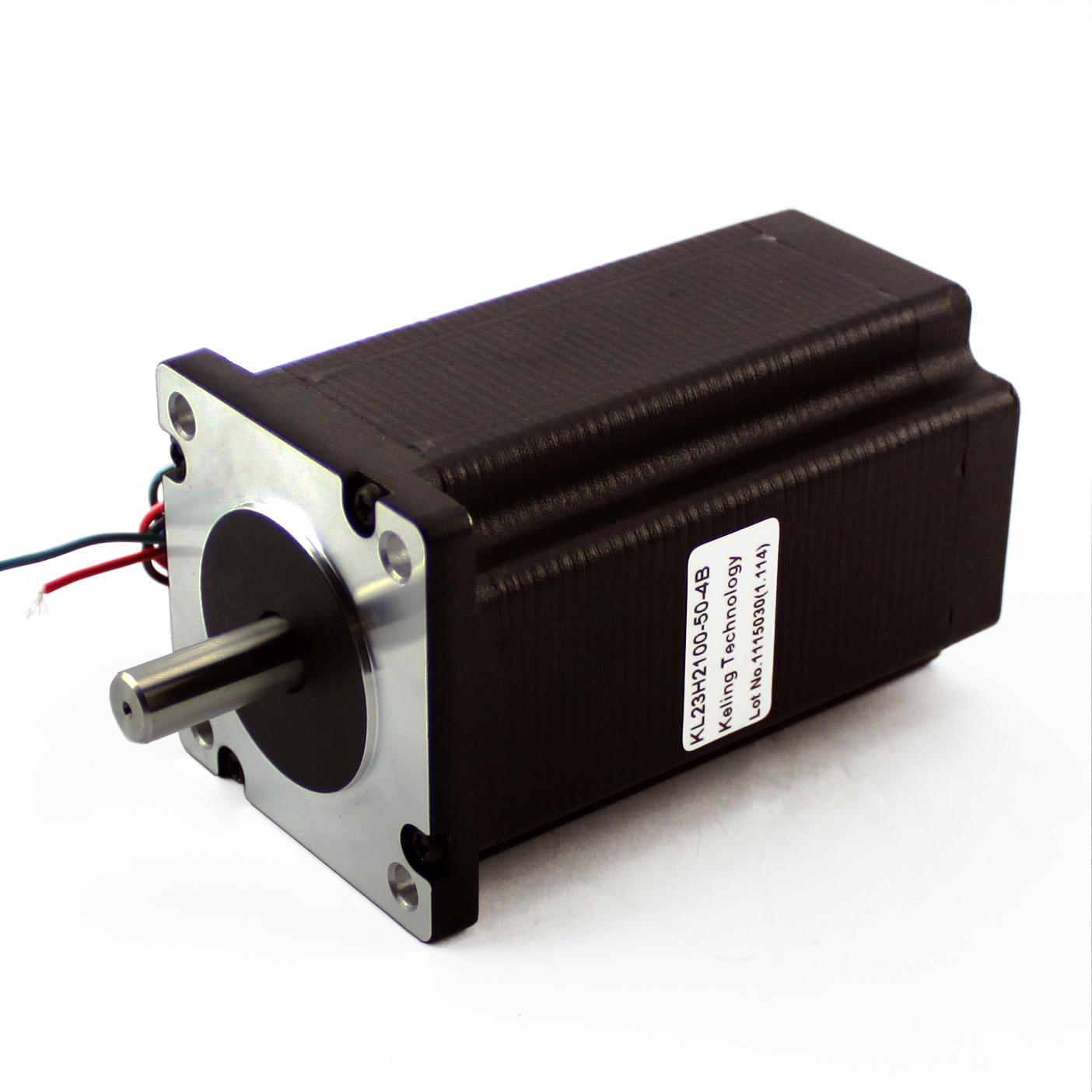

NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4B)
Product Description
NEMA 23 Frame KL23H2100-50-4B:
570 oz In. Hybrid Stepper Motor,
dual shaft ( Front Shaft 3/8", rear shaft 1/4")
1.8° /200 Steps Per Rev.
5 Amps Current Per Phase
4-Wire Bi-polar,
3 pound 10 oz
Black to A+
Green to A-
Red to B+
Blue to B-
Download:
Drawing:
KL23H2100-50-4B Drawing (1054 downloads)
Torque Curve
