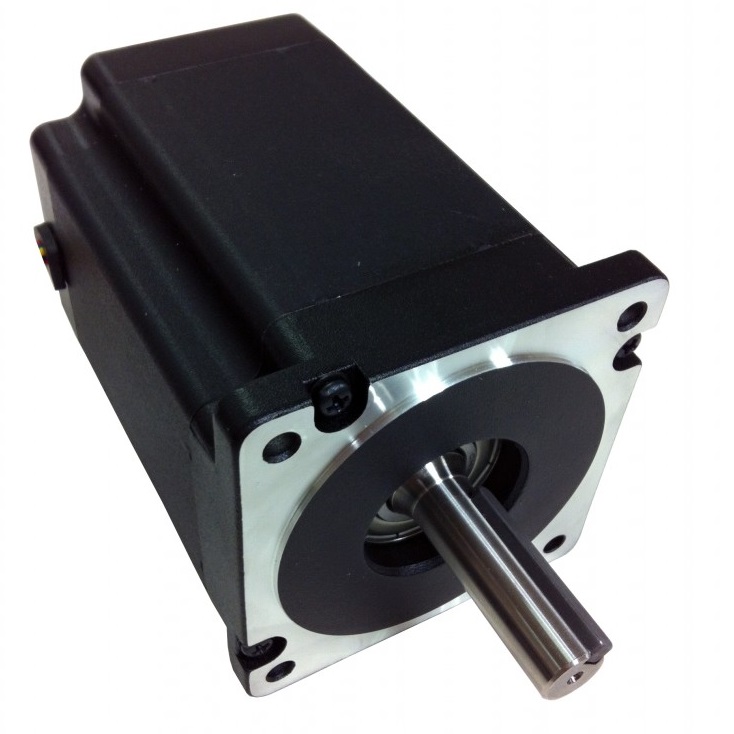

NEMA34 Stepper Motor–1200oz/in 6A Single Shaft (KL34H2120-42-8A )with key

Product in stock

Price

$119.99

Loading Updating cart...

NEMA34 Stepper Motor–1200oz/in 6A Single Shaft (KL34H2120-42-8A )with key

Product Description

Stepper Motor

KL34H2120-42-8A with key, 1/2" shaft

NEMA 34 Frame,

1200 oz in.

1.8° /200 Steps Per Rev.

6 Amps Current Per Phase ( Bipolar Parallel)

8-Wire

*You need to wire bipolar series, set the current about 3A

KL-2283 8.3 A Digital Bipolar Stepper Motor Driver, AC 80-220VAC - 32 bit DSP Based


Wiring:

Bipolar Parallel:

  • Blu/Yel : A+
  • Red/GRN: A-
  • BRN/ORG: B+
  • BLK/WHT: B-

Manuals & Downloads

KL342120-42-8A-KEY (3352 downloads)

KL34H2120-42-8A with KEY Torque Curve (344 downloads)
