NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 32 bit DSP Based: 282 oz-in

Product in stock

The Hybrid Servo Drive offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Price

from $169.95

Loading Updating cart...

NEMA 23 Closed Loop Stepper Motor System-Hybrid Servo Kit, 32 bit DSP Based: 282 oz-in

Product Description

The Hybrid Servo Drive offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective.

NEMA 23 Hybrid Servo kit (closed-loop stepper system):


one Hybrid Servo Driver KL-5080H, or ES-D508 (They are same driver)

one NEMA23 KL-23-2N-1000 Hybrid Servo Motor with one Encoder 1000 line

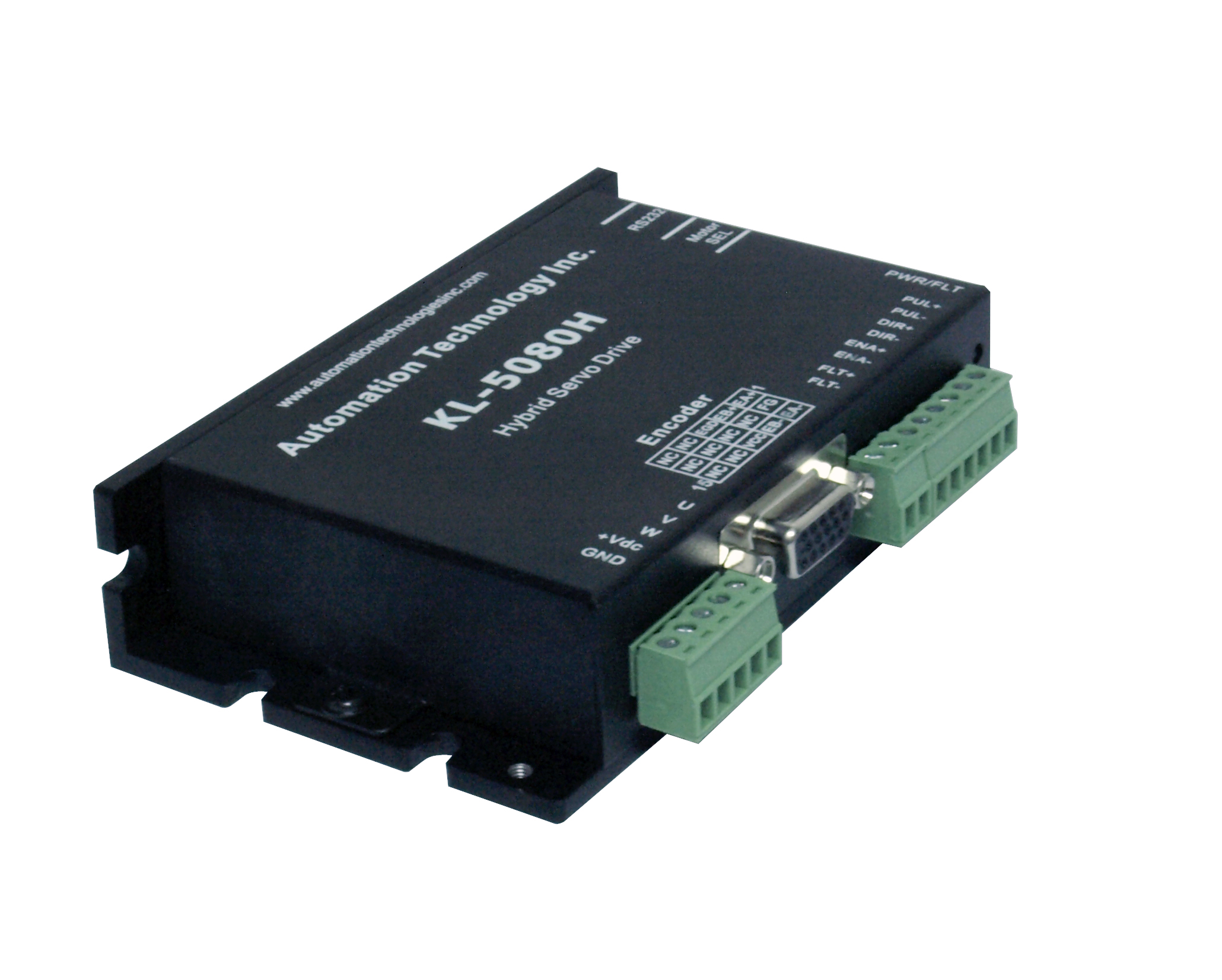

A: KL-5080H, 3-phase Hybrid Servo Driver for NEMA23 Hybrid Servo Motor


20-50V, 8.0A Peak, No Tuning, Nulls loss of Synchronization

Closed-loop, eliminates loss of synchronization

Broader operating range – higher torque and higher speed

Reduced motor heating and more efficient

Smooth motion and super-low motor noise

Do not need a high torque margin

No Tuning and always stable

Fast response, no delay and almost no settle time

High torque at starting and low speed, high stiffness at standstill

Lower cost

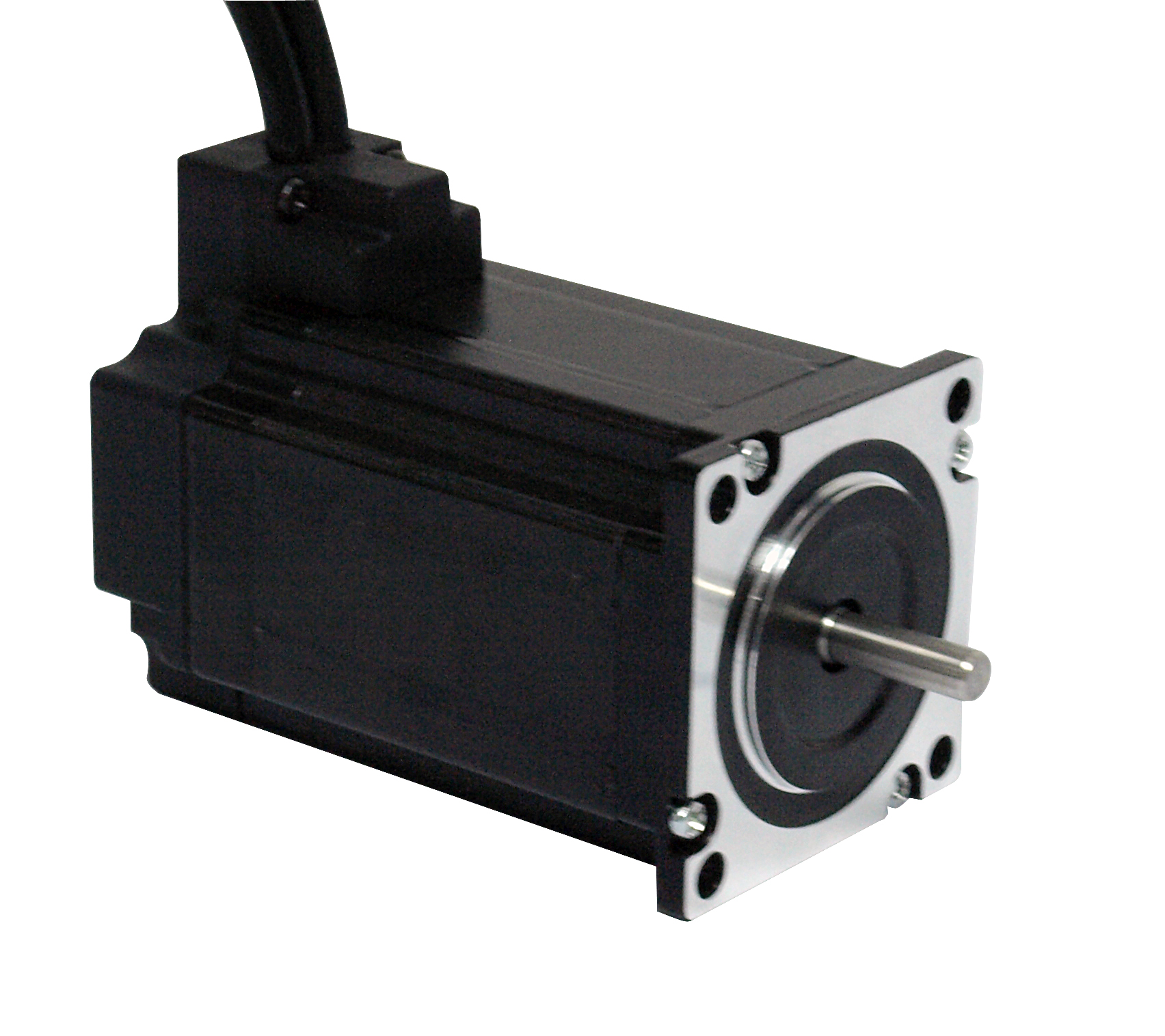

B: NEMA23 Hybrid Servo Motor, KL23-2N-1000, 1/4" shaft

Rated Torque 282 oz-in, 2 N-m, with one Encoder 1000 line

1000 pulses per revolution

Quadrature digital signals: 4000 steps per revolution

4000 / .05 pitch

80,000 counts per unit

U to Brown/Yellow

V to Blue

W to Black

If the wire color is different

Use: Blue to V,

Red to U,

Black to W,

Yellow/Green ( Not Connected)

Driver :

KL-5080H (5654 downloads)

Motor:

KL23-2N-1000 (4252 downloads)

Wiring Diagram

Hybrid Servo Motor (14233 downloads)

NEMA23Closeloopsteppermotorwiring (5811 downloads)





A Closed Loop Stepper Driver  video

A Closed Loop Stepper Driver Test video

Thank you Marty for your video to show the Wiring!
