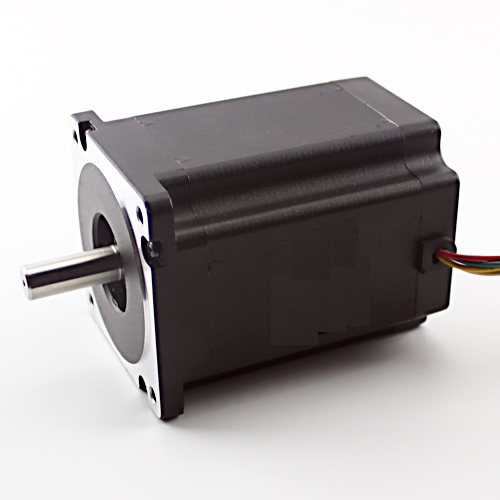

NEMA34 1200 oz-in Stepper Motor – 1/2″ Single Shaft (KL34H2120-42-8A)
Sale!

NEMA34 1200 oz-in Stepper Motor – 1/2″ Single Shaft (KL34H2120-42-8A)

Product in stock

Powerful NEMA34 stepper motor capable of precise, high energy positioning of large or high load machinery. With 1200oz/in and 6amp power handling, this stepper motor is up to demanding tasks.

Price

$119.00 $89.99

You save: $29.01! (24.38%)

Loading Updating cart...

NEMA34 1200 oz-in Stepper Motor – 1/2″ Single Shaft (KL34H2120-42-8A)

Product Description

NEMA34 1200 oz-in Stepper Motor - 1/2" Single Shaft (KL34H2120-42-8A)

1200 oz in.

1.8° /200 Steps Per Rev.

6 Amps Current Per Phase ( Bipolar Parallel)

8-Wire

Bi-polar

NEMA34 Frame


Wiring:

Wire as Bipolar Parallel:

  • Blue/Yellow to A+
  • Red/Green to A-
  • Brown/Orange to B+
  • Black / White B-

Wire as Bipolar Series:

  • Blue to A-
  • Green to A-
  • Brown to B+
  • White to B-
  • Red and Yellow Connect together
  • Black and Orange Connect together

Manual:

KL34H2120-42-8A (3958 downloads)

KL34H2120-42-8AT (222 downloads)
