CNC Enclosure:  BX4 – 600 x 400 x 250 mm Enclosure Box

• 23.5″ x 16 x 10″
• 18 lb
• Ships assembled.
•  Nema 2 IP 55
• Cal 18 steel.
• 20″ x 13.5″ Sub-panel
• Box with the panel 1 or 2 or 3
• Dimension 30lbs
  24*17*11

PANEL 1 :  BPBC

• BACK PANEL:
  1 x MABPBC-CNC BACK PANEL
• CONNECTOR BOARD:
  1 x C48 -EXT_E-STOP & PROBE CONNECTOR BOARD
• PWR NEMA:
  3 x A54 – PWR NEMA 5-15R SNAP-IN/FO
• Panel Mount:
  2 x A30 – RJ45 Pass Through Panel Mount
• Box Fan:
  1 x A44 – Box Fan +24vdc
• DB 25 Ribbon Cable:
  1 x IDC26-DB25 – LPH 26 Pin to DB 25 Ribbon Cable

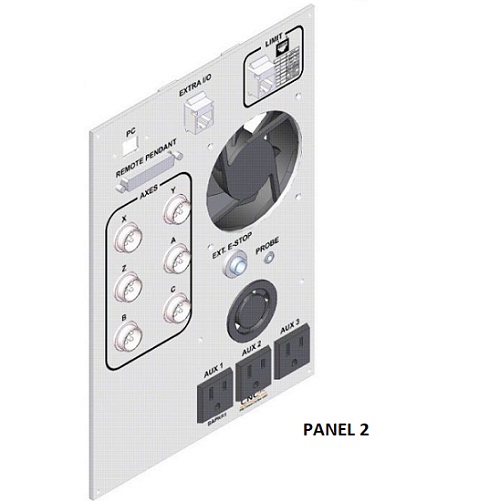

PANEL 2 : BPAR  with 4 pins connector ( Stepper Motors)

Summary

PANEL 3 :  BPAK with 4 pin connectors ( Servo/Stepper Motors)

• BACK PANEL:
  1 x MABPAQ-CNC BACK PANEL
• CONNECTOR BOARD:
  1 x C48 -EXT_E-STOP & PROBE CONNECTOR BOARD
• PWR NEMA:
  2 x A54 – PWR NEMA 5-15R SNAP-IN/FO
• Panel Mount:
  8 x A30 – RJ45 Pass Through Panel Mount
• Box Fan:
  1 x A44 – Box Fan +24vdc
• DB25 Gender Changer:
  1 x A2 – DB25 Gender Changer, Female to Female.
• Internal Stepper Panel Cable:
  1 x A39 6 FT Power Cord – Standard System

Power Switch for this box: Power Switch
