400W 1.27NM AC Servo Motor Driver Kit NEMA24 23Bit Absolute CNC 3000RPM

Product in stock

Price

from $349.95

Loading Updating cart...

400W 1.27NM AC Servo Motor Driver Kit NEMA24 23Bit Absolute CNC 3000RPM

Product Description

400W 1.27NM AC Servo Motor Driver Kit NEMA24 23Bit Absolute CNC 3000RPM

Rated Voltage (Vac): 200-230 VAC

1: 400W 1.27NM AC Servo Motor,  Driver Kit without Cables;

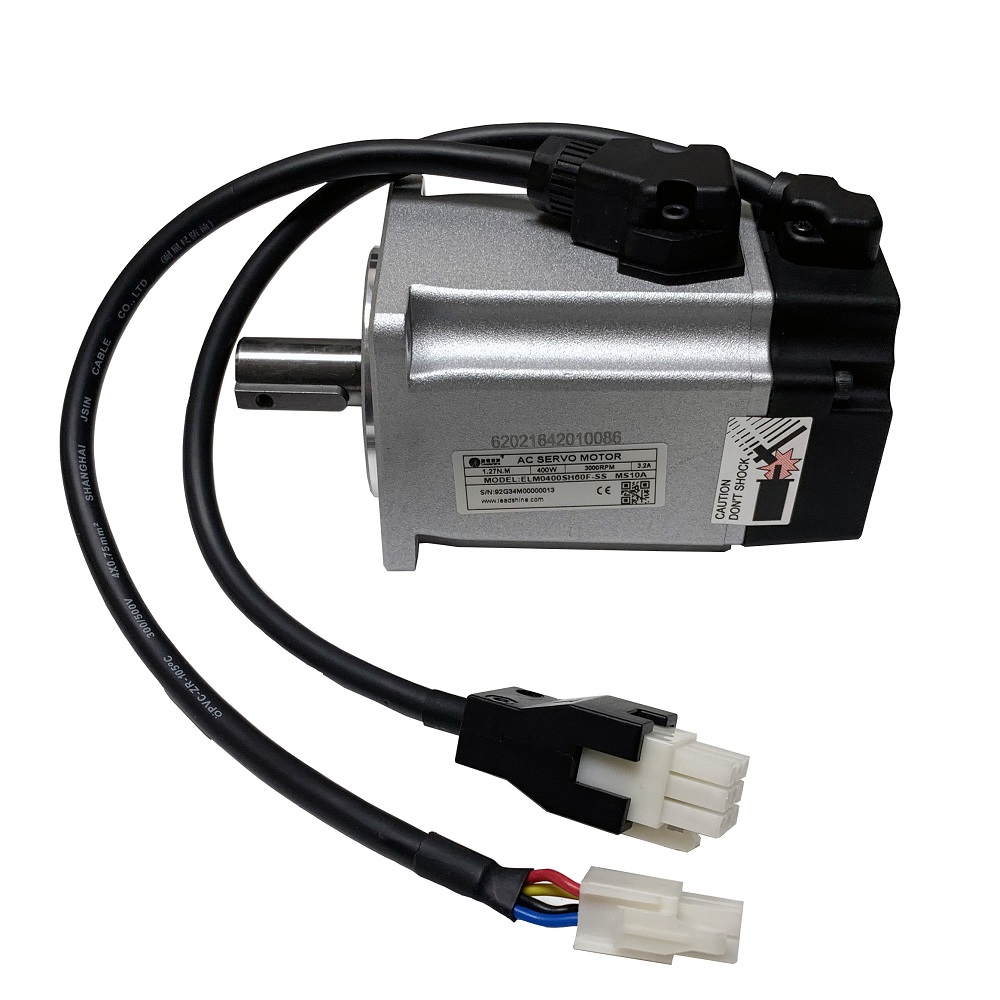

  • AC Servo Motor  ELM0400LH60F-SS

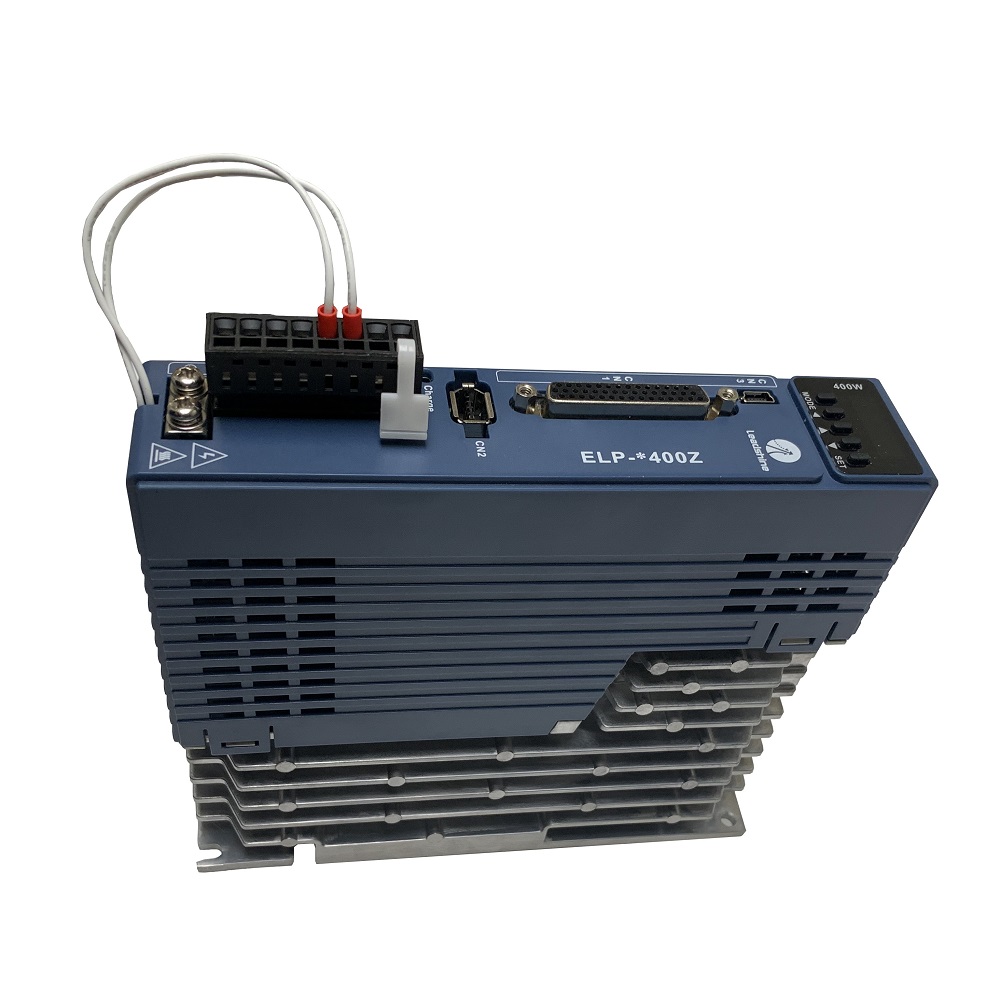

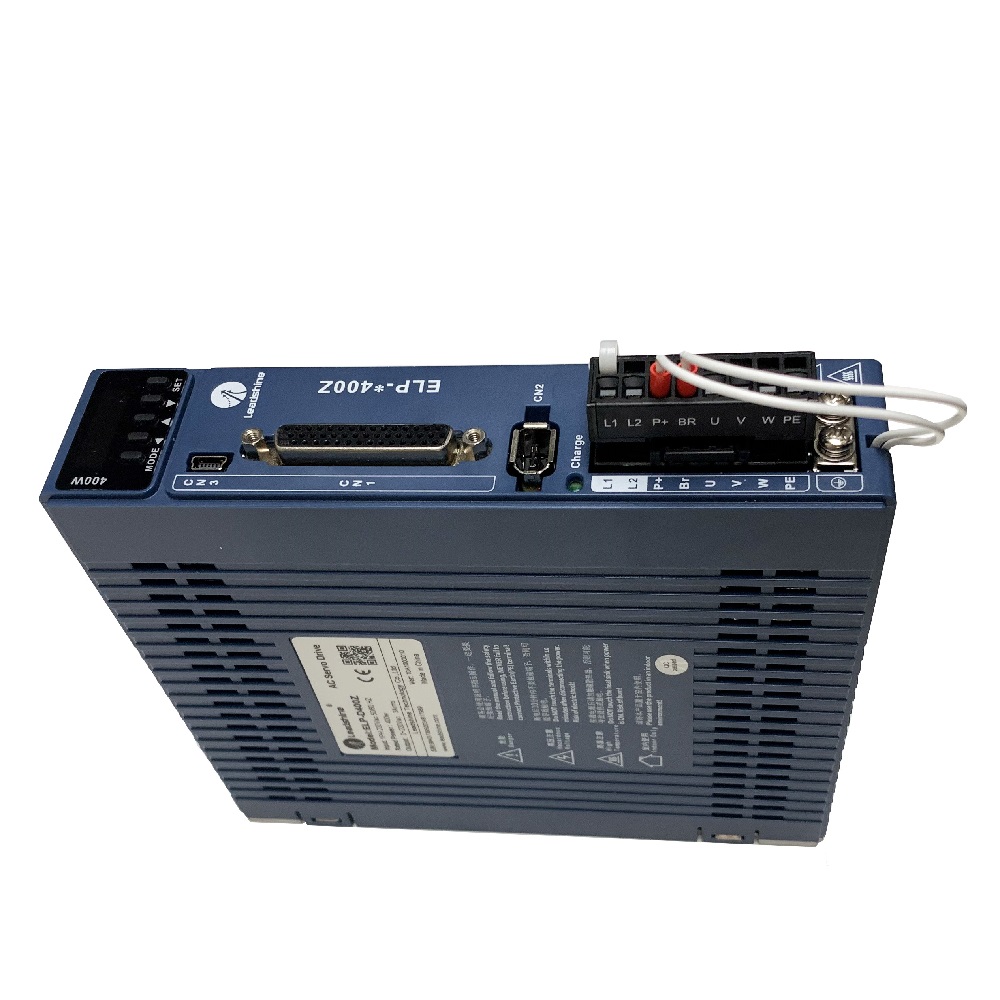

  • AC Servo Drive  ELP-D400Z

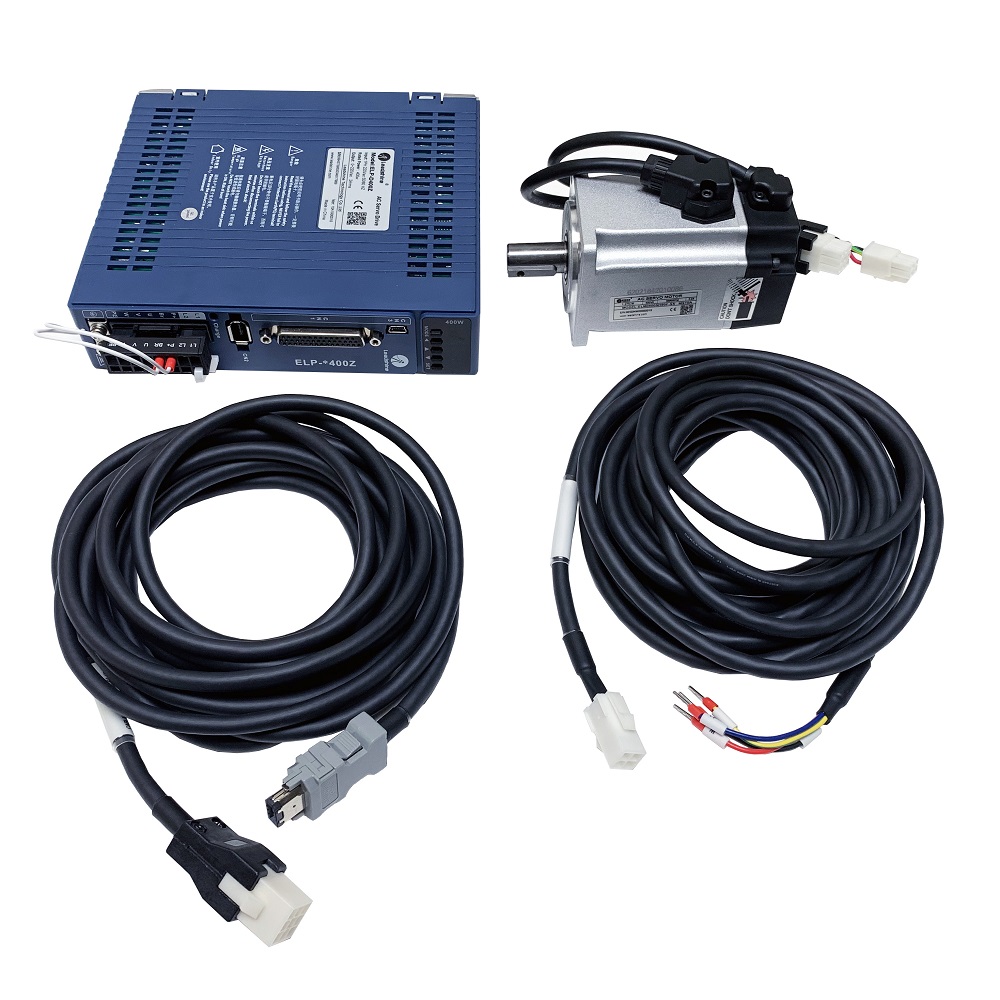

2: 400W 1.27NM AC Servo Motor,  Driver Kit with Cables;

  • AC Servo Motor  ELM0400LH60F-SS
  • AC Servo Drive    ELP-D400Z

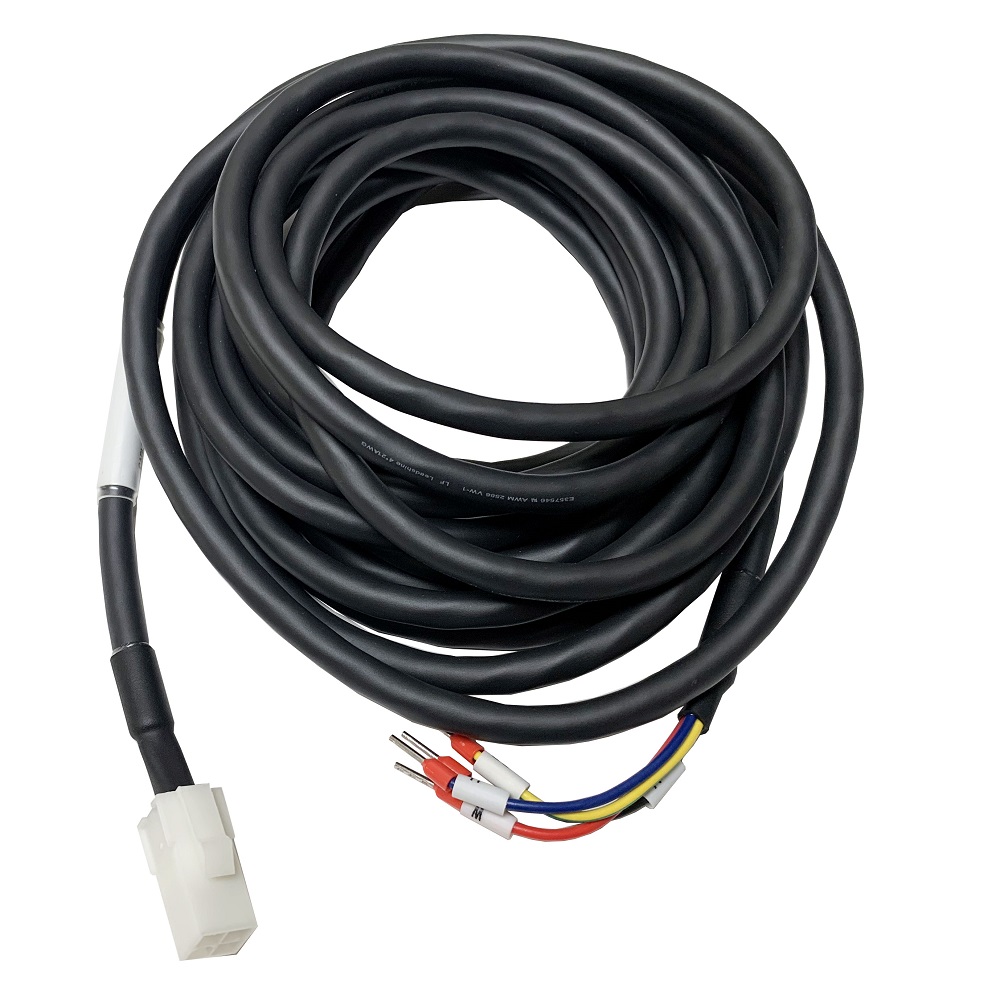

  • Power cable  (Optional length)

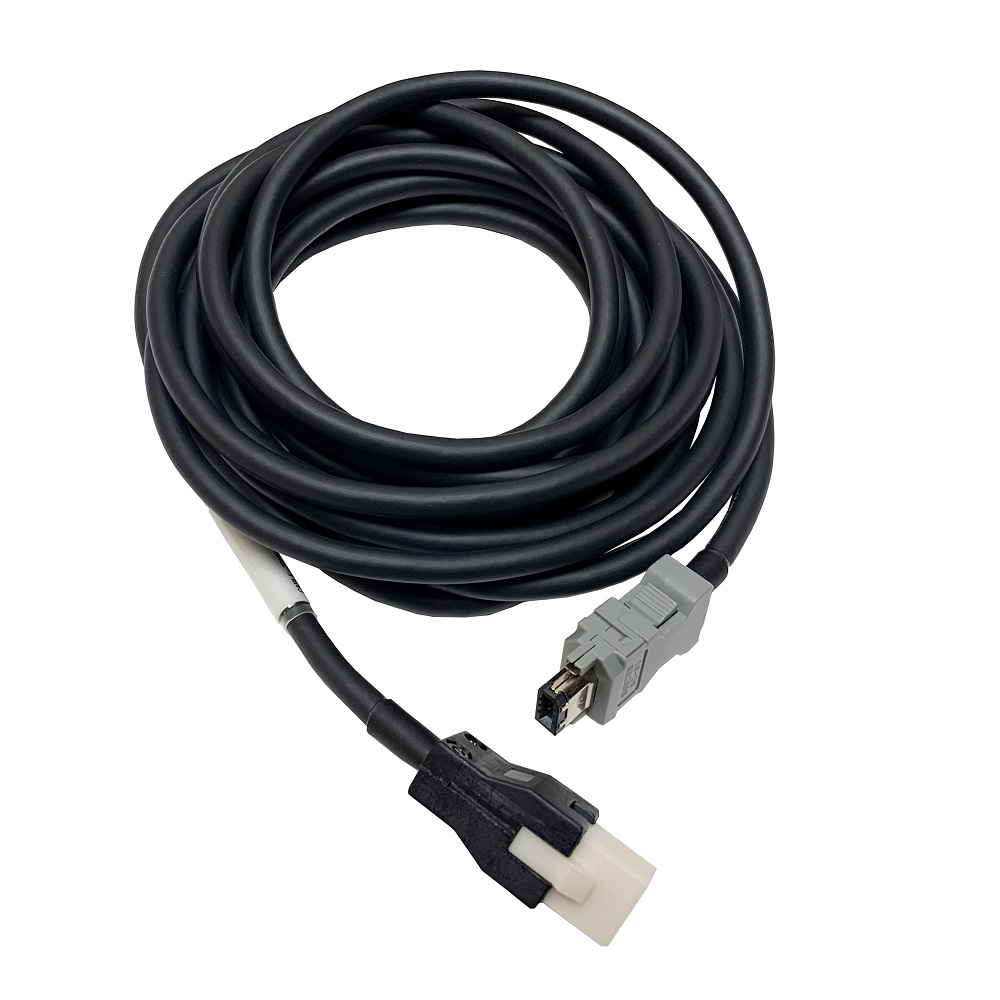

  • Encoder cable (Optional length)

NEMA24 23Bit Absolute CNC 3000RPM

It is made ( OEM ) from Leadshine

Rated Voltage (Vac): 200-230

Rated Power (w): 400

Rated Torque (N.m): 1.27

Peak Torque (N.m): 4.46

Rated Speed (rpm): 3000

Peak Speed (rpm): 6500

Rated Current (Amp): 3.2

Peak Current (Amp): 11.2

Torque Const (N.m/Amp): 0.4

Back EMF Const (V/krpm): 23.5

Resistance (Ω): 2.64

Inductance (mH): 7.9

Inertia (kg*m^2*10^-4): 0.56

Poles: 10

Encoder type: 23bit absolute

Protection level: IP65


Manuals & Downloads:

ELM0400LH60F-SS motor drawing (392 downloads)

ELP AC Servo Driver User Manual (750 downloads)


*One Year Warranty*
