Product Description

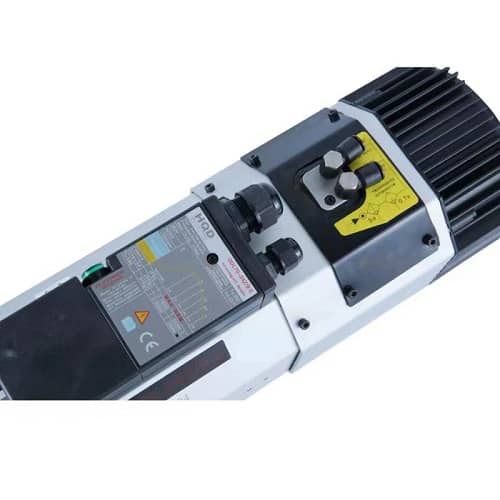

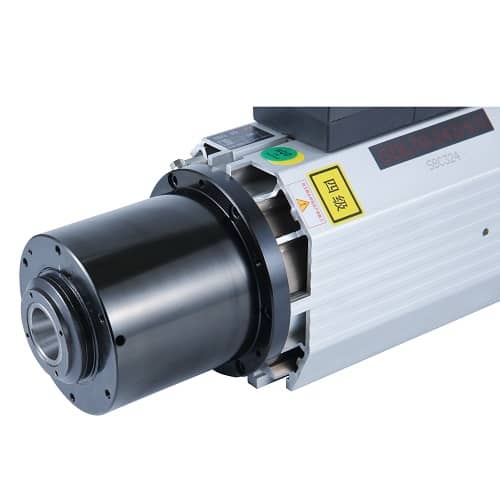

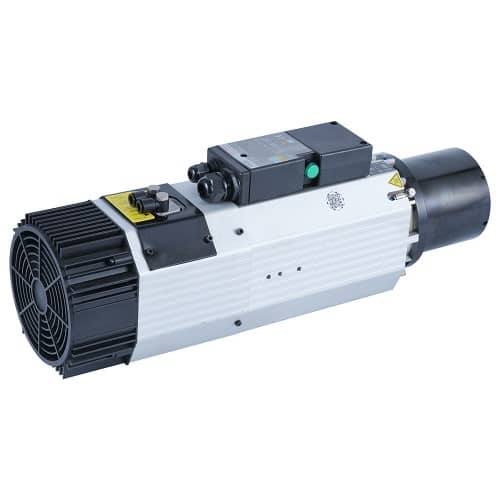

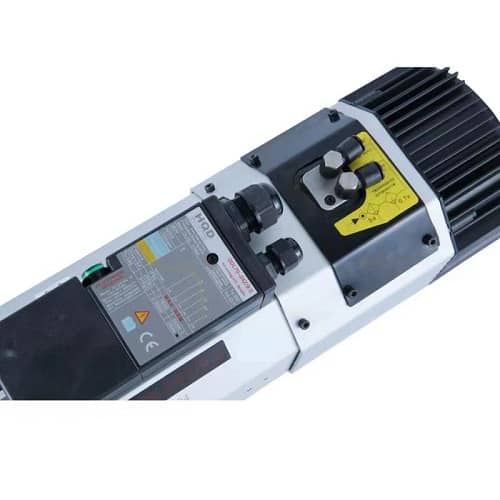

ATC Spindle Motor 9KW Air-cooled ISO 30  220V

  24000rpm Long Nose Replace

A three-phase asynchronous Automatic Tool Change (ATC)  Spindle motor

Rated power(KW): 9KW

Rated voltage(V): 220Vac  (if you need 380VAC, pls let me know)

Rated speed(rpm): 12000~24000rpm

Current(A):  32A

Frequency(Hz): 800HZ

Cooling: Air-cooled

Bearing type: 2×7011C P4 , 2×7009C P4, We used high quality Bearing

Length/width/height (mm): 510/133/133

Lubricate:  grease

Joint of nose:  ISO30

Weight: 35Kg

Industrial Applications: CNC Router Machines

Certification: ISO9001-2000

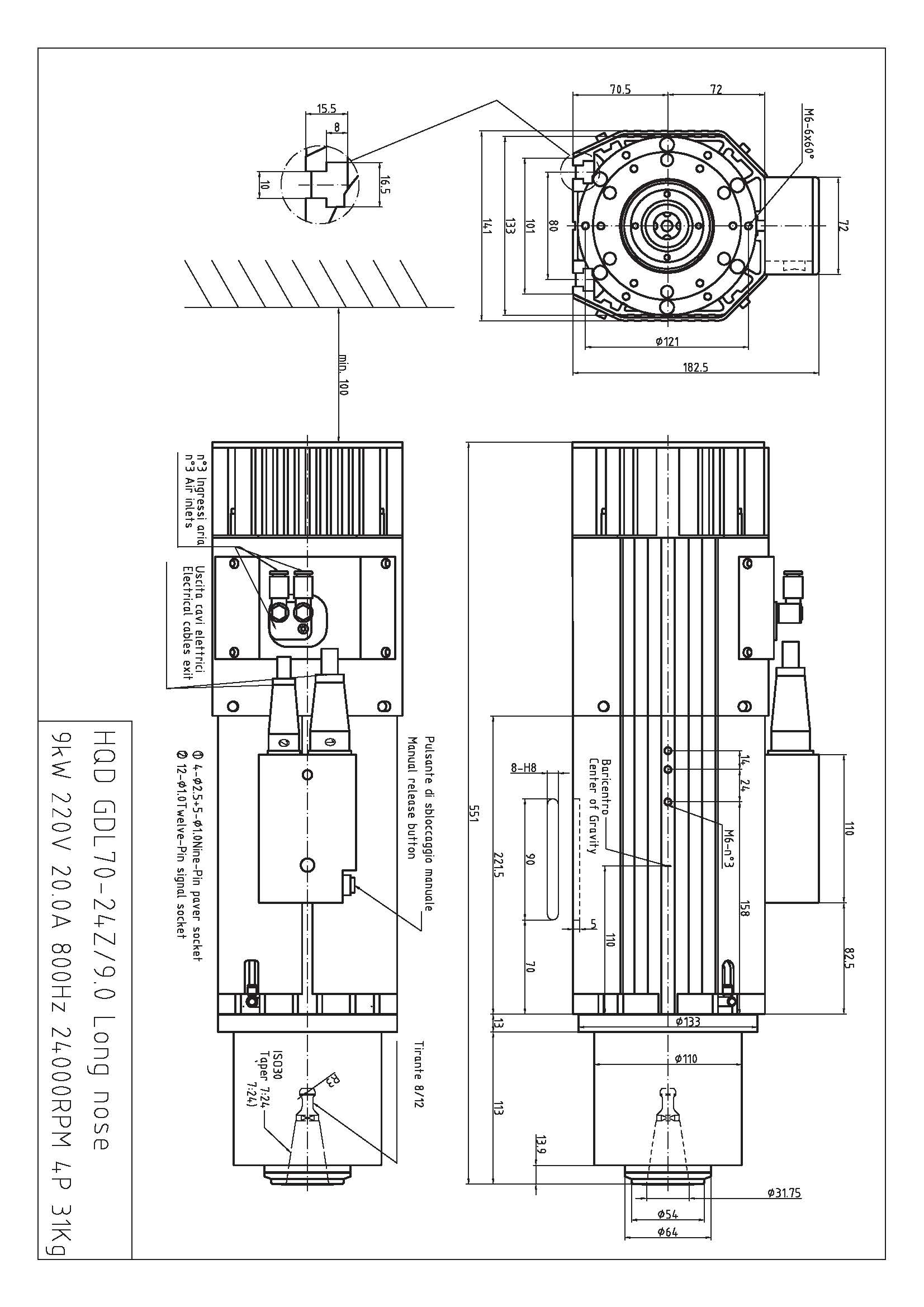

Mechanical Drawing ： 9KWSpindleDrawing (564 downloads)

Connection Method : 9KW Air-Cooled Spindle Connection (517 downloads)

Wiring Connection: 9KW Spindle Wiring Connection (493 downloads)

One Year Warranty
