CNC Handle DSP Controller System for 3 Axis CNC Router Control with USB

Product in stock

Price

$399.00

Loading Updating cart...

CNC Handle DSP Controller System for 3 Axis CNC Router Control with USB

Product Description

A11 CNC Handle DSP Controller System for 3 Axis CNC Router Control

New version  with USB interface

DSP CNC Router Control A11 Specifications:

  • Brand NEW! English Version RichAuto A11E CNC DSP controller 3 axis better than 0501 DSP controller


  • Specification :

    Features
    1. New three-axis linkage motion mode to achieve comprehensive controlling
    2. Support drive and spindle error alarm function
    3. Large storage space, perfect U disk compatibility, fast reading speed, safe  and reliable U disk-processing.
    4. Support intelligent file checking function.
    5. Parameter backup and restore function to prevent the loss of important  parameters.
    6. High anti-jamming intensity passes many CE tests.
    7. Intelligent processing memory, supports power fail safeguard and breakpoint  function.
    8. Definable I/O interfaces provide customers a wide range of development  platforms.

  • Parameters



Product Model

RichAuto----A11E

CPU

DSP

Interna Memory

512MB

Display Screen

128*64 Monochrome LCD

Communication Port

U disk,USB cable

Controlled Axis Number

3 axes

Control Signal

Differential signal

Drive System

Step motor/servo motor

Min.Input Unit

0.001mm

No Volt Protection

support

Breakpoint ProcessingFunction

8

External Power Supply Voltage

24V DC

Manual Mode

Continuous,point move,distance

Interpolation Way

line,arc

Soft/Hard Limit

support

Max.PulseFrequency

1M/S

Password Protection

support

Support Language

Simple Chinese/traditional Chinese,English,other languages

Standard Configuration

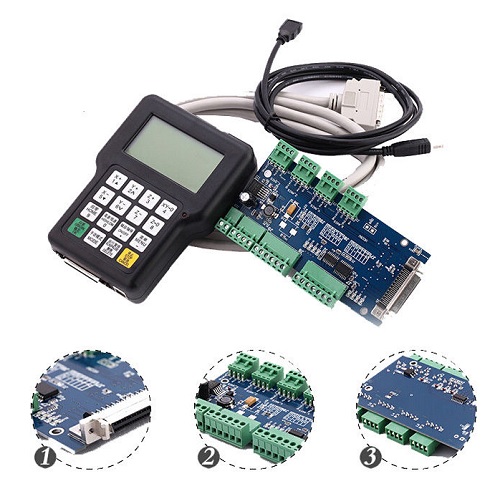

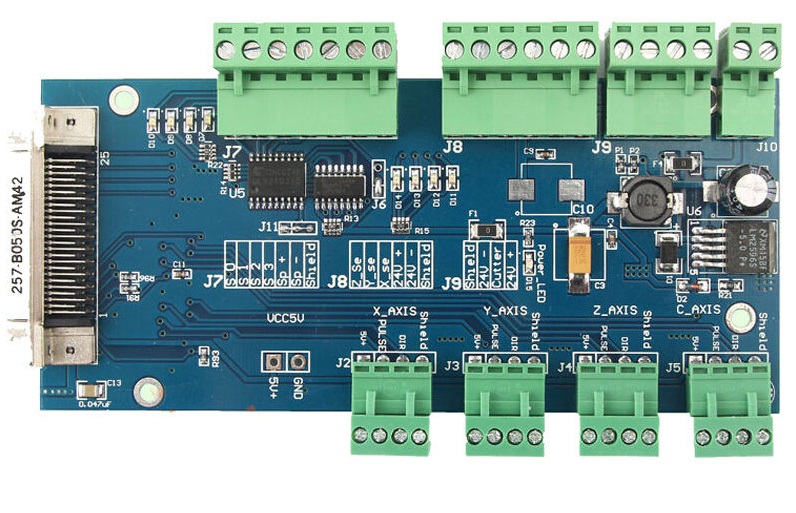

(1)DSP Handle;(1) m 50core cable (1)USB cable; (1)8 I/O Wiring board;(1) Maual



DSP Controller for CNC Router Characteristic:

New three-axis linkage motion mode to achieve comprehensive controlling
Support drive and spindle error alarm function
Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters.
High anti-jamming intensity passes many CE tests.
Intelligent processing memory, supports power fail safeguard and breakpoint function.
Definable I/O interfaces provide customers a wide range of development platforms.
DSP Motion Control Control System Cautions:
1. Don't use this product in strong magnetic filed or interfere environments;
2. Don't plug U Disk while it is running a file;
3. Protect it from water, moist, dust and fire;
4. Protect it from metal materials getting into the cover;
5. Forbad to open the cover, there is no any user maintainable parts inside;
6. Plug U Disk and other lines gentle.

DSP handheld controller can work without computer, easy operation and fast working speed. CNC Controller is the most important part for one CNC machine.

So here are some more points to introduce:
1). Support the standard G code, PLT format instructions; support domestic and international mainstream CAM software, such as: Type3, Art cam, UG, Pro / E, Master CAM, Cimatron, Wentai etc.
2). Provide with power-down protection. Instantaneous power processing system to automatically save the current processing of information
3). Support breakpoint memory, save 8 different breakpoint processing information.
4). Multicoordinate memory function. Provide nine working coordinate system,
5). Support online adjust spindle operating frequency. 1 - 8 threshold can be processed directly adjust up and down without suspend processing.
6). Support adjust working speed ratio online.
7). Simply manual operate mode: provides continuous, step (crawl), distance, manual operation became more simple and convenient.
8). Identifies M code, F code and other development commands, can open a special code based on user needs.
9). Comes with USB communications port, file transfer efficiency can be directly read U disk, card reader file, Plug and Play.

10). System can support automatic dynamic upgrades, convenient to remote operation, remote maintenance.

Also the DSP controller Manual can be sent for free here, welcome to contact us.
