Plasma Cutter 3 axis Controller

Product in stock

Price

from $1,519.00

Loading Updating cart...

Plasma Cutter 3 axis Controller

Product Description

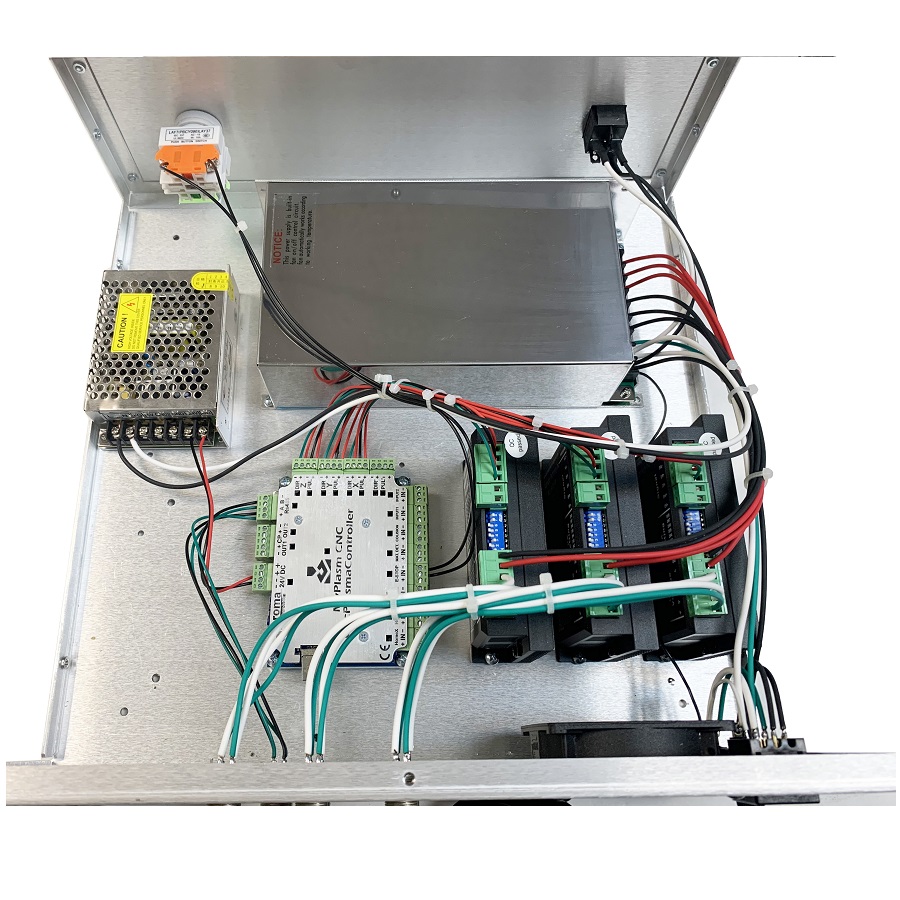

We used the Plasma Cutter Electric DIY Kit, Made this 3 axis controller

It is assembled and tested, Ready to run

It has Free Software

Contact us if you need to update to 4 axis controller:

Add a Stepper driver:

KL-5056E Digital Stepper Driver-32 bit DSP Based

Add a Stepper motor

NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable

automationtechinc@yahoo.com / 847-984-0882

Installation Manual :

Click for Installation Manual

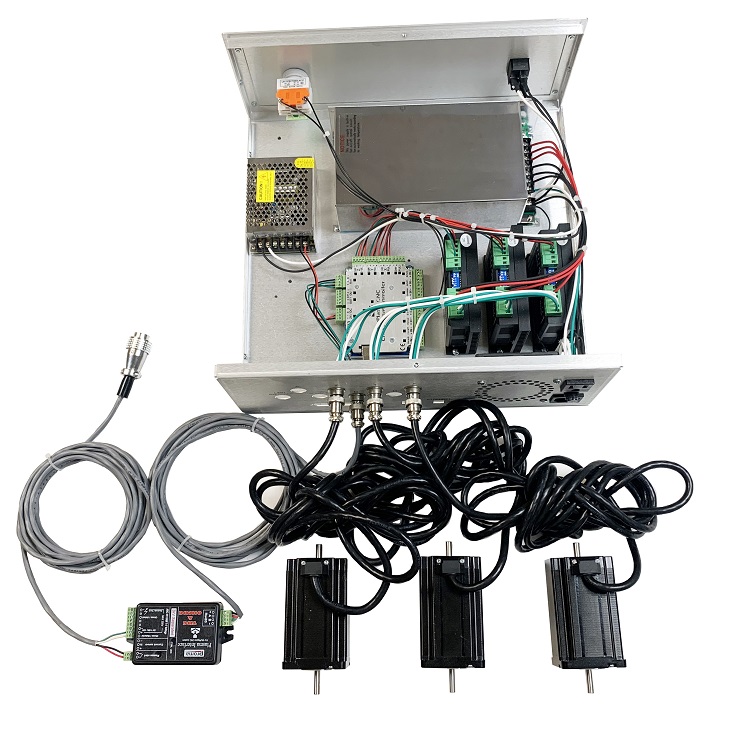

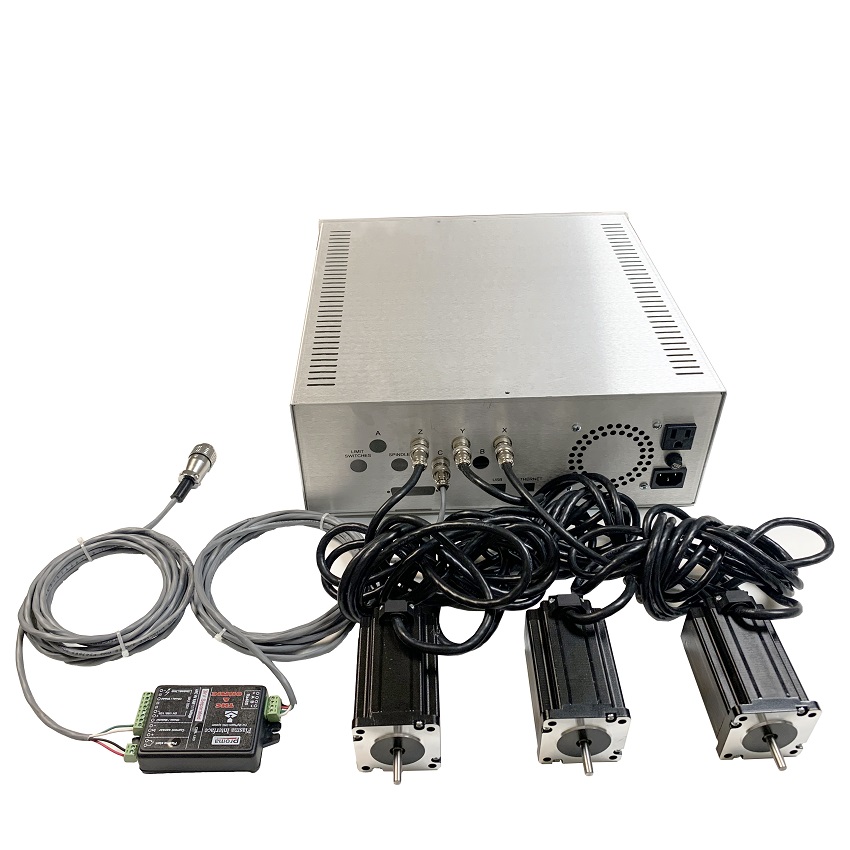

1: 1 Pcs  MyPlasma Controller, THC Torch Height Control,  Free Software

Plasma Controller-THC Torch Height Control

2: 3 pcs KL-5056E Stepper Driver

KL-5056E Digital Stepper Driver

3: 3 pcs Stepper Motor, 570 oz in  KL23H2100-50-4BMC) with Cable, 12 feet

NEMA23 570oz/in 5A 1/4” Dual Shaft Stepper Motor (KL23H2100-50-4BMC) with Cable

or this motor

NEMA23 570oz/in 5A 3/8” Dual Shaft Stepper Motor (KL23H2100-50-4BC) with Cable

4: 1pc 48Vdc, 12.5A Switching Power Supply

48VDC/12.5A Switching CNC Power Supply

5: 1 pcs 24V, 1A , 5V, 1A Switching Power Supply

24V 1A Switch Power Supply with 5V/2A

6: 22 Feet cable for THC Torch Height Control  ( Total)

7: Computer ( Optional)

DELL LAPTOP LATiTUDE WINDOWS 10 CORE 2 DUO 4GB RAM (Rebuilt)

Video:

Plasma CNC Cutter controller testing video

Wiring Diagram:

Proma MyPlasma Controller Wiring Diagram (1776 downloads)

Installation Manual :

Click for Installation Manual

Download Software:

Click to Download Software

**If software shows "Connection Error": first check if the power supply is 24V. If yes, hold SHIFT key and "Click to Rest" in software for updating the firmware.**

One Year Part Warranty
