B57 – Linear ATC Motion Control System for Stepper/Servo Motor
Product Description
The control systems can be widely applied to machinery, advertisement, woodworking, Jade carving, mold engraving machines, laser, flame, plasma cutting machines, woodworking lathe, dispensing machine and so on in the industry machine control field.

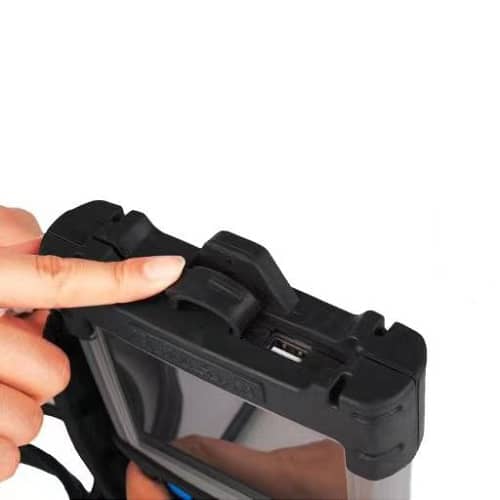

DSP is the core control system, High-speed processing operation which the microcontroller and PLC systems can’t compare with. Embedded structure, high degree of integration, Strong stability, easy to installation and operation; support U disk, removable storage card reader, with USB interface, high speed transfer, plug and play. Fully offline work.

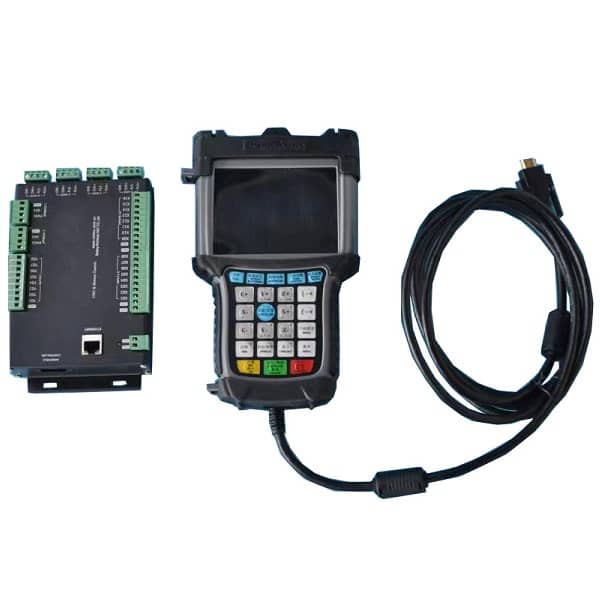

The control system contains the following parts:

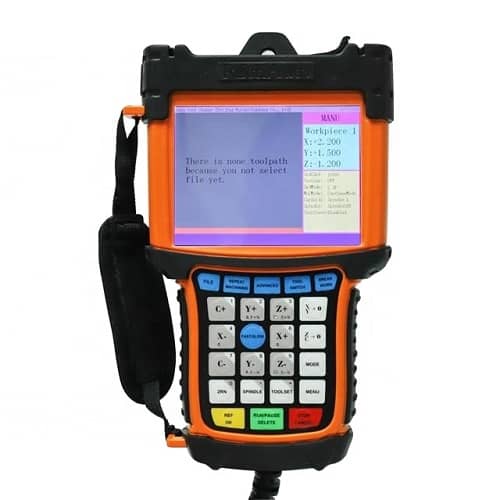

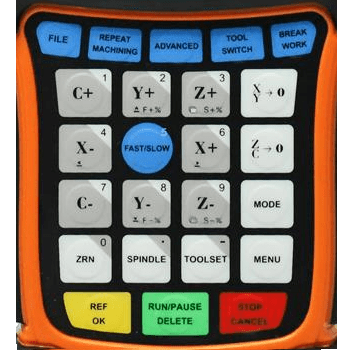

- 1pc Handheld controller

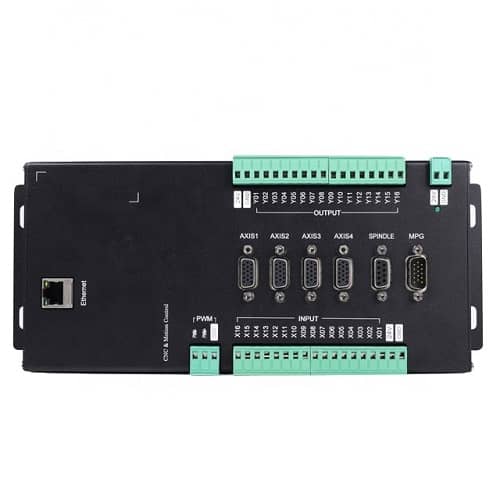

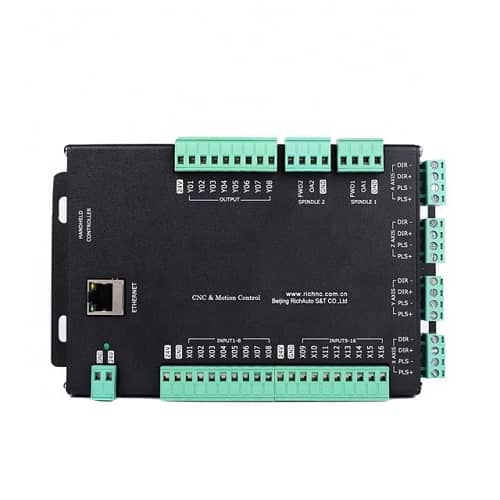

- 1pc I/O board
- 1pc 19-pin HDMI data transmission cable
- 8GB USB flash drive
Features:
- 5 inch color screen, support tool path simulation and G code display during processing
- Supports 8 tools, tool track location can be customized
- New technology if tool change and tool setting method, greatly improve the efficiency of tool setting process
- Identify tool change T instruction, support multiple tool changing
- Detection mechanism such as tool holding, tool magazine in place, hard limit etc. Ensure security of the operation
- Support tool change spindles
- System parameters can be backed up to external storage space in file format
- Extensive application of mechanical engraving filed, such as advertising, woodworking, and stone carving machine
|
Model No. |
B57 |
CPU |
DSP |
|
Display |
5 color screen |
BuilD-in Memory |
1G |
|
No. ofLinkages axis |
3 axes |
Input accuracy |
0.001mm |
|
Power failure Protection |
Support |
BreakpointRestore |
Support |
|
Controllable I/O |
16I/O to 32I/O |
Power Supply |
DC 24V/3A |
|
Running Speed |
Real time adjustable |
Drive System |
Stepper/Servo |
|
Signal type |
Differential |
Data Transmission |
U Disk, Network |
|
Max. Pulse frequency |
10MHz |
Spindle Control |
Multiple step speed, Analog |
|
Hand Wheel operation |
Optional |
Interpolation methods |
Line, arc,Spline curve |
|
Tool change instruction |
T |
Automatic tool setting |
Mobile toolset/fixCalibration |
|
File reading |
Nc/u00/plt/DXF/mmg |
||
|
Code Support |
Standard G codes, M codes and otherCustomize codes |
||
|
Languages |
English, other languages can be customized |
||
|
Standard Configuration |
Handheld controller 1 PC, 19-pin HDMI cable 1 PC, I/O board 1 PC |
||
If you need the Following Items, Pls let us know
We will get for you
Three-Axis Motion Control System: B51
Three-Axis Cylinder Multi-tool Head Control System: B55
Four-Axis Motion Control System: B58
Three-Axis Jade Carving Control System: B517
Four-Axis Automatic Tool change Control System: B581
Wiring Diagram:
B57-Stepper Board Wiring Diagram (379 downloads)
B57-Servo Board Wiring Diagram (362 downloads)
