CNC Router Rotational Axis, the 4th Axis for 4′ x 4′ or 4 ‘ x 8’ machine

Product in stock

Price

$699.00

Loading Updating cart...

CNC Router Rotational Axis, the 4th Axis for 4′ x 4′ or 4 ‘ x 8’ machine

Product Description

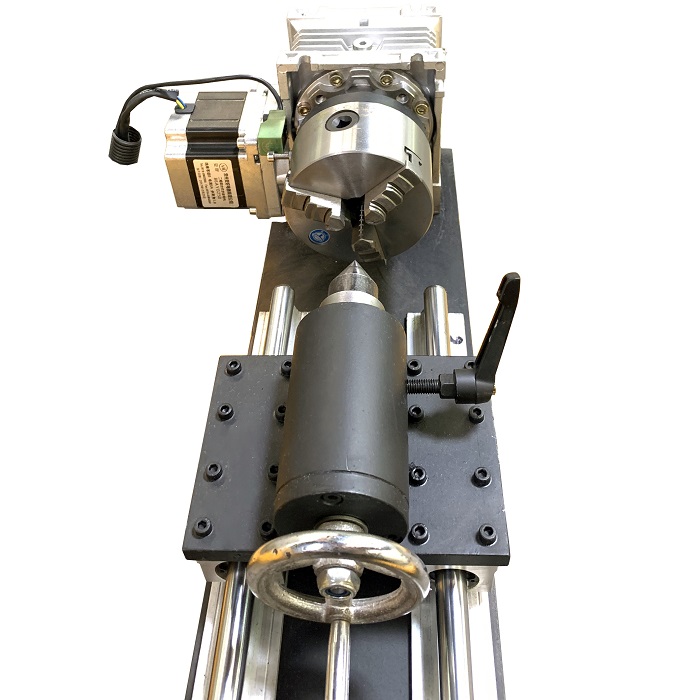

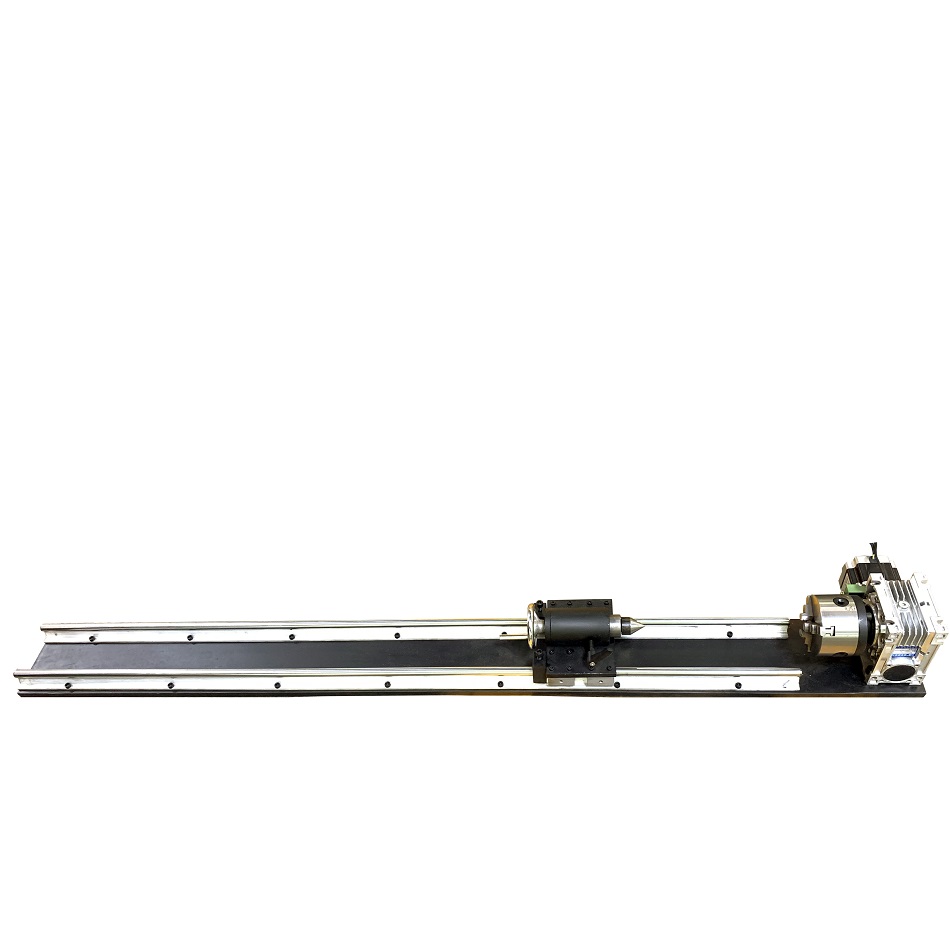

See pictures

CNC Router Rotational Axis, the 4th Axis for 4' x 4' or 4 ' x 8' machine

Nema 34 Stepper Motor, Gear ration:  1/20

Yellow : A+

Blue: A-

Green: B+

Red: B-



3 Jaws

Chuck diameter: 4"

Chuck bore: 0.6"

Chuck bore depth:0.75"

Chuck center to bottom plate: 3.6"

Maximum distance between centers: 48"

Mininum distance between centers:

Width : 6.25"

Width including motor: 9.25"

Length: 63"

Height:6.24"

Rail length: 55”

Wiring Diagram & Downloads

Rotary Drawing (99)
