CNC Router 400W Air Cooling Spindle Motor ER11, Mach3 PWM Controller, 52mm Mount

CNC Router 400W Air Cooling Spindle Motor ER11, Mach3 PWM Controller, 52mm Mount

Product in stock

Price

$79.99

Loading Updating cart...

CNC Router 400W Air Cooling Spindle Motor ER11, Mach3 PWM Controller, 52mm Mount

Product Description

This is a test cut using KL-4530 Router with 400W air spindle, Mach3 PWM control

Spindle Motor:

  1. Work voltage: 12-48VDC
  2. Rotation speed: 3000-12000r/min
  3. Power: 400W
  4. Torque:500mN.m
  5. Insulation resistance:>2Megohm
  6. Dielectric strength:400V
  7. Motor Length : 186mm
  8. Diameter:52mm
  9. Axis collet Length: 48mm
  10. Diameter of Axis collect holder:16mm
  11. Repeat accuracy: 0.01-0.03mm
  12. ER11 collect: 3.175mm
Wide voltage PWM DC brush motor speed controller：
  1. Applies to DC12-60V low voltage permanent magnet brushed DC motor
  2. Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)
  3. Control mode

A: Default potentiometer control (5K-100K),defaults 10K;

B: MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-           10KHZ, suitable for MACH3 spindle speed control.
4. Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift).
5.soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.6.Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W7.Dimensions: Length 75mm * Width 75mm * high 42mm 8.Pulse width modulation range: 0% -100%
 Note:
When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode).

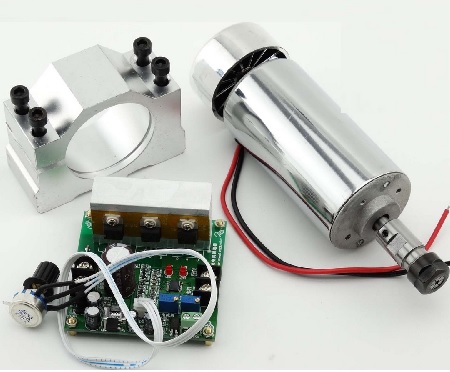

Package Content：
  • 1 * 400W spindle motor with with ER11 3.175 collet
  • 1 * Mach3 PWM speed controller
  • 1 * Mount bracket with screws

One year manufacture warranty

if we do not have it in chicago office, we will ship from our China office,

It takes about 10 days

B064-3
