CNC Router Rotational Axis, the 4th Axis

Product in stock

Price

from $329.95

Loading Updating cart...

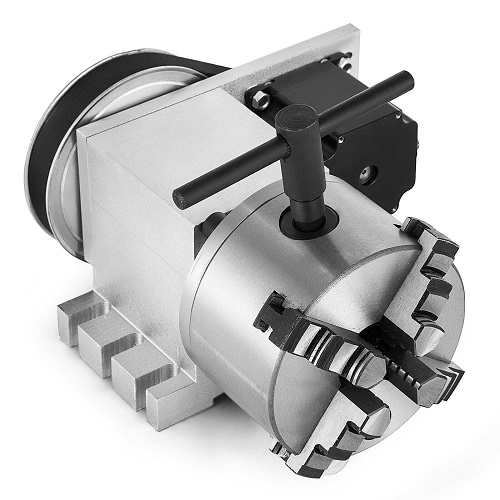

CNC Router Rotational Axis, the 4th Axis

Product Description

CNC 4-Axis Router Rotational Claw DIY CNC Tool Engraving Machine

 Specifications:

3 Claw middle to bottom 55 mm
Machine Dimension Height 105mm X Width 175mm
3 fingers Claw Chuck Size 80mm or 100mm  Diameter 3 fingers
Frame Material Aluminum Alloy 6061/ 6063
Bearing 2 bearing type
Concentric Rotational tolerance ~0.1mm
Stepper Motor 3A 57type 1.8 Degree Stepper Motor (Brand New)

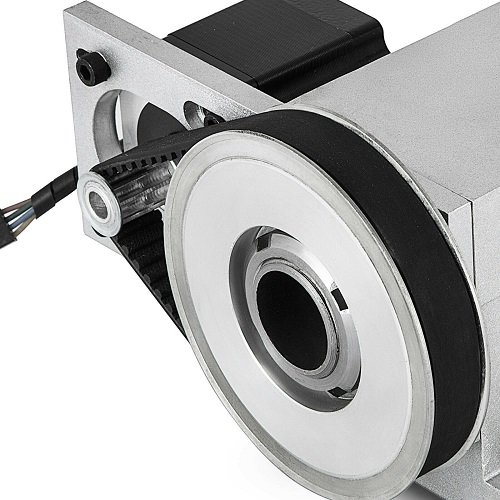

Pulley Belt Ratio: 1:6, 12 teeth to 72 teeth
Weight 7KG

CNC Engraving Router Rotational Axis,4th A Axis, 3-Jaw Claw 80mm or 100mm Chuck:

Feature:

  1. Stepper motor type: 57 stepper motor 3A2 phase 4 wires
  2. Chuck type: 80mm or 100mm 3 claws centering chuck
  3. Step Angle: 0.3degree/step
  4. Center height:55mm
  5. Total height: 105mm
  6. Total length: 220mm
  7. Reduction ratio: 6:1
  8. Synchronous belt5M 350
  9. Pass hole dia - 22mm

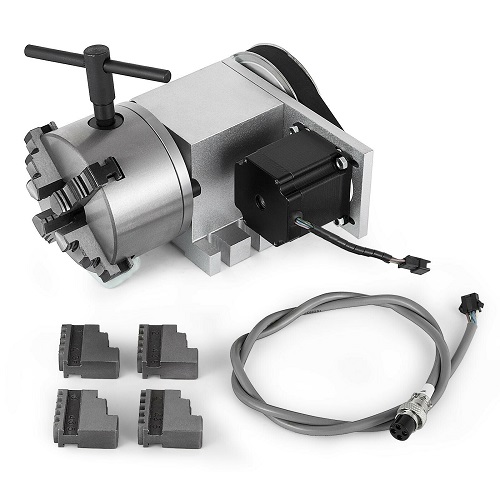

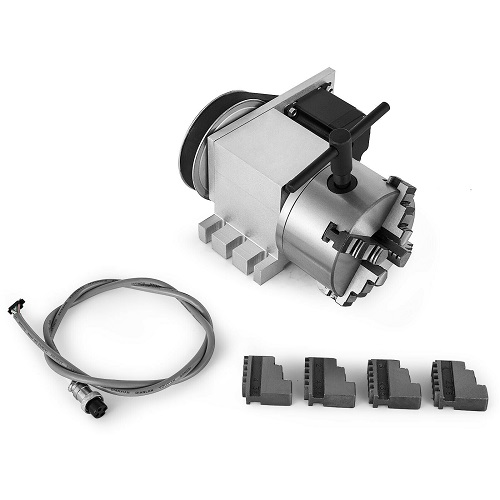

Package Content

  • 1 x 3A 57 Stepper Motor,
  • 1 x 100mm 3Jaw Chuck,
  • 1 x Holding Aluminum frame,
  • 1 x Belt
