E-stop Switch

E-stop Switch

Product in stock

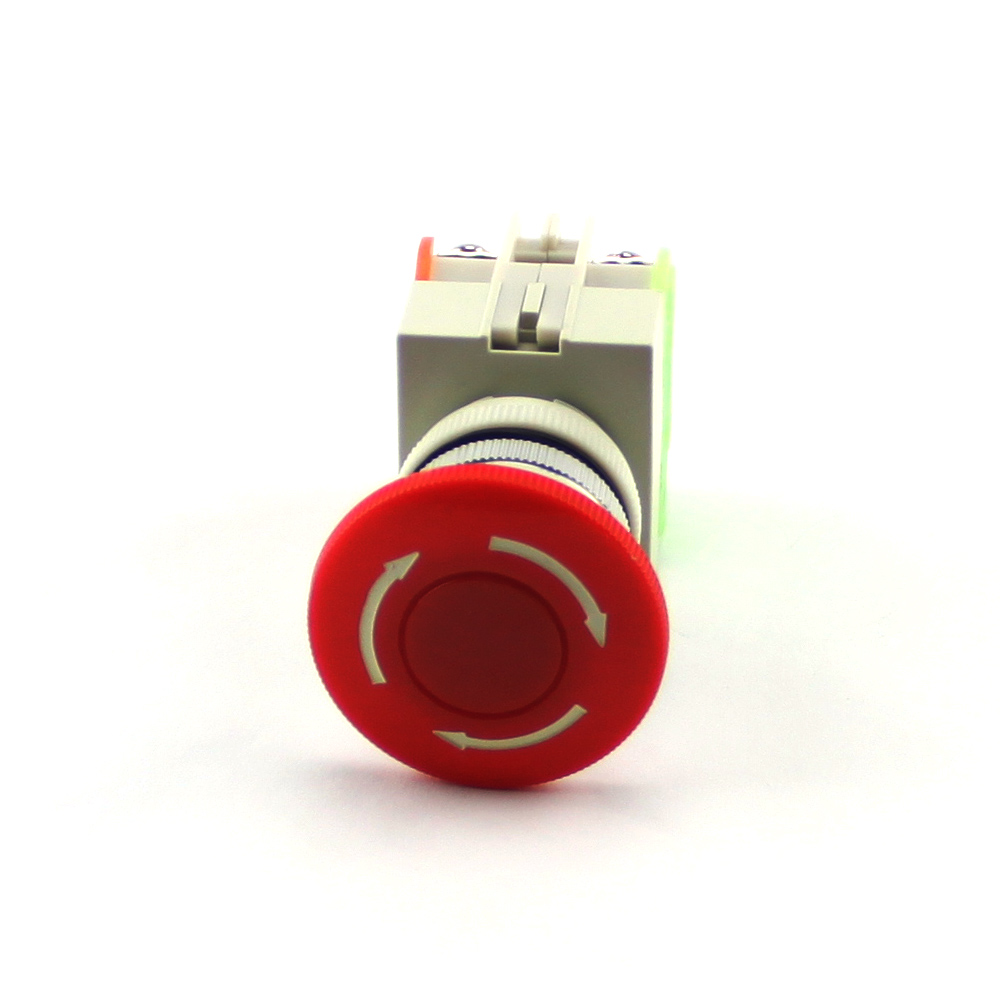

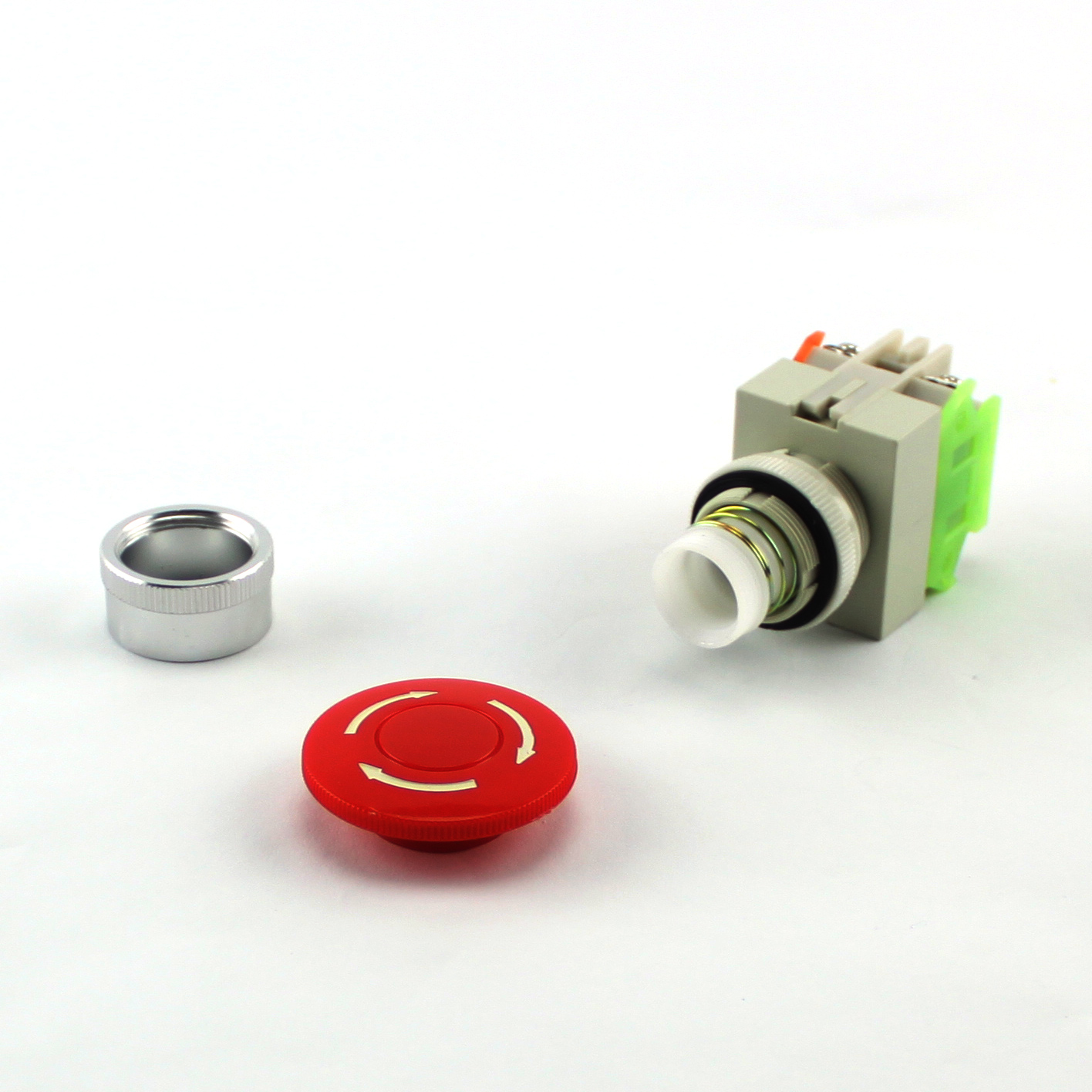

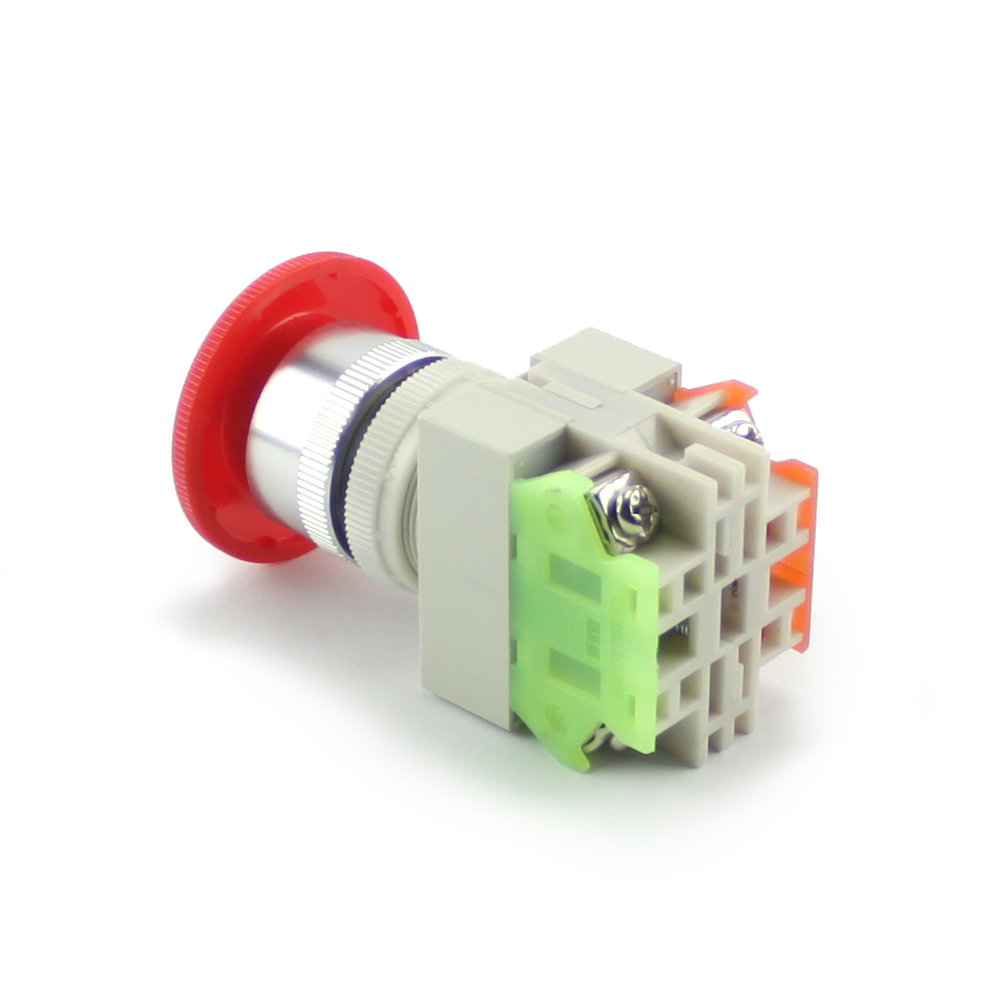

This large, high quality 'normally closed' e-stop switch can be the difference between a quick shutdown and a run-away machine. Devices of all size can benefit from the addition of a safety shut down switch. This particular e-stop is push-to-open and can be released by rotating the top 1/2 turn, until it pops back up to the operation position.

Price

$9.95

Loading Updating cart...

E-stop Switch

Product Description

Brand New

  • Product Name: 22mm Emergency stop button; Action Type: Latching; Contact Type: 1 NO + 1 NC; Poles: DPST;  660V; Max Current: 10A; Terminals Quantity: 4 Pins
  • Button Diameter: 1.6"(40mm); Mount Hole Diameter: 7/8"(22mm); Fit Panel Thickness (adjustable): 15/64"(6mm)(max.); Size: 2.4" x 2.8"/60 x 70mm (Max.D*H); Cap Lamp: Red; Material: Plastic, Metal
  • Application: E-stop push button is widely used to control electromagnetic starters, contactors, relays, and other automatic control circuits.
  • Color: As Picture Shown; Weight: 92g; Red Mushroom Cap 1NO 1NC DPST E Stop Button with 22mm Yellow Emergency Stop Warning Circle
