KL-1325 CNC Machine  98.4″ x 51.2″, T slot, Vacuum Table, Rack/Pinion with Ethernet Connection
Sale!

KL-1325 CNC Machine 98.4″ x 51.2″, T slot, Vacuum Table, Rack/Pinion with Ethernet Connection

Product in stock

Price

$10,989.00 $9,499.00

You save: $1,490.00! (13.56%)

Loading Updating cart...

KL-1325 CNC Machine 98.4″ x 51.2″, T slot, Vacuum Table, Rack/Pinion with Ethernet Connection

Product Description

Pls contact us to quote the shipping fee according your address

You can come to our show room to check the machine. or call us at 847-984-0882 for any question. You do not need anything to start up your job

USA Tech Support: 847-984-0882

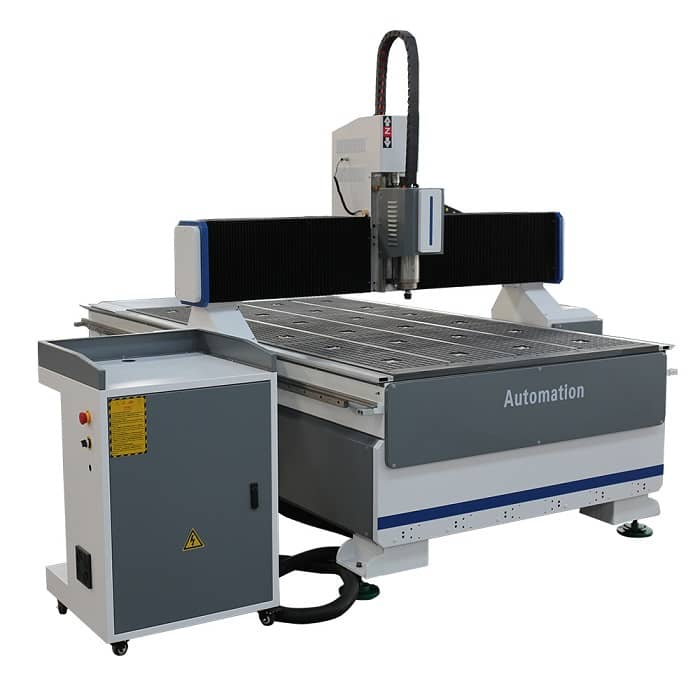

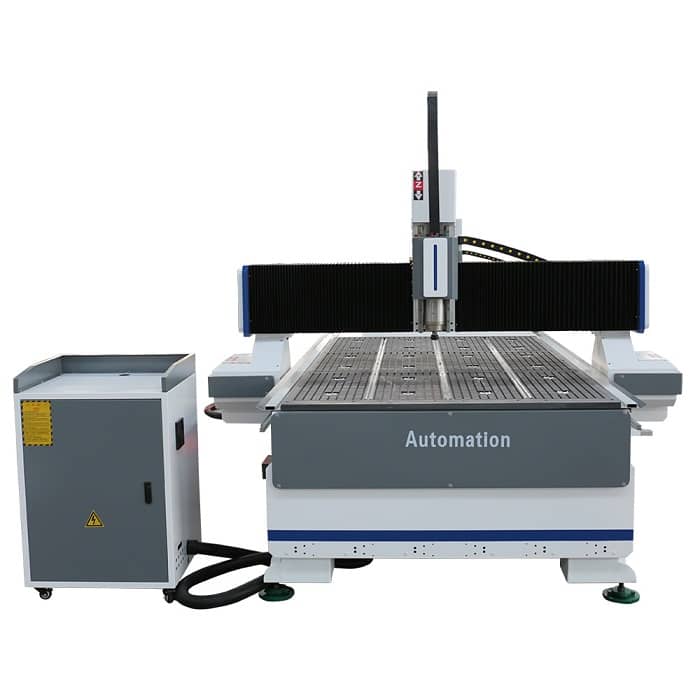

1:  Brand New CNC Router Engraving  Machine ,T slot, Vacuum Table, Rack/Pinion

2: 3 .2 KW Water Cooled Spindle + 3.2 KW 400Hz Variable Frequency Driver

3: We changed this Machine to Mach3 or 4 Control , DB25 Breakout board with Relay and  Spindle control with Ethernet Connection. You can use 32 bit or 64 bit connection. Ethernet Board: Mach3 or Mach4 ESS board

4:  Mach3 Software  is not included

X,Y axis working area

1300mm*2500mm (51.2" x 98.4")

Z axis working area

200mm ( about 8")

Table size

1440mm*3000mm

Max. speed

14m/Min

Max. working speed

12m/Min

Working accuracy

0.01mm

Repositioning accuracy

0.05mm

Feeding height

120mm

Command code

G code

Software

working with Mach3 software  with  Windows 64 or 32 bit

Working power

4000W

Working voltage

AC220V/50HZ/60HZ

Spindle power

3.2 KW

Spindle running speed

0-24000

Spindle Power Motor: 3.2KW, Water-Cooled, ER20 Collet Chuck

Spindle Speed: 0-24000 rpm With VFD, AC220V/50Hz/60HZ

X, Y, Z axis driver:  Stepper Motor Driver, NEMA34 Stepper Motor

X, Y Z Limit Switch

E- Stop, Z Height Probe

X Axis:   Rack Pinion

Y Axis: helical rack and pinion with 5:1 Gearhead, See Pictures

Z Axis 20m Linear Rail with 25mm Ballscrew

One year USA parts Warranty

Mach3 set up for kit and machine, Download here
Mach3 Setup (Mach3Mill.xml file) (10916)
Mach3setup (14744)
Mach3Tutorial (199558)

Start Up Procedure:
KL-Series CNC Manual (1413)

We will send you a paypal request for shipping fee difference

Size of packing: W 86"  x H 71" x L 129"

Total weight: 1650 ibs
