Product Description

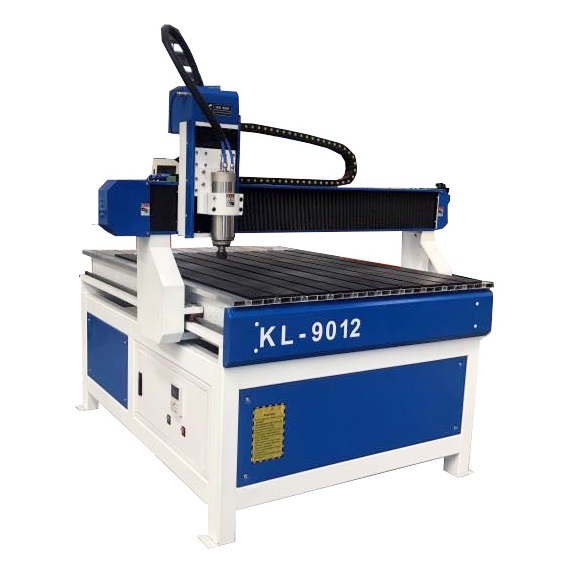

KL-9012 36″ x 48 ” CNC Router with Spindle and Relay Control,

UC100 USB Control, Controller is under the table

It has Stepper Motor and Driver, Breakout Board and works with Mach3 or Mach4, or UCCNC

Travel (X Axis)(mm): 36″ Travel (Y Axis)(mm): 48 ”

Table Size(mm): (36″ x 48 ” )

Working Area: 36″ x 48" x 6”

Resolution: about 0.05 mm (X, Y, Z)

Repeatability: 0.005 inch

It has the ball screw, and shaft support

Gantry: Cast aluminum

Structure: Cast iron

Max velocity: 8m/min

Max Working Speed: 6m/min

NEMA 34 Leadshine Closed Loop Hybrid Servo driver 758 and Motor, 1128 oz in

2.2KW Water Cooled Spindle speed: 8000-24000 rmp

Single Gross Weight: 300.0 kg

Package Type: Packaging Details: Wooden case

Voltage: AC220V, Certification: CE

Weight (KG): 350 ( 770 IBS)

Wood Packing Dimension: 80" x 66" x 57"

You can run the router at

110VAC with a step-up transformer, it is not included

• 3000 WATT VOLTAGE CONVERTER TRANSFORMER

1: If you need us to help you to set up the machine,

We will use using the TeamViewer

• Click here for Setup Service

Mach3 training Video

2: if you need a MPG, check here

• Mach3 Wireless MPG

Start Up Procedure:

KL-Series CNC Manual (5262 downloads)

KL-6090wiring (2356 downloads)

You can add mach3, Mach4 UCCNC, Vcarve Pro Software or Computer

Mach3:

Fully Licensed Mach3 (Authorized), Email you license file

Mach4:

Fully Licensed versions of Mach4, Email you the license.

UCCNC :

UCCNC Control Software, 6-axis ( X,Y,Z, A,B,C) (UCCNC Control Software, 6-axis ( X,Y,Z, A,B,C))

I5 computer:

I5 CNC Computer with 19" monitor, Refurbished

I7 Computer:

i7 CNC Computer with 19" monitor, Rebuilt

Mini Industrial Computer:

Mini Industrial PC Fanless Core i7

Vcarve Pro

VCarve Pro, Current Version
