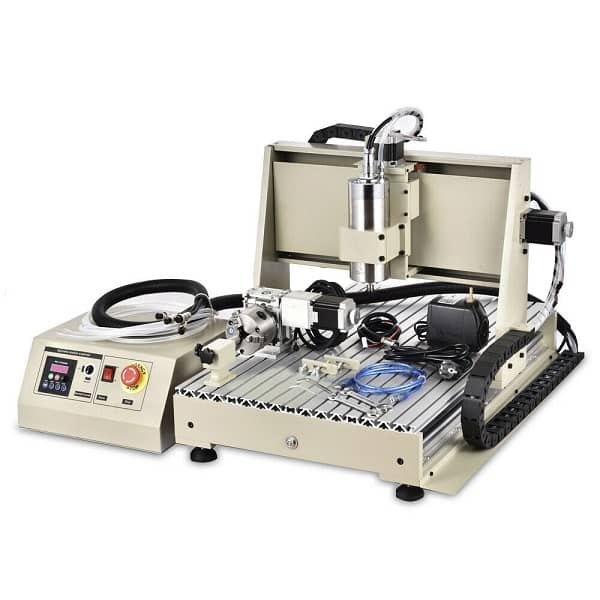

Engraving Machine Parameters:

X,Y,Z Working Area : 600(Y)*390（X）*120(Z)mm

Outside dimension : 865*680*570mm（L*W*H）

Table size : 770（Y）*490（X）mm

Lathe structure : 6061/6063 Aluminum alloy

Max. Feeding height : ≤100mm

Drive unit

X axis :1605 Ball Screws

Y axis :1605 Ball Screws

Z axis:1204 Ball Screws

Sliding unit

X axis：High intensity Chromeplate shaft

Y axis：High intensity Chromeplate shaft

Z axis：High intensity Chromeplate shaft

Stepping motor：57 two-phase 3A 150N.cm

Spindle motor
tips：
1,The spindle motor must connect with the VFD.

2,It cannot directly connect with the supply voltage (AC110V).

3,Please don’t change the data setting of the VFD if you are not professional technicians,

or it might damage the spindle motor.

Outside dimension：65*158mm

Material：304 stainless steel，Copper coil，Pressure cast aluminum pipe water jacket

VOLTS，current，power： AC110V/60Hz，5A,1.5KW VFD

Spindle speed : 24000 rpm

Max working frequency : 400Hz

Principal axis collet: ER11collet，Standard configuration :6mm

Nut Model:ER11-A

Cooling:Water-cooling

Speed mode:By adjusting the VFD output voltage and operating frequency

from 0-24000RPM

Lubrication way: lubricated by high grease

Repeat accuracy:0.05mm

Spindle precision:radial beat acuities 0.03mm

Carving Instructions: G code

Communication interface:through USB connection with computer

Maximum Idle speed:1500mm/min
Working Speed :50-1500mm / min (different material with different speed settings)

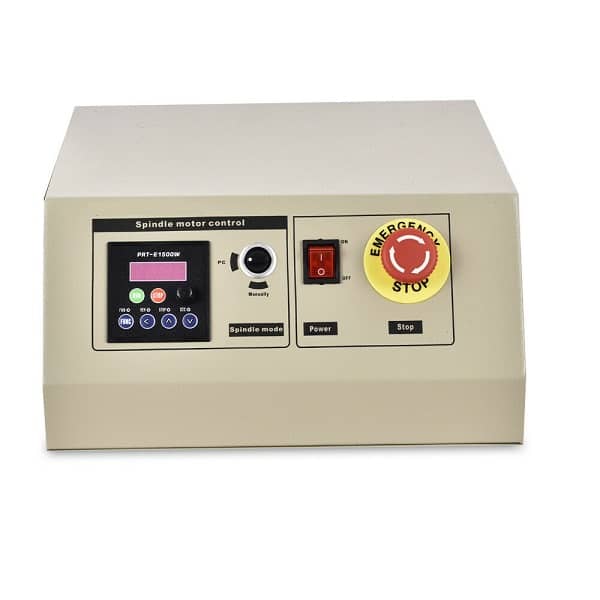

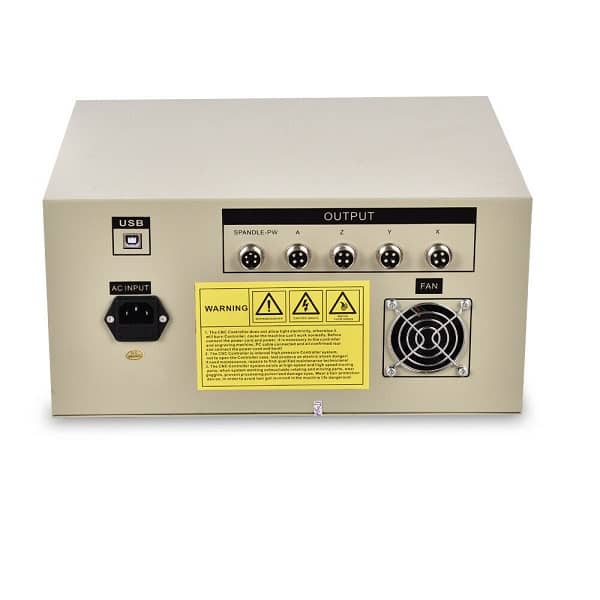

Control Box Parameters:

Operating Voltage:AC110V

Control unit:Toroidal transformer + PWM power supply module + TB6560 stepping motor drive

Computer connection:USB port

Command code:G code

Protection:Emergency stop button

Feature:

1,The NEW 1.5KW water-cooled VFD is available operating for long time,which can reinforced the processing abilty of the machine and can be used to
process aluminum alloy and hard wood.
2,water cooling spindle works more stable and durable.
3, High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash,high precision,long life circle.

How to ues

1.Assembling and locating the machine on steady desk well.
2.Make sure that your computer has a 25pin parallel port output.
3. Place the contral box in a ventilated dry place where there is no dust,no moisture
4.Connecting the control box with the machine and you computer and make sure the plug will not come off.
5.Correctly connect the machine with the controller. Don't suspended the cable which connect the Spindle motor with axis(X,Y,Z,A).Otherwise, It will
damage the driver of the controller.
6.Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to
check whether the water-cooling system working well.

9. Before turn on the machine, please check all the cable and water- cooling system to make sure they are working fine.
