Product Description

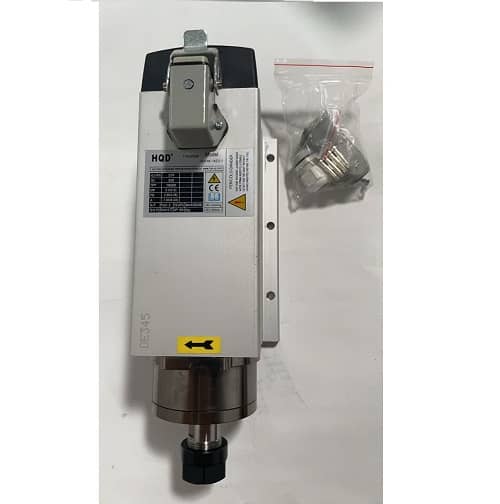

2.2 KW ( 3HP) AIR-COOLED SPINDLE, Square with Flange

FOUR BEARING

Parameter:

1)  Bearing: 2 x C7005C P4/1 x 6002V P5

2) Power: 2.2 KW

3) Voltage: 220V

4) Frequency: 300 Hz, Current :7.8A,

5) Speed:  18000 R/min

6) AIR-COOLED

7) ER20 collet chuck

8) Runout off: less than 0.005mm

9) Grease Lubrication

Find pin number:

1 to U

2 to V

3 to W

4 and 5 is not used

about 15.4 ibs

Drawing:

2200W Square Air Cooled Spindle with Flange Drawing (6 downloads)

Performance:

Use this VFD:

click here for VFD
