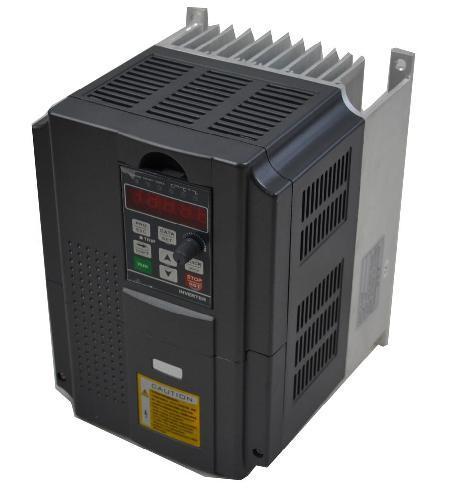

7.5KW (10HP)VARIABLE FREQUENCY DRIVE INVERTER VFD 34A

Product in stock

Price

$319.00

Loading Updating cart...

7.5KW (10HP)VARIABLE FREQUENCY DRIVE INVERTER VFD 34A

Product Description

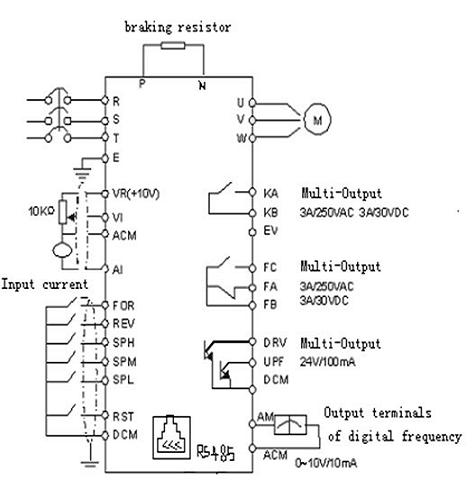

Regarding the wire connection, please connect "R" and "T" (at the inverter) to the shingle phase power supply ( connect "R" and "S" or "S" and "T" both are ok.) If you use it as three phase input, then please connect the three phase power supply to "R, S T".

"U, V, W " connect to a motor.
And the VFD need connect with the motor directly, cannot connect breaker or switch between the VFD and motor

NEW Variable Frequency Drive,  VFD
10 HP 7.5KW 34A 220V-250V
1) Input Voltage: 220V±15%
2) Output Voltage – 208-240VAC (analogous to Input Voltage)
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 OR 3 phase
6) Output Phase: 3 phase, U, V, W
7) Warranty: 1 year

PD001 = 0 (1 for external control)
PD002 = 0
PD003 = 400 ( =300 if the spindle rate is 300)
PD004 = 400 ( =300 if the spindle rate is 300)
PD005 = 400 ( =300 if the spindle rate is 300)

PD141 =  220V ( check the spindle rate)
PD142 = 11.0
PD144 = 1440 ( you can set to 2000 or 2400 it should be less than 3000)
