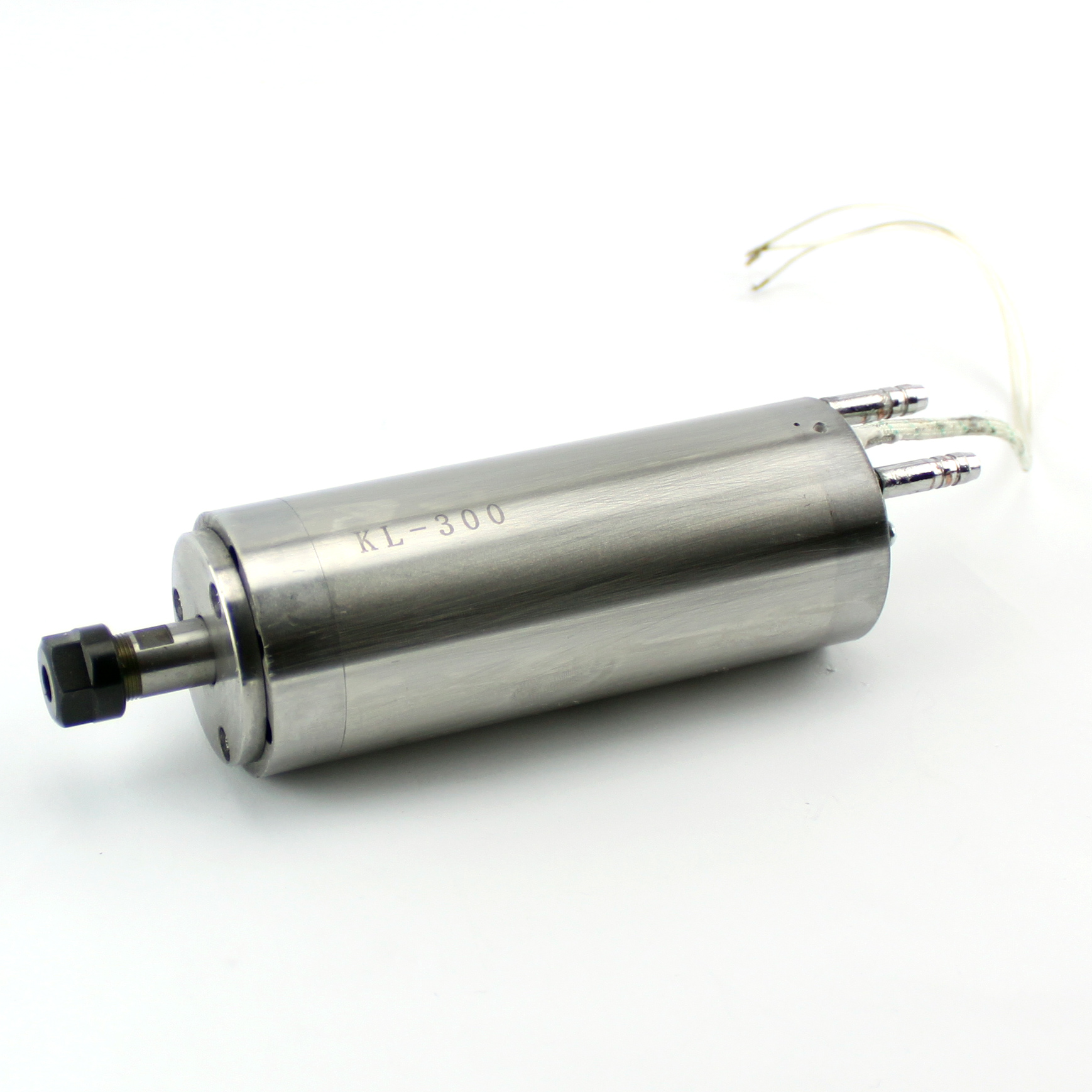

300W CNC Milling Spindle W/ ER8 Chuck (KL-300)

Product in stock

This water cooled 300 watt CNC spindle is small enough for light machines, but powerful enough to get the job done. It is good for your Jewelry cutting

Price

$289.00

Loading Updating cart...

300W CNC Milling Spindle W/ ER8 Chuck (KL-300)

Product Description



OD=48 mm x 120mm, Voltage: 75V ( pls Set your VFD max output too)

Max Speed: 60000 R/min, Suggested working speed 10000 to 50000 R/min

Power: 300 W,

Frequency: 0-1000 Hz ( set about 800HZ)

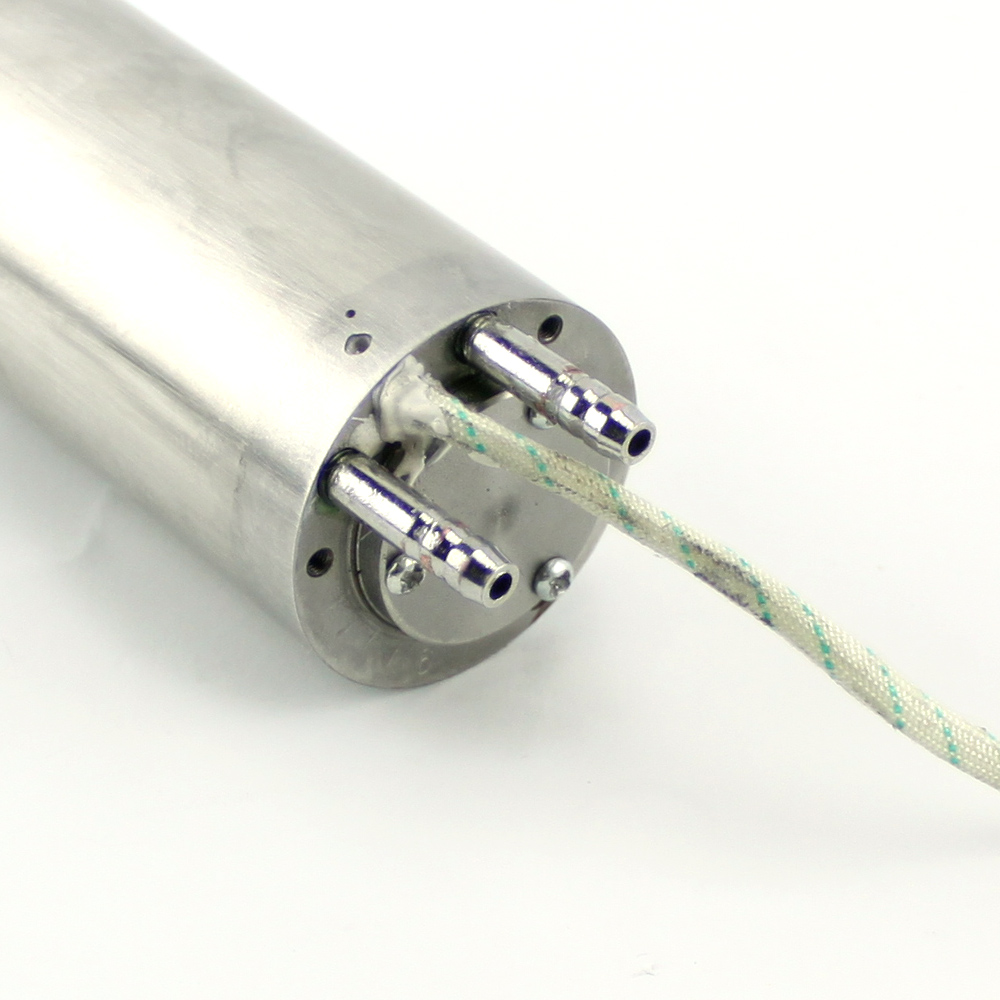

Water Cooling

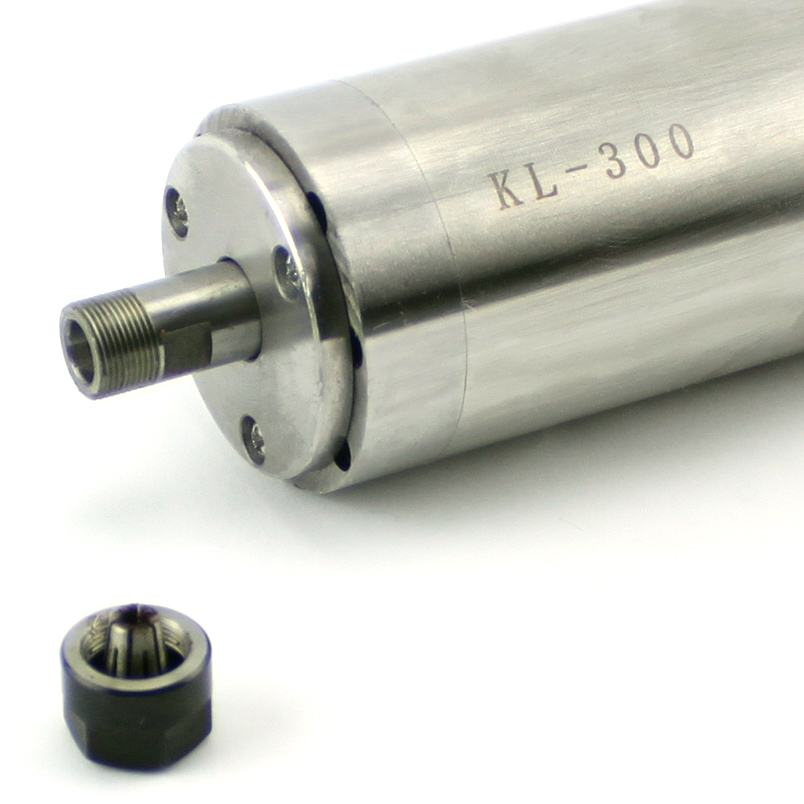

ER8 collet chuck

Grease Lubrication

Runout off: less than 0.005mm

Total Weight: 3.2 ibs

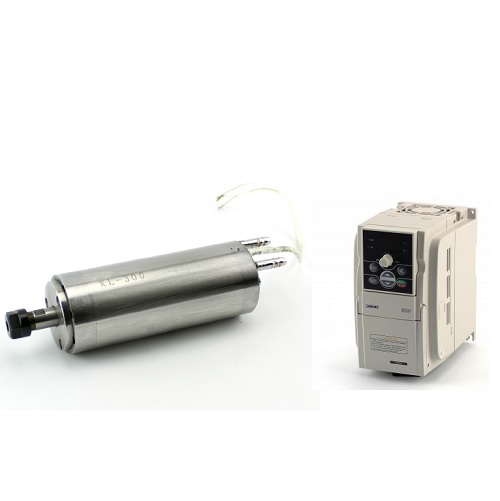

VFD is used for this spindle but not included

pls have the water running first
Set parameter
F0.0 = 3
F1.7=1
F0.2=1000
F1.8=2
F0.4= 500
F1.9=3
F0.5=10
F0.6=10
F0.11=0
F0.12=500
F0.13=75 this is very important
F1.3=500

KL-E300

Manuals & Downloads

KL-300 Spindle Drawing (117 downloads)
