4.5KW ( 5.36HP) AIR-COOLED SPINDLE, Square
Product Description

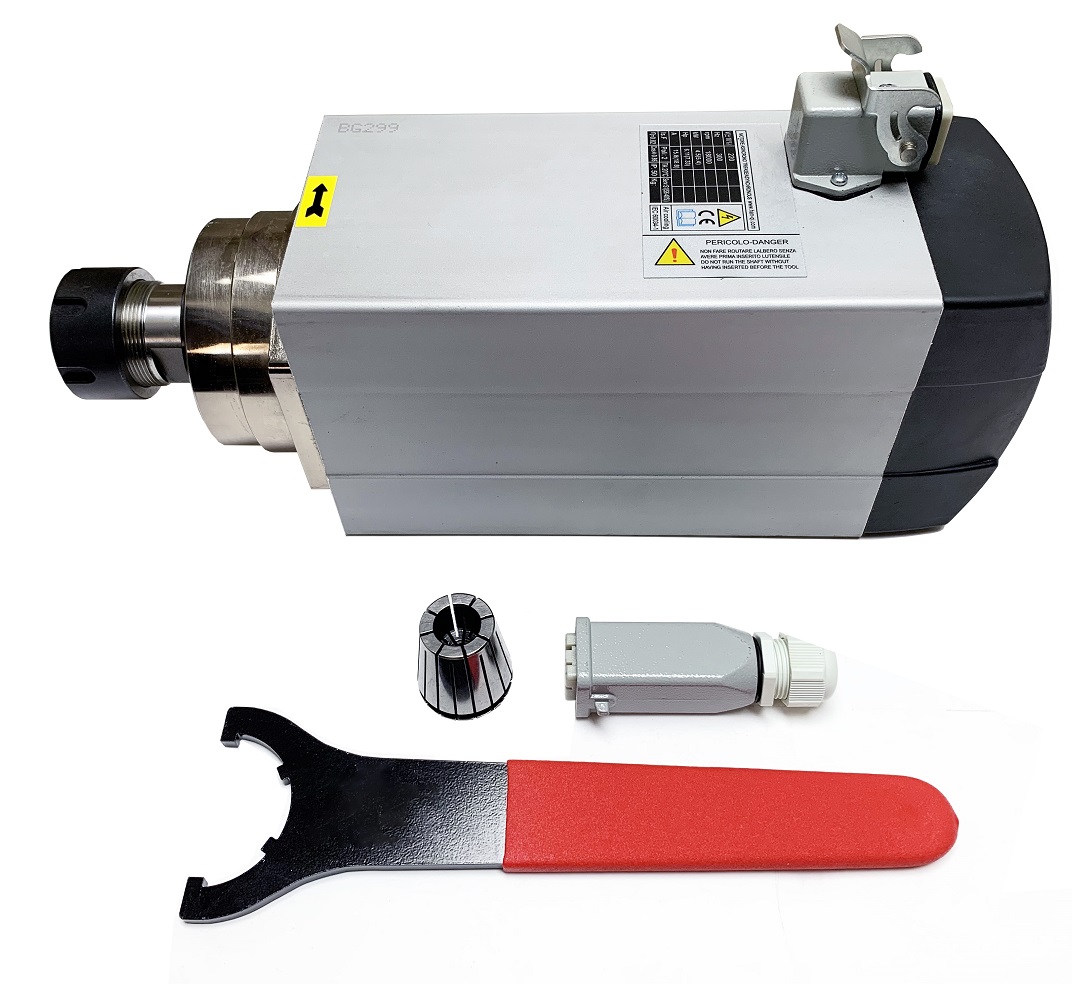

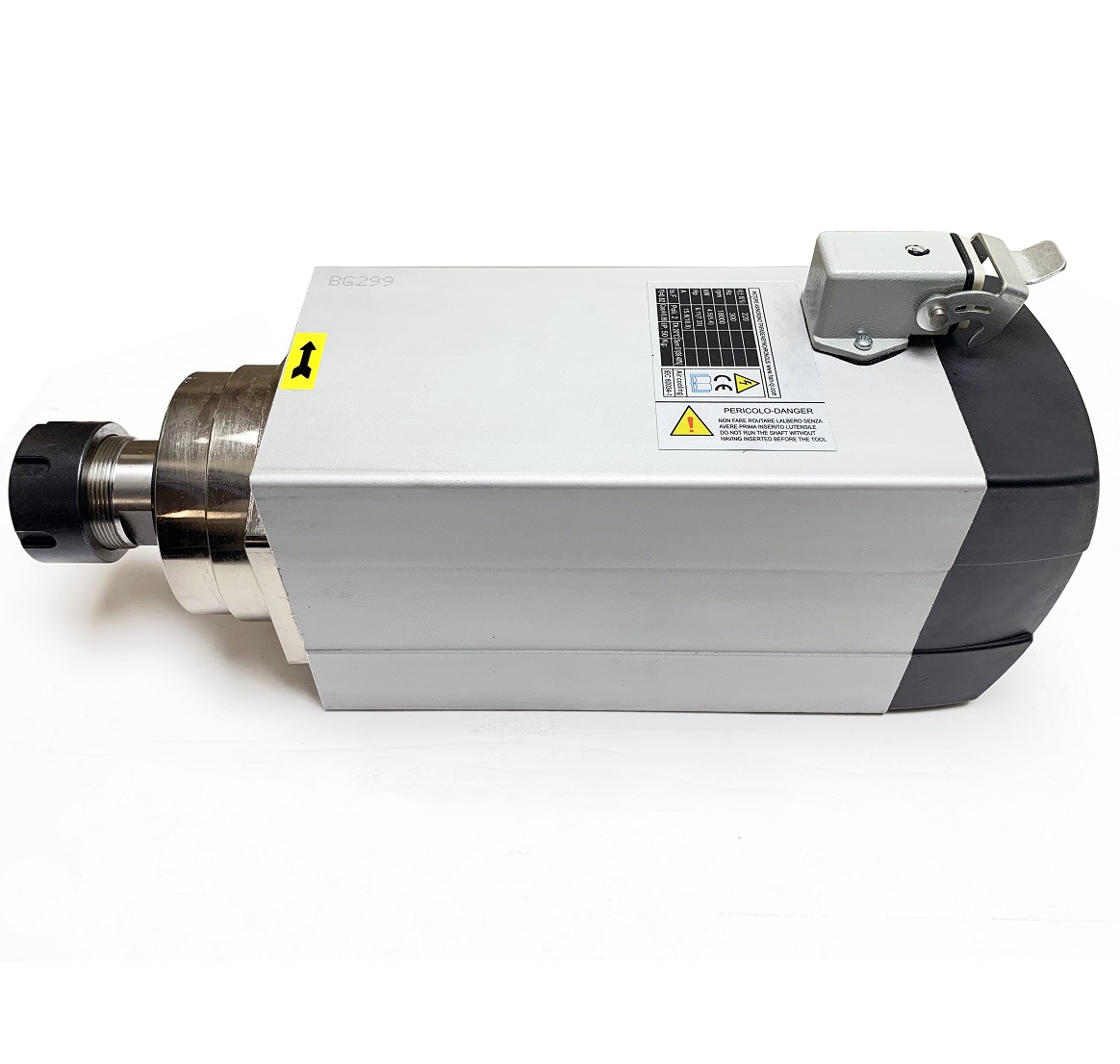

4.5KW AIR-COOLED SPINDLE
AIR-COOLING HIGH SPEED HIGH PRECISION SPINDLE
NUMERICAL ENGRAVING/GRINDING/MILLING
Adopt Japanese Imported Bearing
CE CERTIFICATION
FOUR BEARING
Parameters:
1)Bearing : 2×7008C P4 / 2×7002C P4
2) Power:4.5KW
3) Voltage: 220V, 12A
4) Frequency: 300 Hz
5) Speed: 0-18000 R/min
6) AIR- COOLED

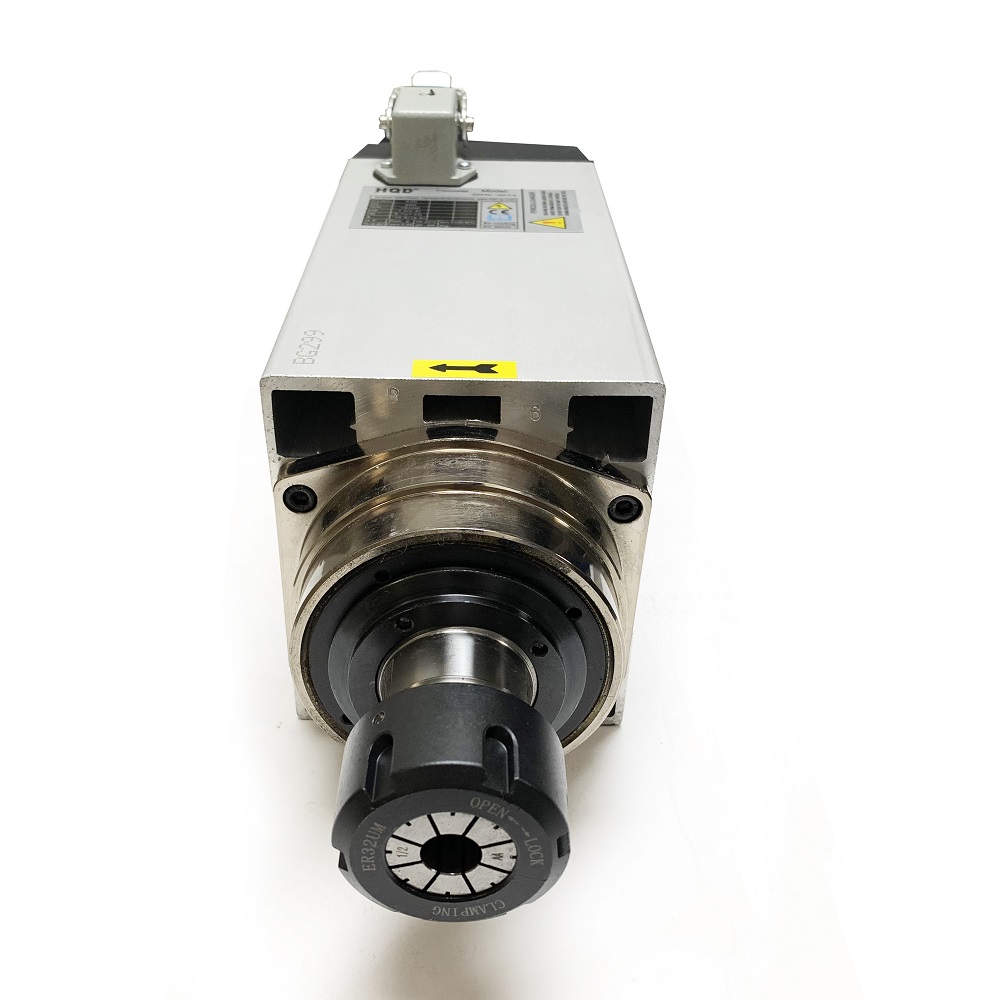

7) ER32 collet chuck ( you can use all different size of tool 1/8, 3/16"; 7/32; 1/4"; 5/16"; 3/8"; 7/16, 1/2"; 9/16"; 5/8"; 11/16"; 3/4")
8) Runout off: less than 0.005mm
9) Grease Lubrication

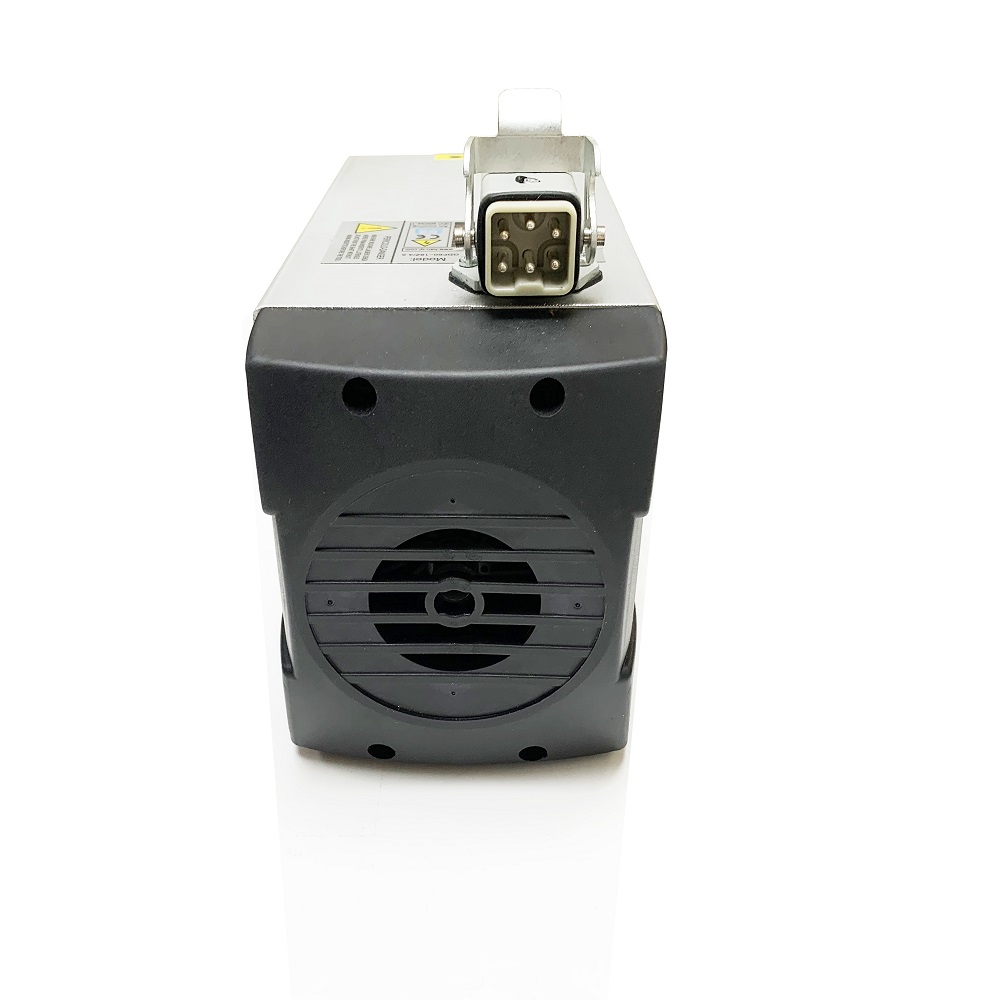

Find pin number:
1 to U
2 to V
3 to W
4 and 5 is not used
about 20 LBS
Use this VFD:
CNC VFD 220V 5.5KW 7.5HP for Motor Speed Control GT-Series (220V, 5.5KW)KL-VFD55G
Downloads:
Drawing: 4.5KW ( 5.36HP) AIR-COOLED SPINDLE, Square (531 downloads)
Torque Curve: KL-4500AS Torque Curve (169 downloads)
