C76 – UC300ETH Multifunction Board with UC300ETH Controller

Product in stock

Price

$285.00

Loading Updating cart...

C76 – UC300ETH Multifunction Board with UC300ETH Controller

Product Description

These components are included:

  • Main Board:

    1 x C76 - UC300ETH Multifunction Board
  • Driver Connection Interface:

    1 x C78 - RJ45 CONNECTION BOARD
  • UC300ETH Controller Included:

    1 x UC300ETH ETHERNET MOTION CONTROLLER

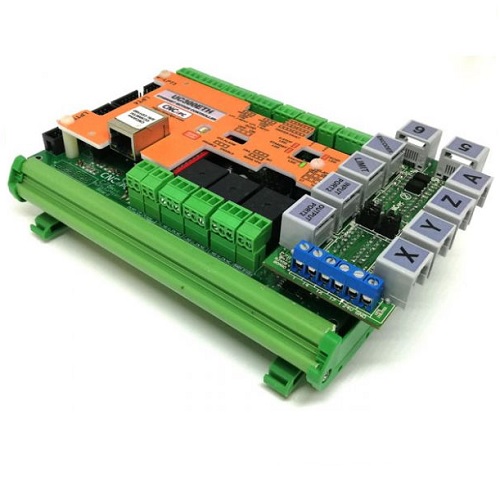

The C76 supplies full access to the power of the UC300ETH board.  It emulates 5 ports for discrete signals and a port for analogs.  It allows wiring TTL or industrial type Open Collector inputs and outputs.

FEATURES:

    • Designed for UC300ETH motion controller.
    • 3 Expansion Ports
    • Built-in PWM-Based Speed Control and Two Built-in Electromechanical Relays with NO and NC positions for spindle control.
    • Monitors E-Stop, Safety Charge Pump, Driver Fault and VFD Fault.
    • It is compatible with family of C34 connector boards that allow quickly connecting to popular drives connecting not just the step and direction signals, but also the fault and enable signals.
    • Electromechanical Relay with NO and NC positions for general purpose (Port_2 16 or 17, jumper-selectable).  If tied to pin 17 The relay will remain active while the system is active, making it ideal to control the power to the system.
    • Independent Optoisolation Circuits for each port.
    • Power terminal (10-30VDC).  This can power the entire logic of the system.
    • Outputs +3.3vdc at 24mA TTL.
    • Status LEDs on all inputs connections.
    • 18 inputs ports.
    • Flexible Driver Connection.
    • Analog I/O port pinout.

These components are included:

  • Main Board:

    1 x C76 - UC300ETH Multifunction Board
  • Driver Connection Interface:

    1 x C78 - RJ45 CONNECTION BOARD
  • UC300ETH Controller Included:

    1 x UC300ETH ETHERNET MOTION CONTROLLER

These are the steps for setting up a UC300ETH Controller

  1. Make sure the controller is connected to an Ethernet port on the PC and powered with LEDs ON.
  2. Run the UC Utility to establish the connection, set a fixed IP on the PC's LAN cad and whitelist de device on the network:http://cncdrive.com/MC/UC400ETH%20files%20for%20manual%20installation/Plugin/UCxxx_utility.zip
  3. Install the UCCNC Software: https://cncdrive.com/UCCNC.html.
  4. Copy the supplied license file into the UCCNC directory.  Make sure to modify the name to remove the serial number from the filename.
  5. Start UCCNC and it should recognize the board the board and motherboard.  It should also not be running in demo mode.
  6. If you have an installer, then close UCCNC and run the installer.  In the case of the 4 axes machine using the C76 you can use this installer: http://cnc4pc.com/Tech_Docs/UCCNC-C76-5XSD_V1.zip
  7. Restart UCCNC and do final installations, like setting motor travel, set max spindle speed, etc...
