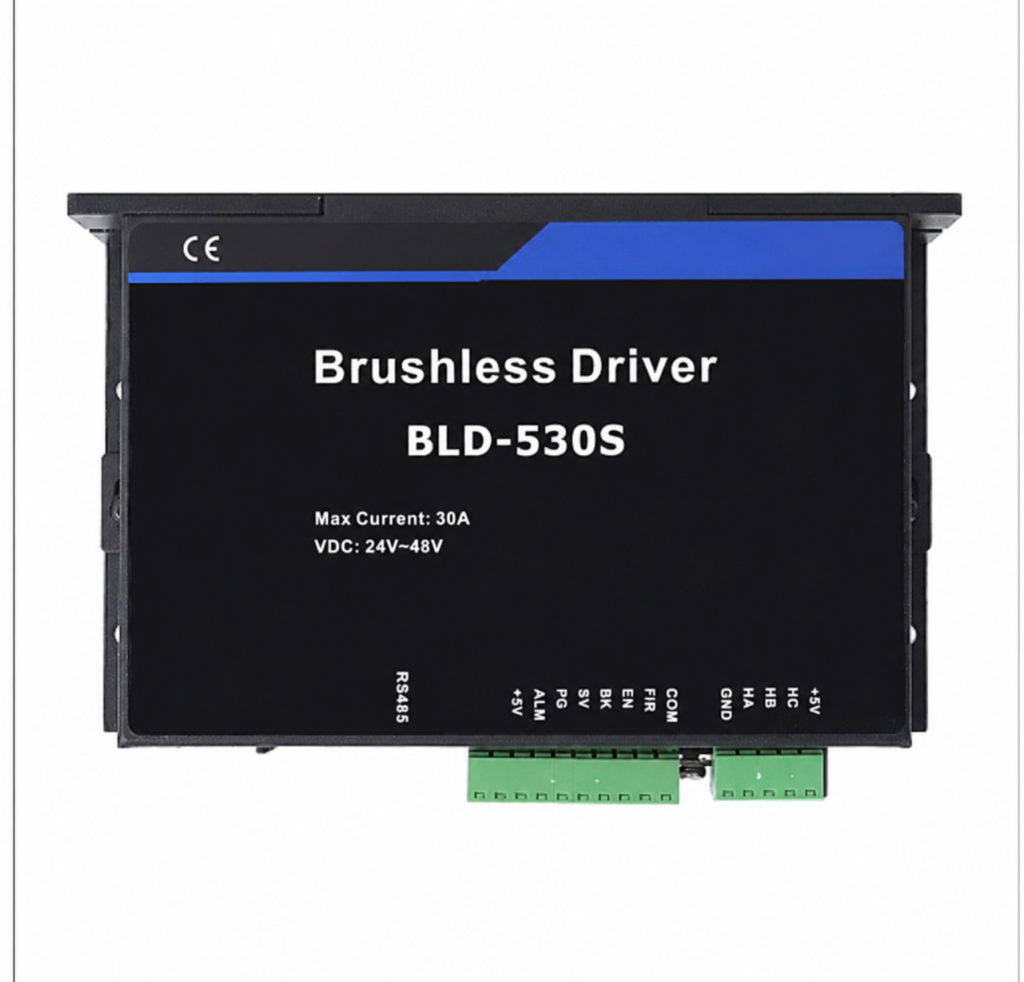

Digital Brushless DC Motor Driver 24-48VDC Max 30.0A 600W
Product in stock
Price
$89.00
Digital Brushless DC Motor Driver 24-48VDC Max 30.0A 600W
Product Description
This 24-48VDC 600W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial automatic control. It mainly uses high performance dedicated brushless DC motor driver chips, the latest IGBT and MOS power devices and adopts PWM technology. It is characterised by high integration, small size, complete protection, simple and clear wiring and high reliability. This driver is suitable for driving medium-sized brushless DC motors with a rated power below 600W.
Features
- 20kHz chopper frequency
- High performance at a low price
- Compatible with Hall and non-Hall sensors
- PID speed and current dual-loop regulator
- Support Modbus communication protocol, RS485 interface
- It has stall protection function to make the motor respond quickly
- The overload multiple is greater than 2, and the torque can always reach the maximum at low speed
- Build with over-voltage, under-voltage, over-current, over-temperature, illegal Hall signal and other error alarm functions
Electrical Specification:
|
Parameters
|
BLD-530S
|
|||
|
Input Voltage(VDC)
|
12
|
24
|
36
|
48
|
|
Continuous Output Current(A)
|
25.0
|
25.0
|
17.0
|
13.0
|
|
Rated Output Power(W)
|
300
|
600
|
600
|
600
|
|
Peak Current(A)
|
30.0
|
|||
| Operating Environment | |
| Cooling Method | Radiator |
| Humidity | <85%(No Frosting) |
| Operating Temperature | 0℃ - 45℃ |
| Store Temperature | -20℃ - 85℃ |
| Product Type | |
| Product Type | Brushless DC Driver |
| Electrical Specification | |
| Alarm Output | Yes |
| Continuous Output Current(A) | 25.0A(12VDC), 25.0A(24VDC), 17.0A(36VDC), 13.0A(48VDC) |
| Control Mode | Analog Voltage, RS-485 |
| E-STOP | Yes |
| Max. Output Power(W) | 600 |
| Operating Voltage(V) | 12DC, 24DC, 36DC, 48DC |
| Peak Current(A) | 30.0 |
| Power(W) | 300W(12VDC), 600W(24VDC), 600W(36VDC), 600W(48VDC) |
| Speed Signal Output | Yes |
| Physical Specification | |
| Inventory Method | Dedicated Inventory |
Motor Wiring with speed controller
2-Quadrant BLDC speed driver ver. 36ZWSK15-B-804 (1405 downloads)
