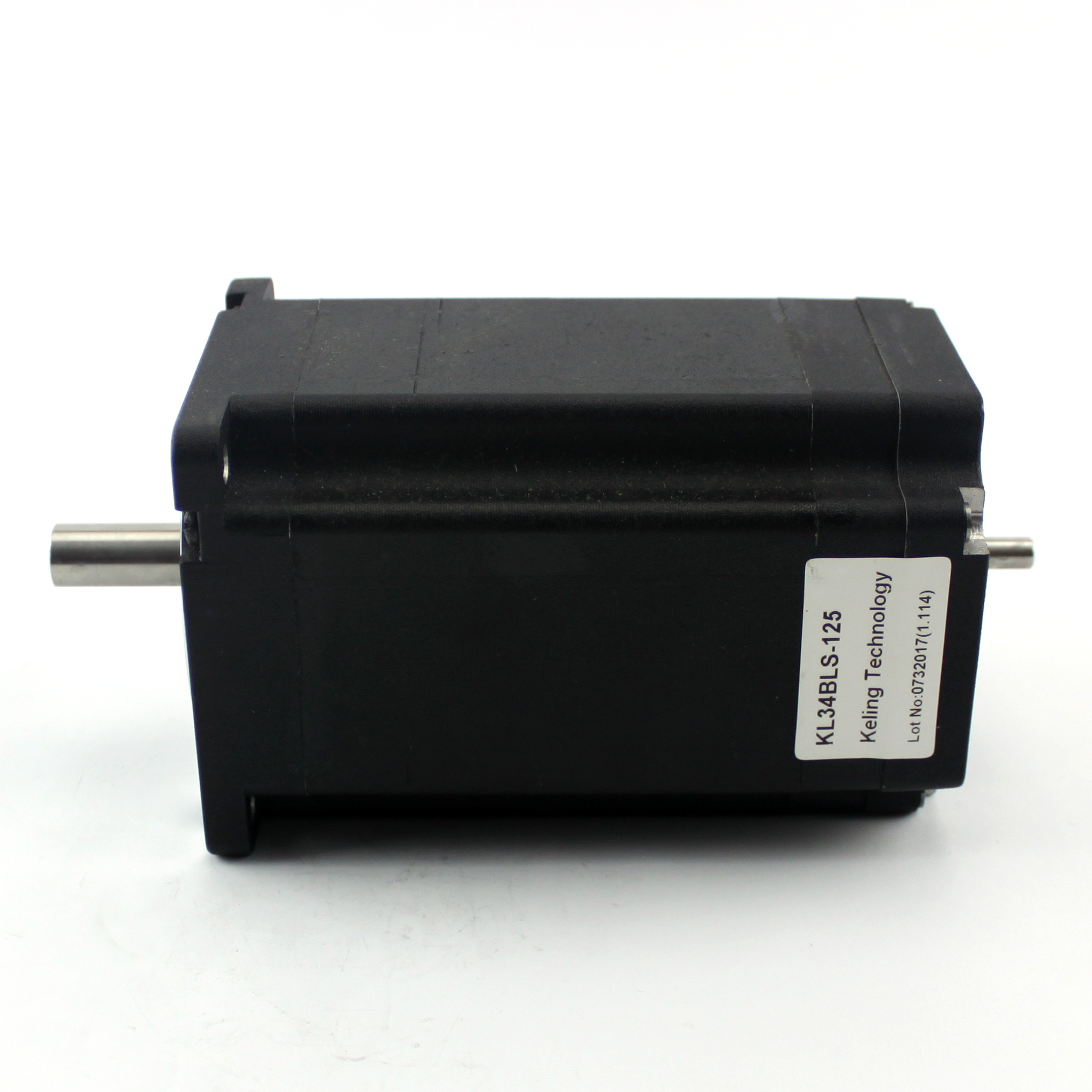

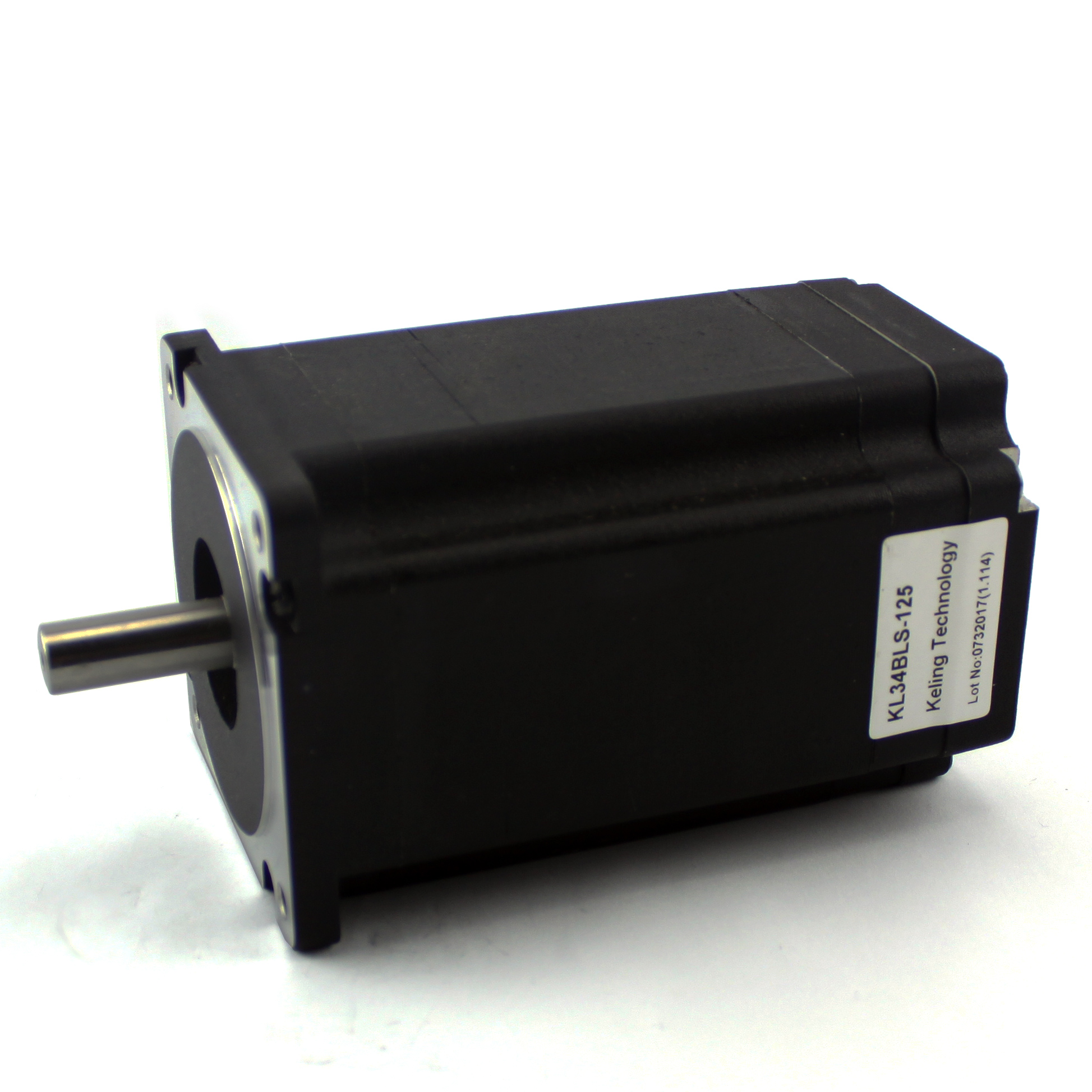

DC Brushless Motor KL34BLS-125 ( Dual shaft)

Product in stock

The KL34BLS series are standard NEMA 34 interface motors optimized for high output power and high torque density. Their high power density ratio allows a smaller size motor to be used in many applications, saving space and weight.

Price

$169.00

Loading Updating cart...

DC Brushless Motor KL34BLS-125 ( Dual shaft)

Product Description

Specifications

Number of poles :     8

Number of phase :   3

Rated voltage:        48VDC

Rated speed:         3000 RPM

Rated torque:       2.1 N.m

Rotor power:      660 W

Peak torque :     6.3 N.m

Peak current:      55 A

Line to line resistance: 0.16 ohms

Line to line inductance: 0.3 mH

Torque constant: 0.11Nm/A

Back E.M.F: 11.5 V/KRPM

Rotor inertia: 2400g.cm^2

Body length:  125mm

Mass: 4Kg

Manuals & Downloads
KL34BLS-125 (1766)
KL34BLS Motor Specification (3186)

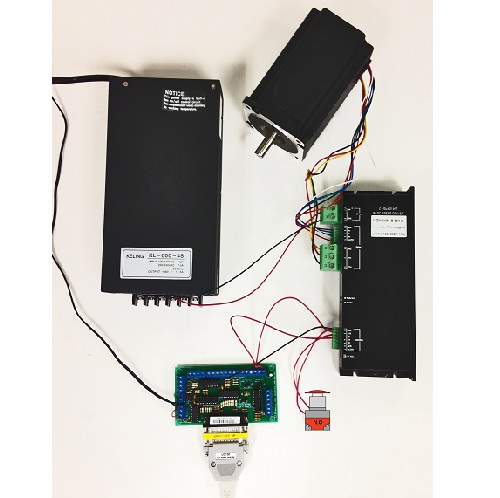

Wiring with speed controller with C10, this can be controller using Mach3

2-Quadrant BLDC speed driver125 (2721)
