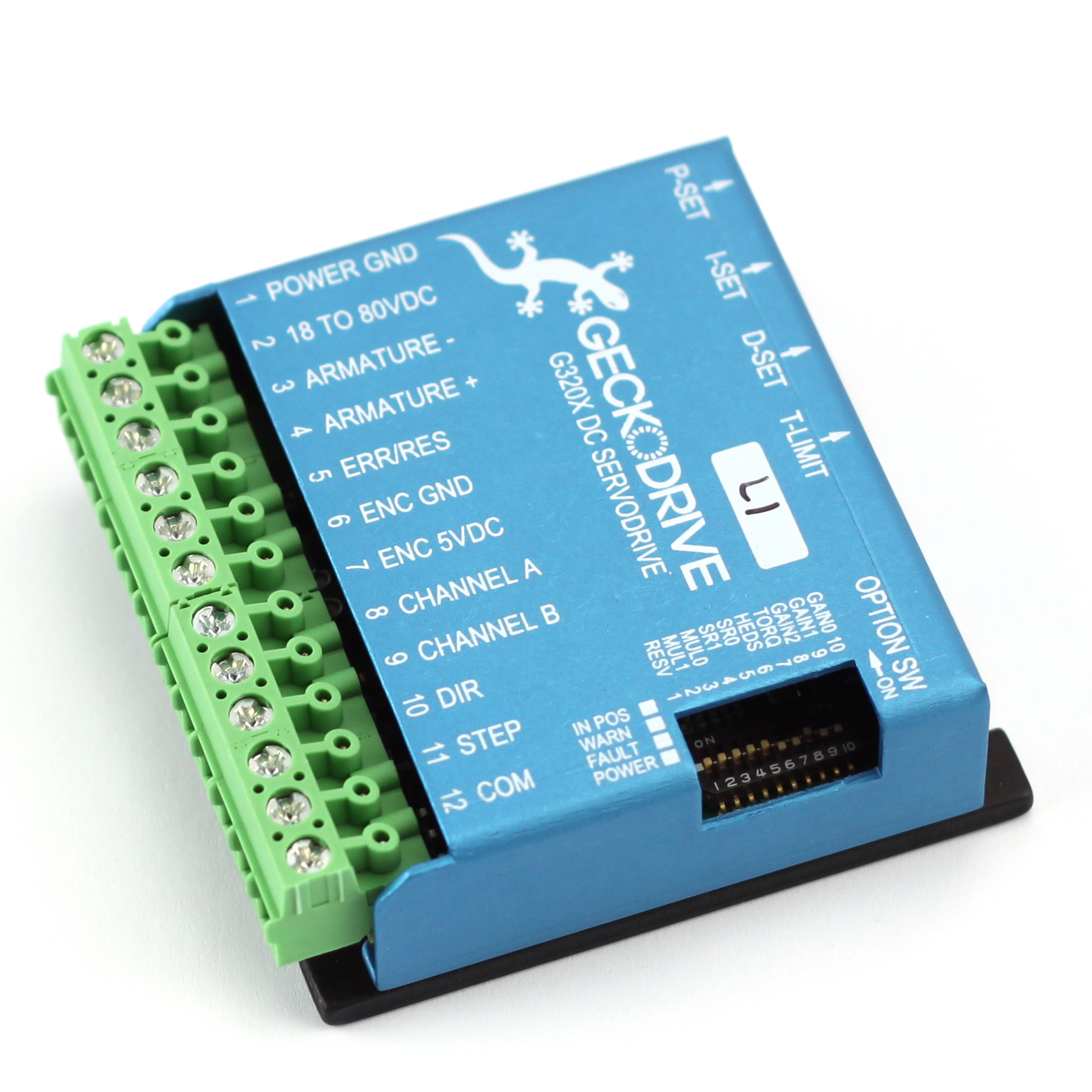

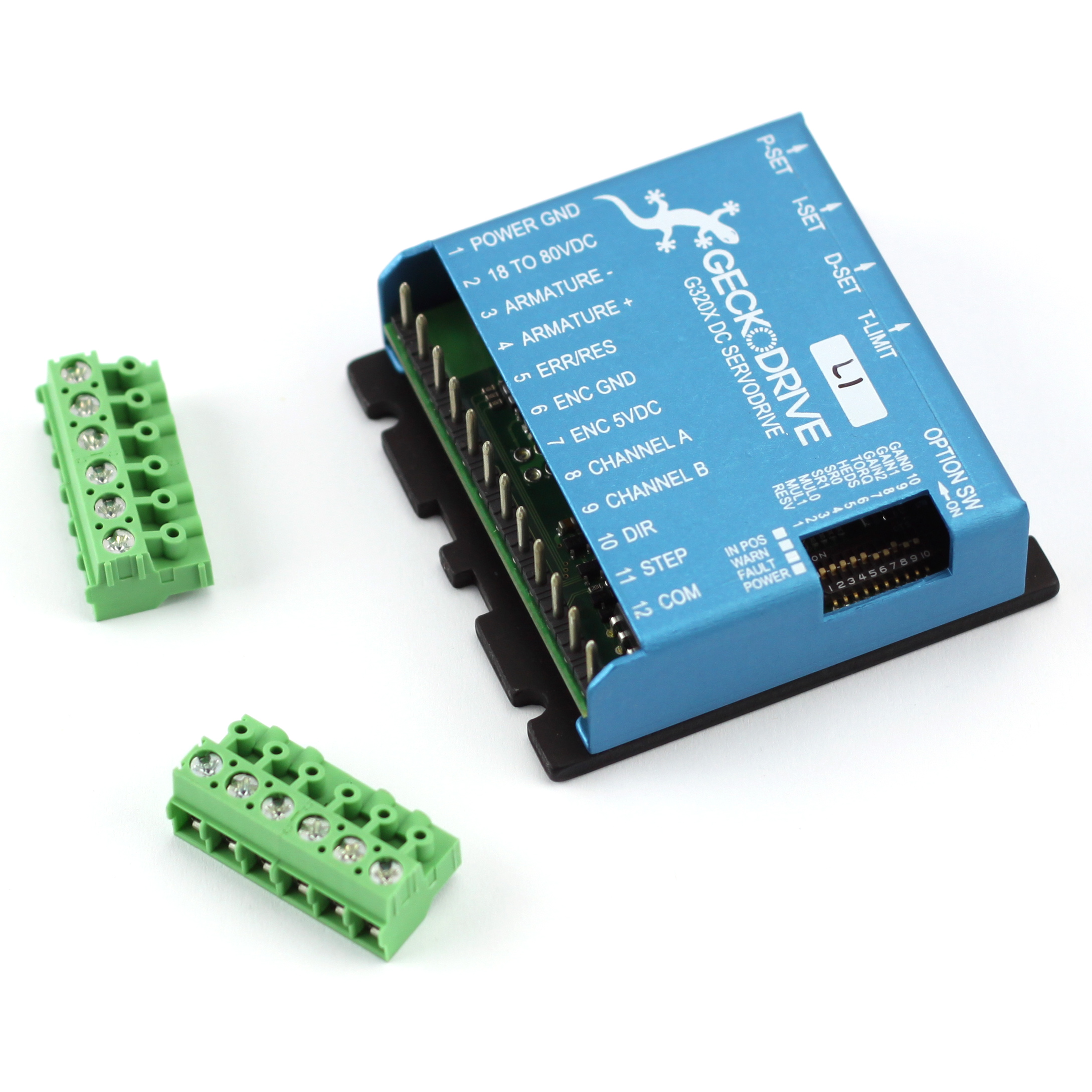

Geckodrive Servo Motor Driver G320X

Product in stock

The G320X is the newest servo drive from Geckodrive, Inc. Built around the same high speed CPLD as the G203V and offering the same bulletproof protection, the G320X is a drive that will last. It was designed as a drop-in replacement for the G320 and is 100% backwards compatible with the G320 and G340.

Price

$150.00

Loading Updating cart...

Geckodrive Servo Motor Driver G320X

Product Description

The G320X is the newest servo drive from Geckodrive, Inc. Built around the same high speed CPLD as the G203V and offering the same bulletproof protection, the G320X is a drive that will last. It was designed as a drop-in replacement for the G320 and is 100% backwards compatible with the G320 and G340. The G320X has many new features based on user requests and industrial requirements that take full advantage of the CPLD architecture.

    • Built in step pulse multiplier
    • Stall torque time limit
    • Four settable following error limits
    • Encoder fail detect
    • Short circuit protection
    • Dynamic motor braking during fault condition
    • STEP and DIRECTION COMMON can be either +5VDC or GND
    • PID trimpots with settable integral coefficient
    • IN-POSITION, WARN, FAULT and POWER indicator LEDs
    • STEP and DIRECTION is +3.3VDC and +5VDC compatible at 6mA
    • 20A 80VDC continuous operating maximum
    • PID loop closed internally
    • Quadrature encoder inputs of <1V (Logic 0) and >4V (Logic 1)
    • +5VDC 50mA onboard encoder supply
    • Opto-isolated STEP and DIRECTION inputs
    • 20kHz PWM frequency
    • Settable current limit from 0A to 20A

The G320X is the newest servo drive from Geckodrive, Inc. Built around the same high speed CPLD as the G203V and offering the same bulletproof protection, the G320X is a drive that will last. It was designed as a drop-in replacement for the G320 and is 100% backwards compatible with the G320 and G340. The G320X has many new features based on user requests and industrial requirements that take full advantage of the CPLD architecture.

Specifications (Click any underlined feature for a more detailed explanation):

Built in step pulse multiplier
Stall torque time limit
Four settable following error limits
Encoder fail detect
Short circuit protection
Dynamic motor braking during fault condition
STEP and DIRECTION COMMON can be either +5VDC or GND
PID trimpots with settable integral coefficient
IN-POSITION, WARN, FAULT and POWER indicator LEDs
STEP and DIRECTION is +3.3VDC and +5VDC compatible at 6mA
20A 80VDC continuous operating maximum
PID loop closed internally
Quadrature encoder inputs of 4V (Logic 1)
+5VDC 50mA onboard encoder supply
Opto-isolated STEP and DIRECTION inputs
20kHz PWM frequency
Settable current limit from 0A to 20A
